Data Storage - SN00.01-P-0008-04A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model all (CAR)
STAR2 and STAR3

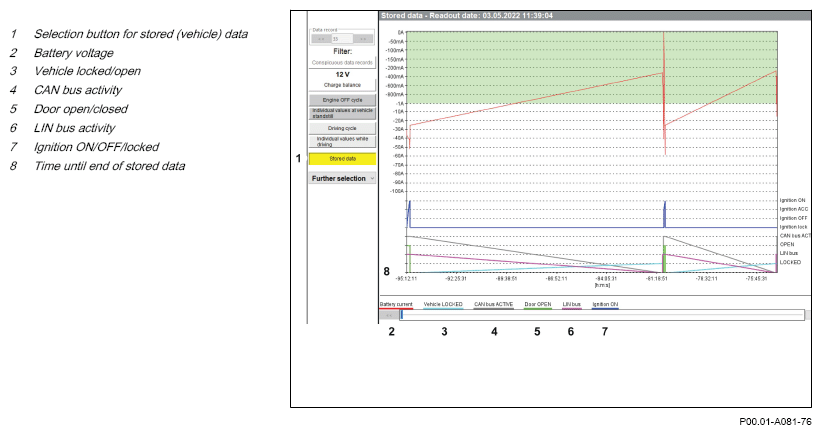

12 V on-board electrical system: Stored data
i
NOTE:
The stored data are recorded data points that were combined to create a meaningful graph. Here the current intensity, for example, does not increase (and decrease) smoothly, rather data were recorded individually and the data points were combined.
Additional recording options
- The following signals are also recorded (stored data):
- Battery current
- Level of discharge currents is evaluated.
- Level of charging currents cannot be evaluated, an entry is however made every 17 min.
- Ignition key position (circuit status)
- Lock status
- Status of doors
- BODY-CAN activity
- Battery current
- The battery current measurement is thus possible without additional devices, and the data help to evaluate the quiescent current.
- The data points are recorded dynamically, i.e. in the case of frequent events more data points are also recorded (e.g. current fluctuations)
- The more data points that are recorded the lower the recording time -> can vary between 30 min and 5 days.
