Body And Components Of 12 V On-Board Electrical System - SN00.00-P-0070-13S

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model all (CAR)

Courtesy of MERCEDES-BENZ USA

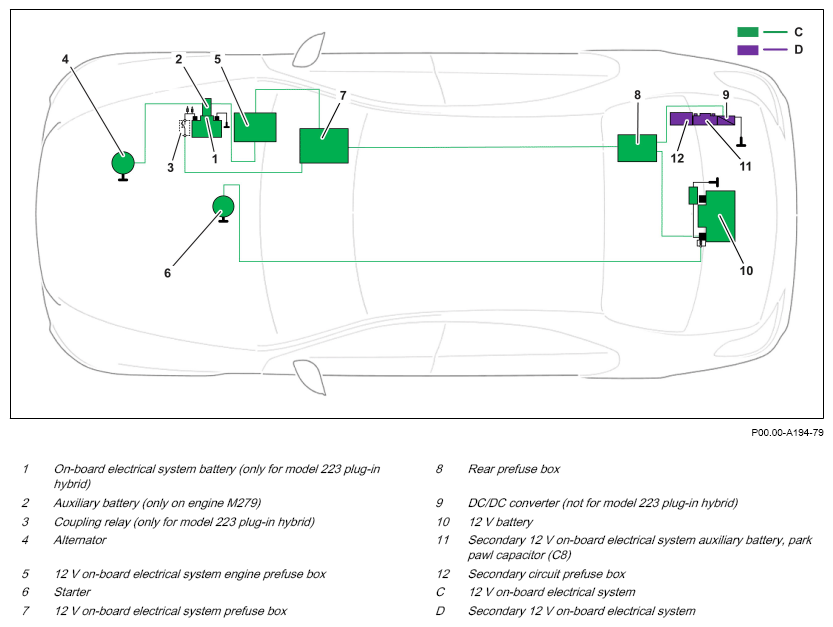

Shown on 12 V on-board electrical system, shown on model 223

The variant with 3 batteries is only available in the model 223 in combination with engine M279 and code 200 (highly automated driving) or code 503 (remote-controlled parking).
