Function Schematic, Fold In Outside Mirrors - PE88.79-P-2500-97A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 167, 177, 243, 247, 293 with code 500 (Electrically folding exterior mirrors)
Model 213, 238, 257, 290 as of model year 2021 with code 500 (Electrically folding exterior mirrors)
| Code: | Designation: | Position: |
|---|---|---|
| A26/17 | Head unit | 5G |
| Code 545 | Connect 5 (NTG6) | 4E |
| Code 547 | Connect 20 Entry (NTG6) | 4F |
| Code 548 | Connect 20 MID (NTG6) | 4G |
| Code 549 | Connect 20 HIGH (NTG6) | 4G |

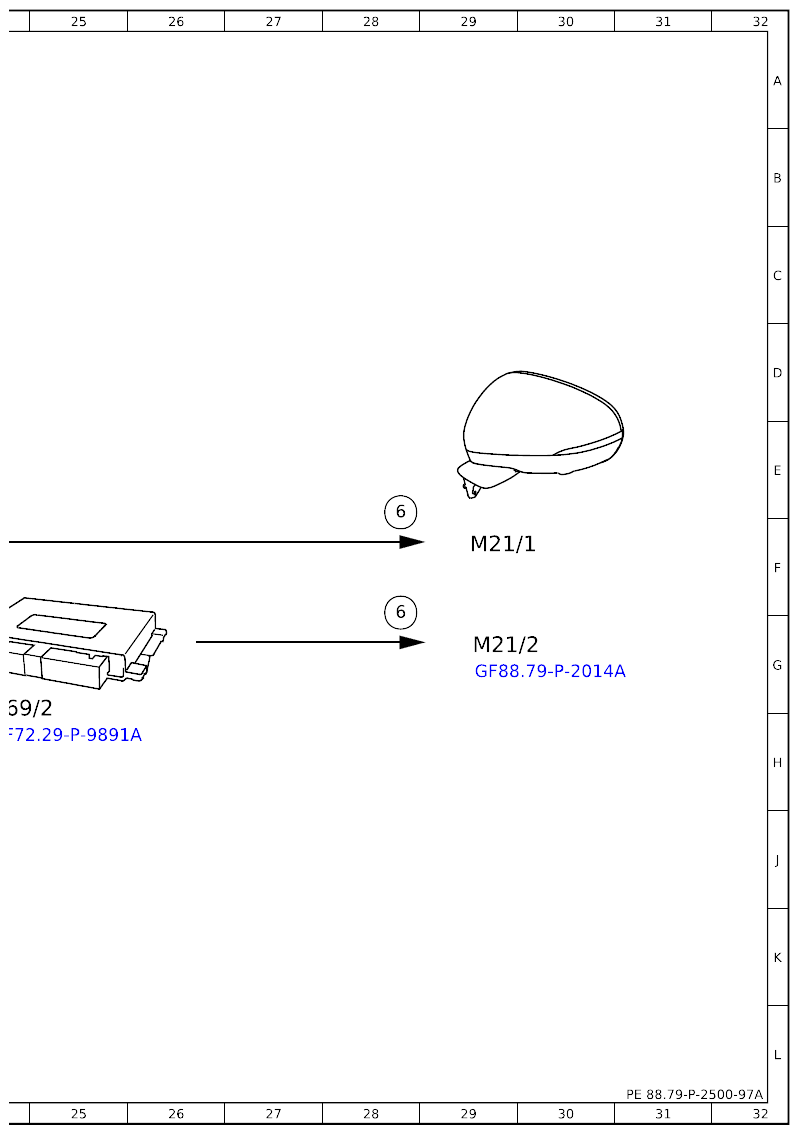

| M21/1 | Driver-side outside mirror | 29F |
| M21/2 | Passenger-side outside mirror | 29G |

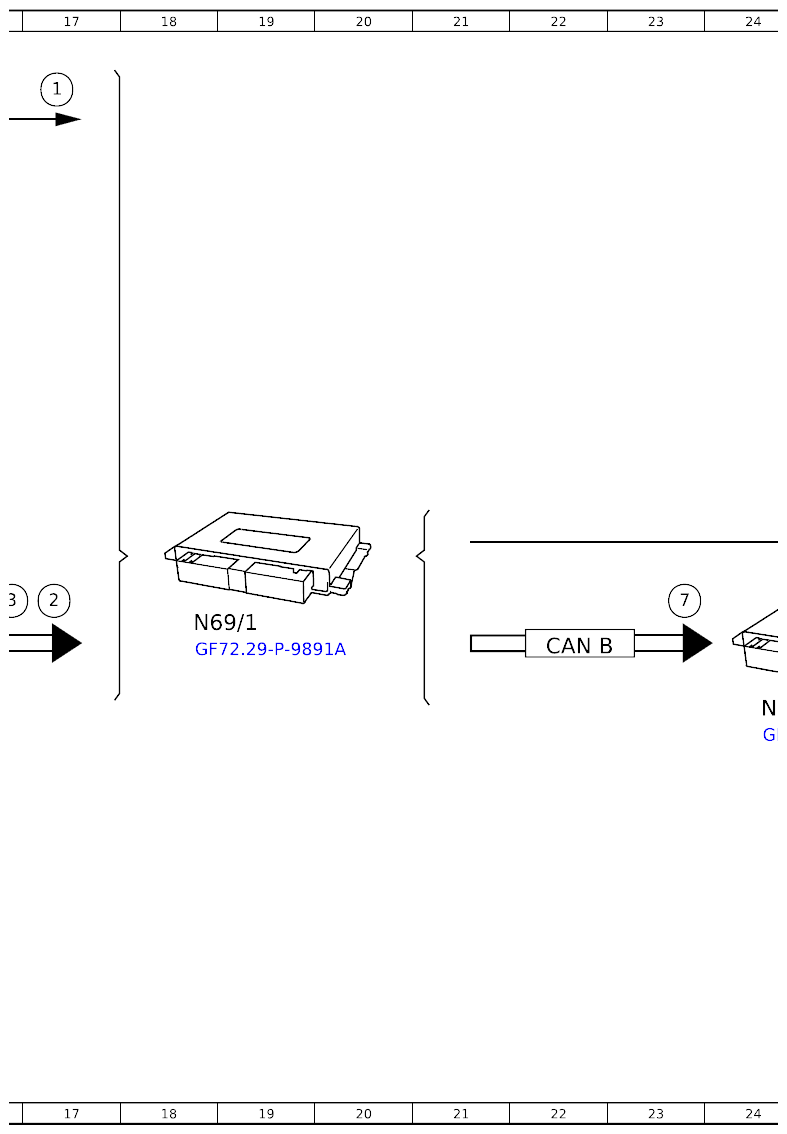

| N69/1 | Driver door control unit | 18G |
| N69/2 | Front passenger door control unit | 24H |

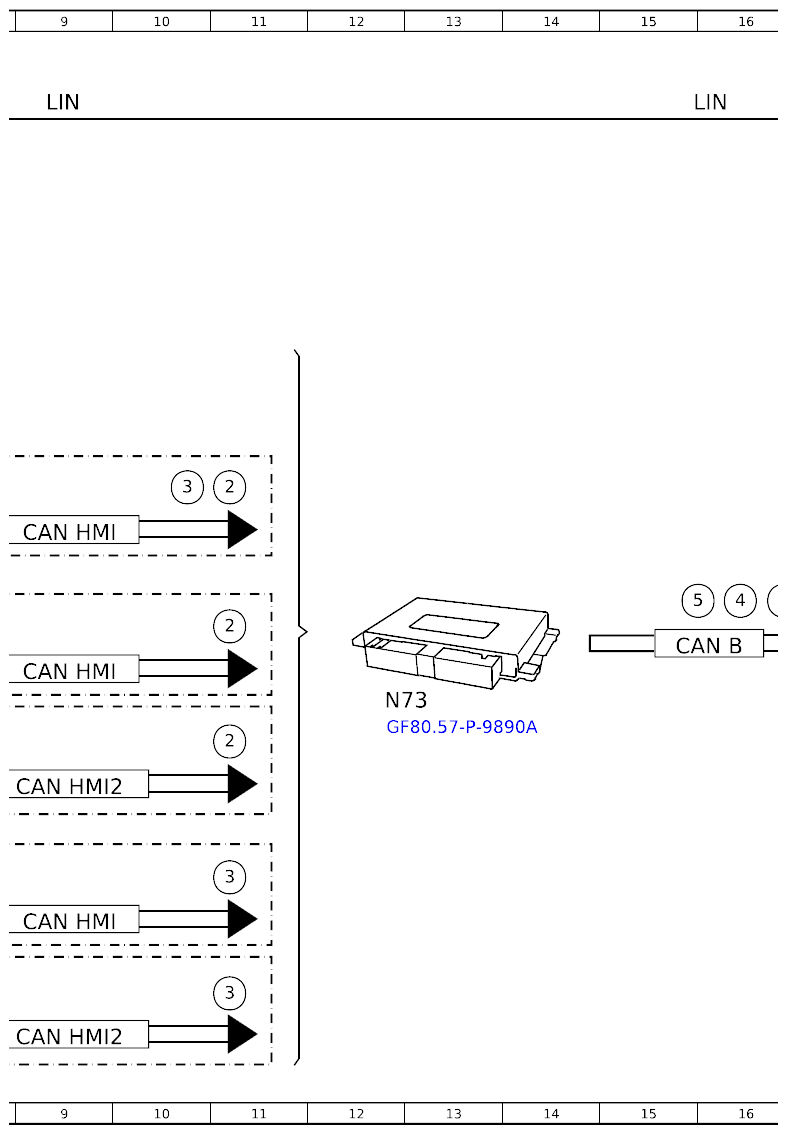

| N73 | EIS [EZS] control unit | 12G |
| N133/1 | Instrument cluster control unit | 4K |
| N166 | Head unit/instrument cluster control unit | 4F |

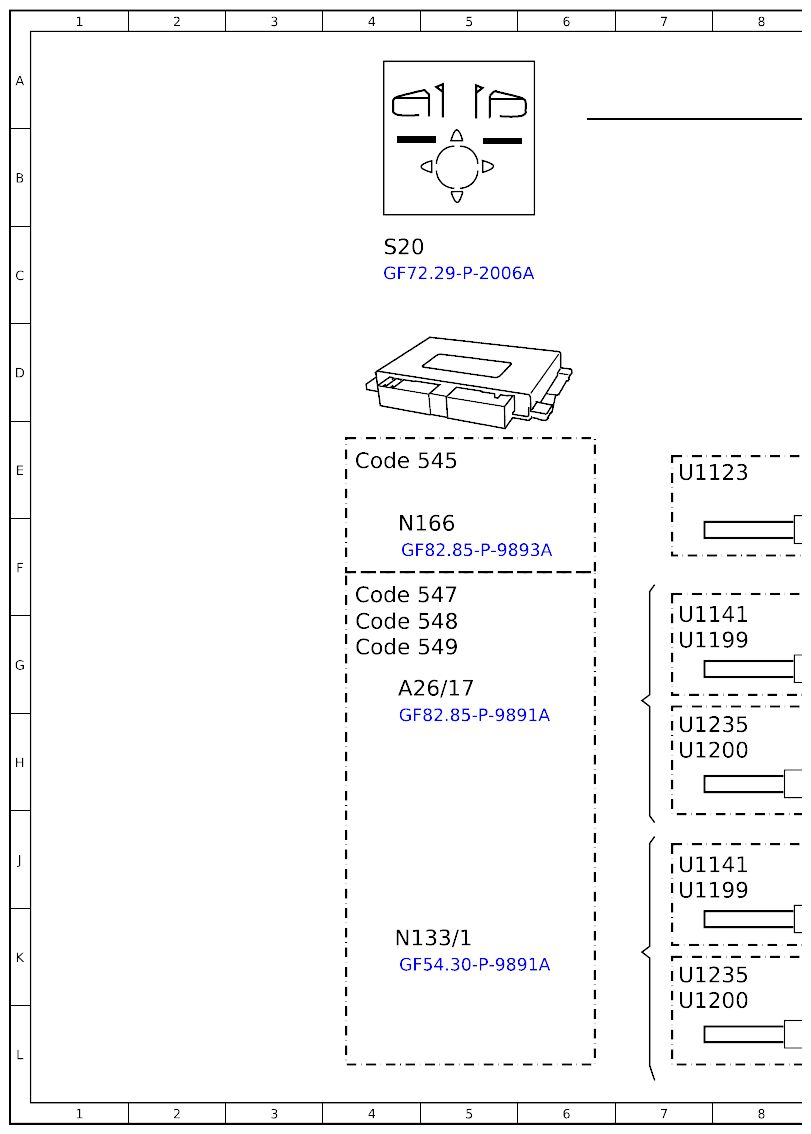

| S20 | Driver-side power window and outside mirror adjustment switch group | 4C |
| U1123 | Valid for model 118, 177, 247 | 7E |
| U1141 | Valid except model 213, 238, 257, 290 | 7G |
| U1141 | Valid except model 213, 238, 257, 290 | 7J |
| U1199 | Valid for vehicles up to facelift | 7G |
| U1199 | Valid for vehicles up to facelift | 7J |
| U1200 | Valid for vehicles as of facelift | 7H |
| U1200 | Valid for vehicles as of facelift | 7L |
| U1235 | Valid for model 213, 238, 257, 290 | 7H |
| U1235 | Valid for model 213, 238, 257, 290 | 7K |
| CAN B | Interior CAN | 15G |
| CAN B | Interior CAN | 22G |
| CAN HMI | User interface CAN | 9G |
| CAN HMI | User interface CAN | 9F |
| CAN HMI | User interface CAN | 9K |
| CAN HMI2 | CAN 2 for user interface | 9H |
| CAN HMI2 | CAN 2 for user interface | 9L |
| LIN | Local Interconnect Network | 9A |
| LIN | Local Interconnect Network | 16A |
| 1 | Outside mirror fold-in/fold-out switch, status | 17A |
| 2 | Automatic power folding mirrors, status | 11H |
| 2 | Automatic power folding mirrors, status | 11G |
| 2 | Automatic power folding mirrors, status | 11E |
| 2 | Automatic power folding mirrors, status | 17F |
| 3 | Displayed vehicle speed, signal | 11K |
| 3 | Displayed vehicle speed, signal | 11J |
| 3 | Displayed vehicle speed, signal | 10E |
| 3 | Displayed vehicle speed, signal | 16F |
| 4 | Circuit 15, status | 16F |
| 5 | Central locking (CL [ZV]), status | 15F |
| 6 | Outside mirror fold-in/fold-out electric motor, actuation | 28G |
| 6 | Outside mirror fold-in/fold-out electric motor, actuation | 28E |
| 7 | Fold outside mirrors out/in, request | 23F |
