Function Schematic, Adjust Mirror Glass Of Outside Mirror - PE88.79-P-2503-97A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 167, 177, 243, 247, 293
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| Code 275 | Electrically adjustable driver seat with memory function | 1F |
| Code 275 | Electrically adjustable driver seat with memory function | 11C |
| Code 275 | Electrically adjustable driver seat with memory function | 17D |
| Code 545 | Connect 5 (NTG6) | 24G |
| Code 547 | Connect 20 Entry (NTG6) | 24H |
| Code 548 | Connect 20 MID (NTG6) | 24H |
| Code 549 | Connect 20 HIGH (NTG6) | 24J |
| H4/61 | Instrument cluster speaker | 29L |
| M21/1 | Driver-side outside mirror | 21C |
| M21/2 | Passenger-side outside mirror | 21E |
| N32/1 | Driver front seat adjustment control unit with memory | 2K |
| N69/1 | Driver door control unit | 8E |
| N69/2 | Front passenger door control unit | 14E |
| N73 | EIS [EZS] control unit | 2E |
| N73 | EIS [EZS] control unit | 17K |
| N133/1 | Instrument cluster control unit | 24J |
| N166 | Head unit/instrument cluster control unit | 24G |
| S20 | Driver-side power window and outside mirror adjustment switch group | 1C |
| S22 | Driver seat adjustment switch | 3G |
| U1141 | Valid except model 213, 238, 257, 290 | 19J |
| U1199 | Valid for vehicles up to facelift | 24G |
| U1199 | Valid for vehicles up to facelift | 24H |
| U1199 | Valid for vehicles up to facelift | 19J |
| U1200 | Valid for vehicles as of facelift | 24J |
| U1200 | Valid for vehicles as of facelift | 19K |
| U1235 | Valid for model 213, 238, 257, 290 | 19K |
| CAN B | Interior CAN | 5K |
| CAN B | Interior CAN | 5J |
| CAN B | Interior CAN | 5J |
| CAN B | Interior CAN | 12K |
| CAN B | Interior CAN | 12J |
| CAN B | Interior CAN | 5E |
| CAN B | Interior CAN | 12E |
| CAN HMI | User interface CAN | 21J |
| CAN HMI2 | CAN 2 for user interface | 21L |
| LIN | Local Interconnect Network | 5G |
| LIN | Local Interconnect Network | 5B |

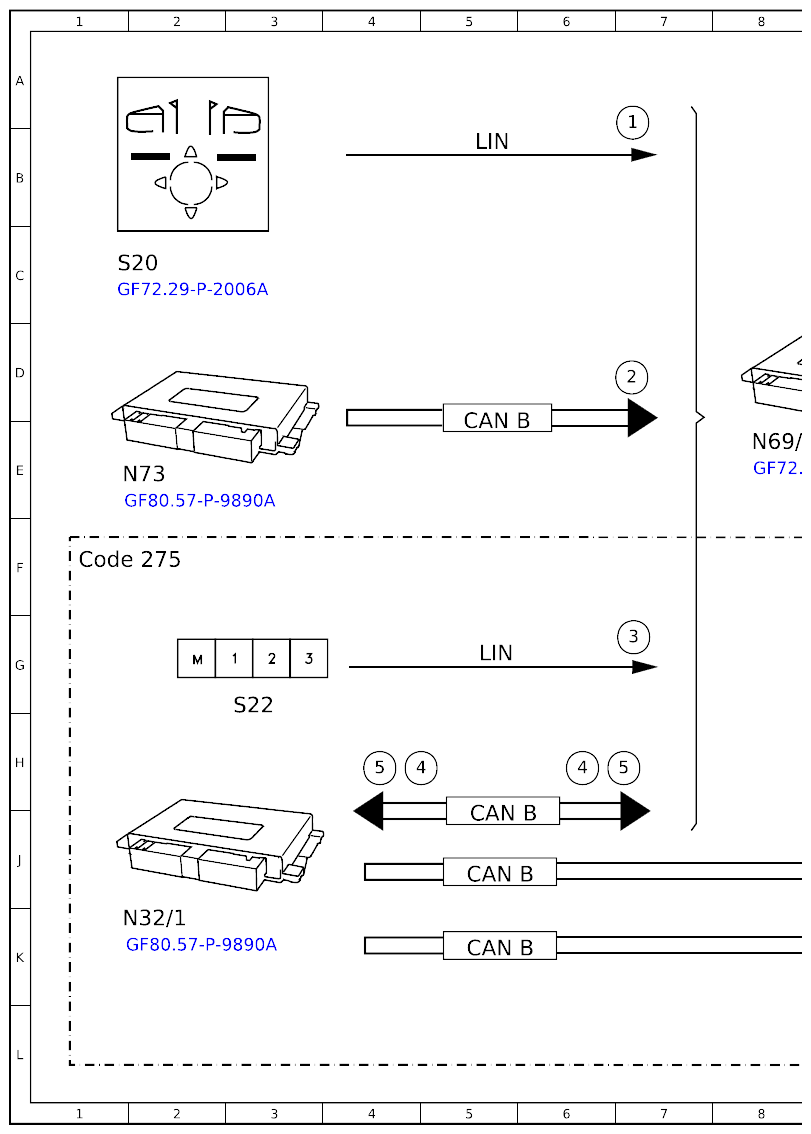

| 1 | Outside mirror adjustment switch, status | 7A |
| 2 | Circuit 15, status | 7D |
| 3 | Memory function switch, status | 7G |
| 4 | Store memory position, request | 4H |
| 4 | Store memory position, request | 6H |
| 4 | Store memory position, request | 15G |
| 5 | Adopt memory position, request | 4H |
| 5 | Adopt memory position, request | 7H |
| 5 | Adopt memory position, request | 15G |

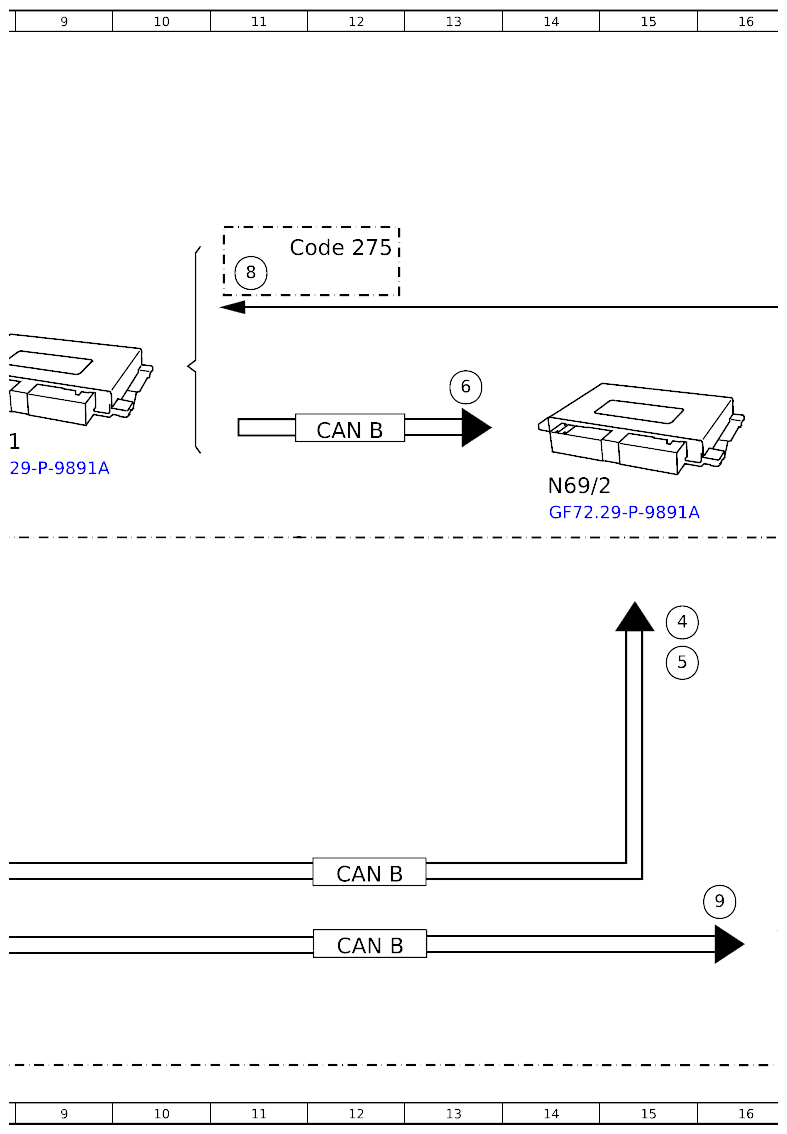

| 6 | Outside mirror adjustment, request | 13D |

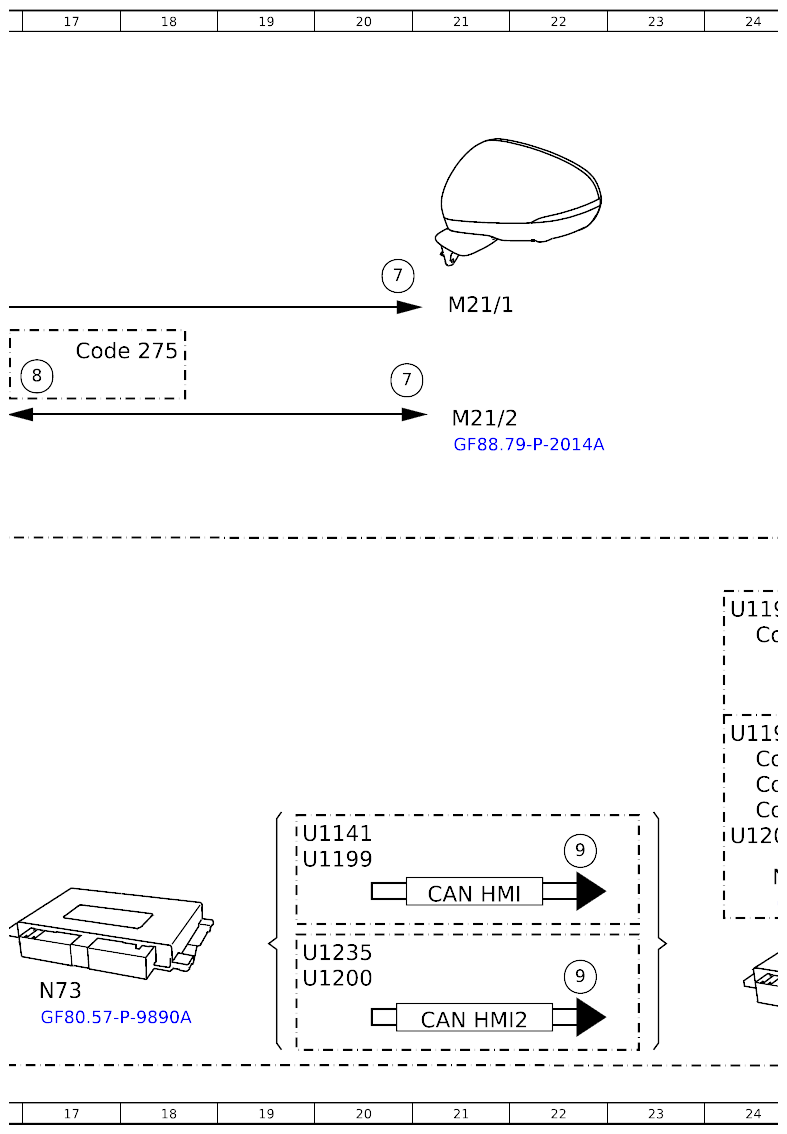

| 7 | Outside mirror actuator motor, actuation | 20D |
| 7 | Outside mirror actuator motor, actuation | 20C |
| 8 | Potentiometer, signal | 17D |
| 8 | Potentiometer, signal | 11C |
| 9 | Acknowledgment tone after memory positions stored successfully, request | 16J |
| 9 | Acknowledgment tone after memory positions stored successfully, request | 22K |
| 9 | Acknowledgment tone after memory positions stored successfully, request | 22J |

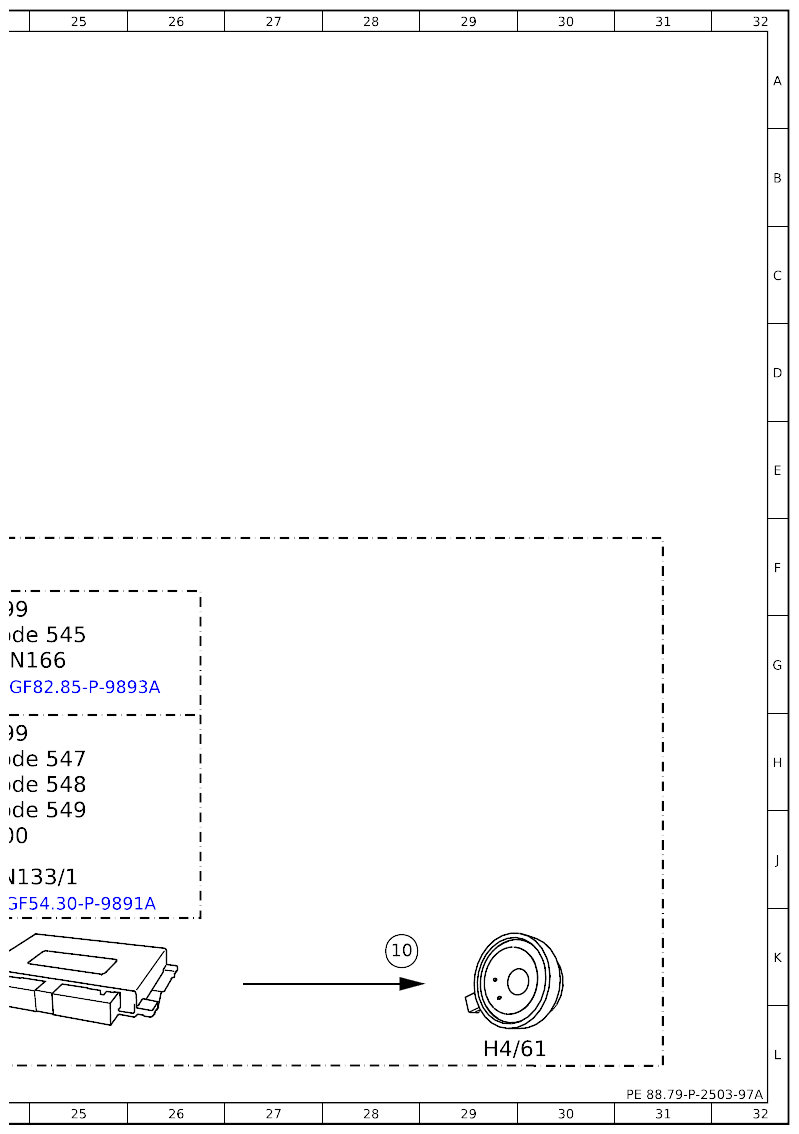

| 10 | Speaker, actuation | 28K |
