Remove/Install Trunk Lid Lock - AR88.50-P-0003MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118.3
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||

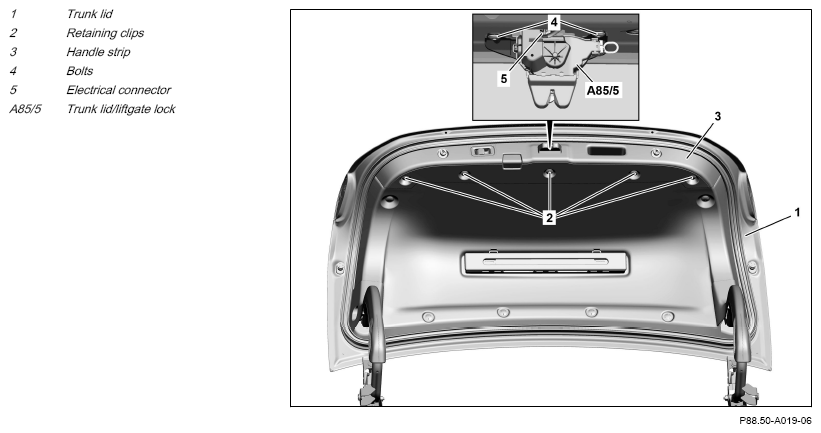

| 2 | Unclip retaining clips (2). | Fig 3 | |
| 3 | Unclip handle strip (3) and release and disconnect electrical connectors. | Fig 2 | |
| 4 | Remove handle strips (3). | ||
| 5 | Release and disconnect electrical connector (5). | ||
| 6 | Mark installation position of trunk lid/liftgate lock (A85/5) at trunk lid (1). | ||
| 7 | Remove screws/bolts (4). | *BA88.50-P-1003-03C | |
| 8 | Remove trunk lid/liftgate lock (A85/5). | ||
| 9 | Install in the reverse order. |
TRUNK LID
| Number | Designation | Model 118 | |
|---|---|---|---|
| BA88.50-P-1003-03C | Bolt, trunk lid lock to trunk lid | Nm | 9 |
