Remove/Install Sideview Glass Adjustment Drive - AR88.70-P-9060MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 247
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

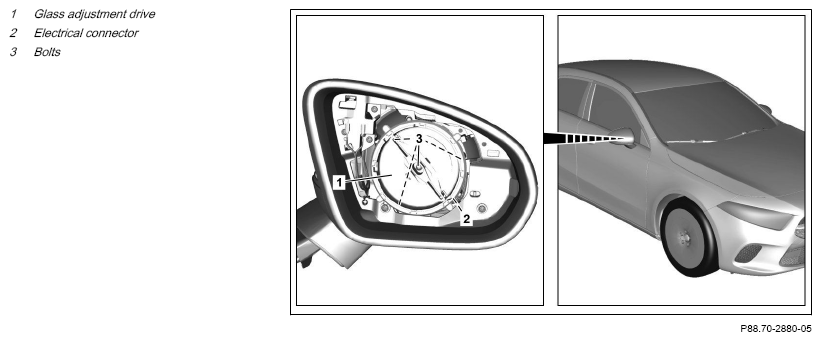

| 1 | Remove mirror lens. | AR88.70-P-9020MFA | |
| 2 | Remove screw/bolts (3). | ||
| 3 | Remove glass adjustment drive (1) until electrical connector (2) can be accessed. | This will result in damage to the electric lines and can impair their function. |
|
| 4 | Release and disconnect electrical connector (2). | ||
| 5 | Install in the reverse order. |
