Remove/Install Radiator Grille - AR88.40-P-4001MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118
Model 177
Model 247
MODIFICATION NOTES
| 04.02.2020 | Operation step added. | Operation step 6. |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove Active Brake Assist controller unit (A108). | If radiator grille (4) is replaced. Model 177 with code 258 (Collision warning system with active brake application FCW-Stop) with code 772 (AMG styling - Front spoiler, side skirts) |
AR54.21-P-0700MFB |
| 2 | Remove front bumper (1) and place onto suitable base. | AR88.20-P-2000MFA | |

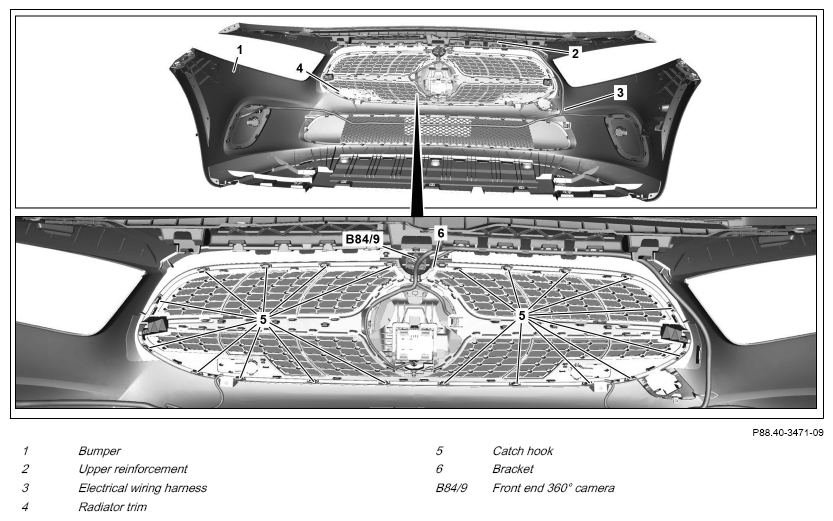

| 3 | Unclip upper reinforcement (2) and remove. | Fig 1 | |
| 4 | Expose electrical wiring harness (3) from radiator grille (4) until radiator grille (4) can be unclipped. | Model 118, 177, 247 with code 239 (Adaptive cruise control Pro (DISTRONIC PRO)) Model 118, 177, 247 with code 258 (Collision warning system with active brake application FCW-Stop) with code 772 (AMG styling - Front spoiler, side skirts) Model 177 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) Model 247 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) This will result in damage to the electric lines and can impair their function. |
|
| 5 | Unclip radiator grille (4) from catch hooks (5) and remove. | ||
| 6 | Reconfigure trim element of radiator grille (4). | If radiator grille (4) is replaced. | |
| 7 | Remove front 360° camera (B84/9) with bracket (6). | Model 118, 177, 247 with code 501 (360° camera) If radiator grille (4) is replaced. | |
| 8 | Install in the reverse order. |
