Remove/Install Complete Sideview Mirror - AR88.70-P-9000MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118
Model 177
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Move side window down. | ||
| 2 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 3 | Remove door trim. | AR72.10-P-6575MFA | |

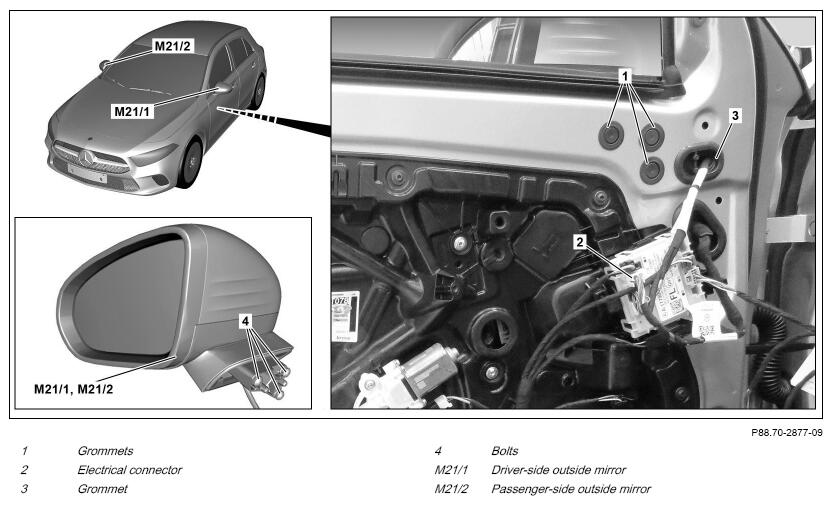

| 4 | Remove grommets (1). | ||
| 5 | Release and disconnect electrical connector (2) from driver's door control unit (N69/1) or front passenger door control unit (N69/2). | ||
| 6 | Release grommet (3) from opening. | ||
| 7 | Unscrew screw/bolts (4). | ||
| 8 | Remove driver's side outside mirror (M21/1) or front passenger side outside mirror (M21/2) from door and guide out wiring harness of outside mirror. | ||
| 9 | Install in the reverse order. | ||
| Calibrate | |||
| 10 | Calibrate all the cameras in the 360° camera system using the vehicle diagnosis system. | Model 118 with code 501 (360° camera) Model 177 with code 501 (360° camera) If the driver's side outside mirror (M21/1) or front passenger side outside mirror (M21/2) were removed. |
|
| AD00.00-P-2000-06MFA |
