Prepare Sealing Profile On Roof Frame For Installation - AR88.85-P-2000-01NKC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 117, 118
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| 000 588 15 84 00 Heat gun | WS54.00-P-0125B |
When reinstalling sealing profile
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
| BR00.45-Z-1099-02A | Adhesive tape/Acrylic Plus PT 1100 | A 008 989 20 85 |
| BR00.45-Z-1125-02A | 4298 UV primer | A 007 989 96 71 10 |
- Lay sealing profile (1) down on suitable subsurface.
- Carefully heat fabric tape (2) on sealing profile (1) with hot air blower and then remove fabric tape (2).
- Clean bonding area of fabric tape (2).
Observe flash-off time for cleaner of at least 60 s.
- Prime bonding area of fabric tape (2).
Shake the primer well before use and observe the flash-off time for the primer of at least 90 s.
Otherwise the adhesive force of the new fabric tape (2) is not ensured.
- Glue new textile adhesive tape (2) to sealing profile (1).
Otherwise the adhesive force of the new fabric tape (2) is not ensured.

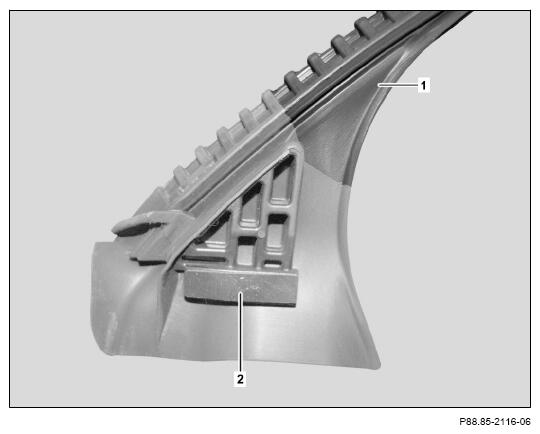

Shown on left sealing profile (1) for model 117
