Disassemble/Assemble Rear Bumper - AR88.20-P-2100MFA

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118.3/6

except code 235 (Active Parking Assist with PARKTRONIC)

except code M016 (Uprated engine)

Model 177.0/1/9

except code 235 (Active Parking Assist with PARKTRONIC)

except code M016 (Uprated engine)

Model 247.0

except code 235 (Active Parking Assist with PARKTRONIC)

except code M016 (Uprated engine)

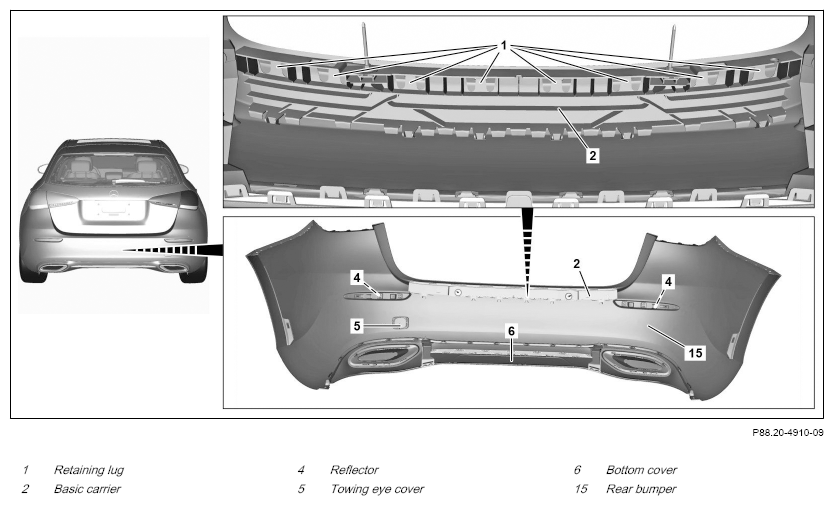

Courtesy of MERCEDES-BENZ USA

Shown on model 177.0 with code P59 (Progressive)

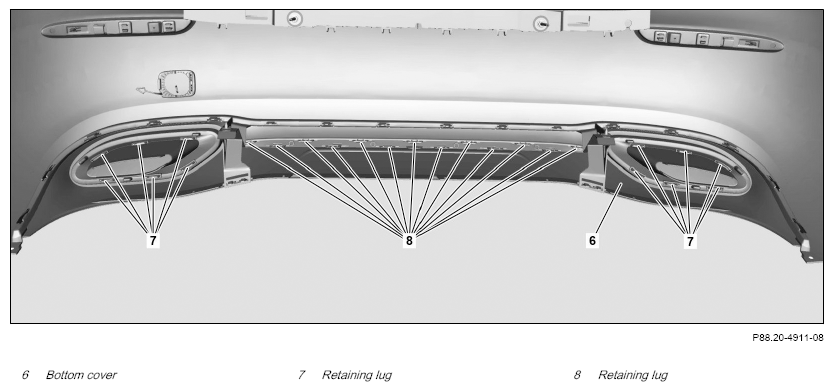

Courtesy of MERCEDES-BENZ USA

Shown on model 177.0 with code P59 (Progressive)

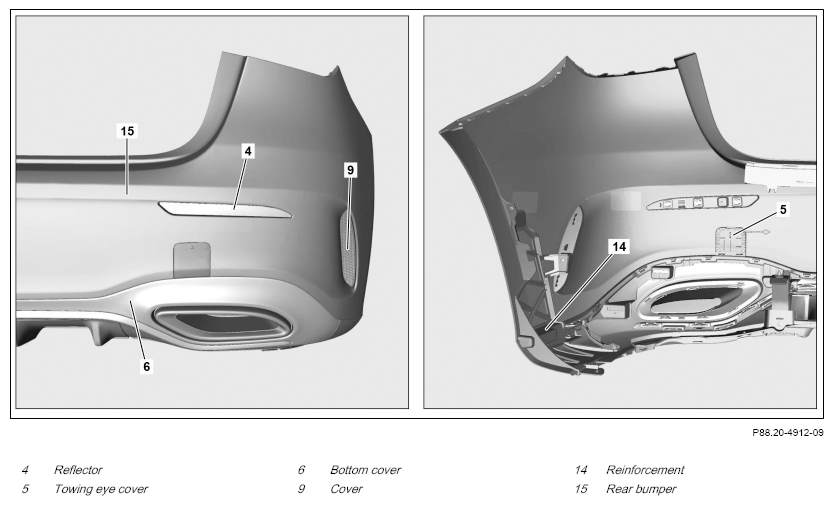

Courtesy of MERCEDES-BENZ USA

Shown on model 177.0 with code 772 (AMG styling package - front spoiler, side skirt, and rear apron)

	Remove/install
1	Remove rear bumper (15) and place on a suitable surface.	Model 118.3/6 except code 235 (Active Parking Assist with PARKTRONIC) except code M016 (Uprated engine) Model 177.0/1/9 except code 235 (Active Parking Assist with PARKTRONIC) except code M016 (Uprated engine) Model 247.0 except code 235 (Active Parking Assist with PARKTRONIC) except code M016 (Uprated engine)	AR88.20-P-2200MFA
2	Release retaining lugs (1) and remove basic carrier (2).	Long wedge	Fig 1
3	Unclip reflectors (4).	Long wedge	Fig 1
4	Remove towing eye cover (5).	Long wedge	Fig 1
5	Unclip left and right covers (9).	Model 118.3/6, 177.0/1/9, 247.0 with code 772 (AMG styling package - front spoiler, side skirts and rear apron) except code 235 (Active Parking Assist with PARKTRONIC) except code M016 (Uprated engine) Long wedge	Fig 1
6.1	Drill out expansion rivets of the reinforcement (14) with a drill bit and unclip reinforcement (14) along with bottom cover (6).	Model 118.3/6, 177.0/1/9, 247.0 with code 772 (AMG styling package - front spoiler, side skirts and rear apron) except code 235 (Active Parking Assist with PARKTRONIC) except code M016 (Uprated engine) Long wedge	Fig 1
6.2	Unclip bottom cover (6).	Model 118.3/6, 177.0/1/9, 247.0 except code 235 (Active Parking Assist with PARKTRONIC) except code 772 (AMG styling package - front spoiler, side skirts and rear apron) except code M016 (Uprated engine) Long wedge	Fig 1
7	Unclip retaining lugs (7) and unclip left and right decorative moldings.	Long wedge	Fig 1
8	Unclip retaining lugs (8) and remove center trim strip.	The number of retaining lugs (8) varies depending on the rear bumper design. Long wedge	Fig 1
9	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
