Actuate Emergency Release Of Fuel Filler Flap - AR88.60-P-1002MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118
Model 177
Model 247
Shown on model 177.0
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Detach side trim in trunk until working area is accessible. | Model 247.0 | AR68.30-P-4800MFB |
| Model 118.3, 177.1/9 | AR68.30-P-4800MFV | ||
| Model 118.6 | AR68.30-P-4800MFD | ||
| Model 177.0 |
AR68.30-P-4800MFA | ||

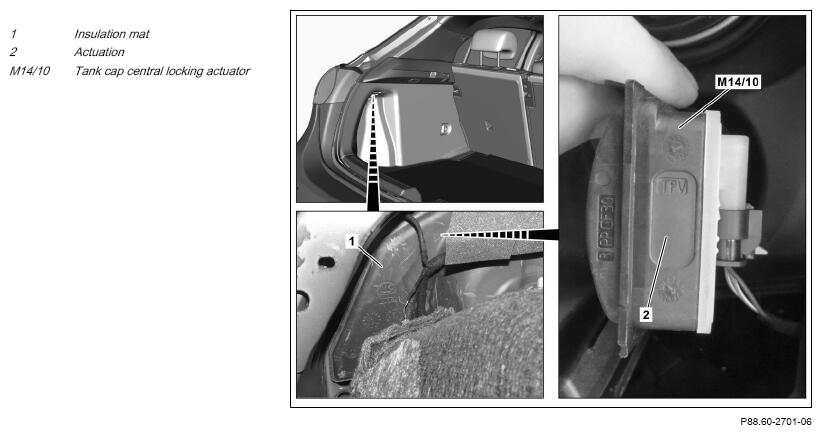

| 2 | Push insulation mat (1) to side until accessibility to the inner and outer side walls is ensured. | ||
| 3 | Feel for the fuel filler cap central locking system actuator (M14/10) in the cavity between the inner and outer side walls in the area of the tank filler recess. | ||
| 4 | Operate (2) fuel filler cap central locking system actuator (M14/10), until fuel filler flap unlocks. | ||
| 5 | Install in the reverse order. |
