Subsequently Modify Mirror Housing - AN88.70-P-0006MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118
except code 696U (Night black)
except code 830 (China version)
except code P55 (Night package)
except code P60 (AMG Night package)
| Remove | |||

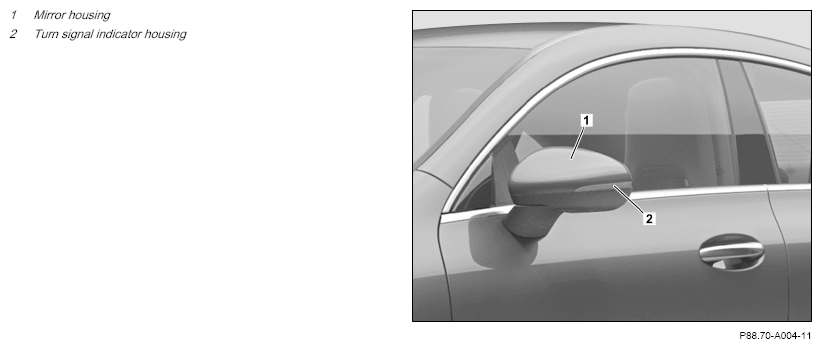

| 1 | Remove the mirror housing (1). | ||
| AR88.70-P-9040MFA | |||
| Install | |||
| 2 | Move the turn signal indicator housing (2) from the factory-installed mirror housings (1) to the new mirror housings (1). | ||
| 3 | Install the new mirror housings (1). | ||
| AR88.70-P-9040MFA | |||
| Update Vehicle Documentation (VeDoc) | |||
| 4 | Attach note "Mirror housing retrofitted as per AN88.70-P-0006MFC" under field organization texts to design group KG 88. |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG 99 (see XENTRY Portal Parts information) | Mirror housing, package contents | 1 |
