Retrofit Mirror Housing Cover - AZ88.70-P-0002MFC

Model 118

with code 460 (Canada version)

with code 494 (US version)

with code 5XX (Europe)

with code 601 (Egypt)

except code 512 (Azerbaijan)

except code 516 (Armenia)

except code 520 (Moldavia)

except code 541 (Iceland)

except code 552 (Montenegro)

except code 558 (Bosnia-Herzegowina)

except code 571 (Switzerland)

except code 830 (China version)

Courtesy of MERCEDES-BENZ USA

	Clean
1	Clean outside mirror housing (2).	The following operation steps are shown on the left side of the vehicle and are to be performed correspondingly on the right side of the vehicle. Cleaner	*BR00.45-Z-1025-04A
	Install

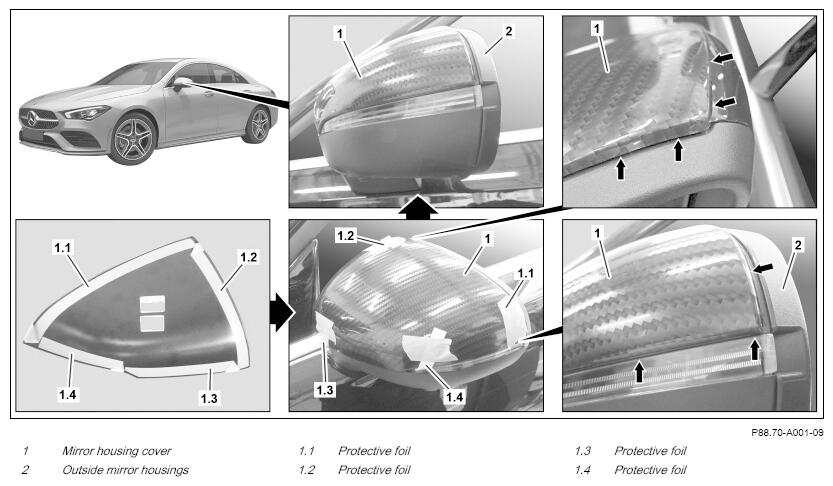

2	Fold over ends of the protective foils (1.1, 1.2, 1.3, 1.4) at an angle of 45° so that the bonding surfaces are exposed over a length of approx. 5 mm.
3	Fix protective foils (1.1, 1.2, 1.3, 1.4) in place on outside of mirror housing cover (1) with adhesive strips.	Ensure that the ends of the protective foils (1.1, 1.2, 1.3, 1.4) do not extend to the inside of the mirror housing cover (1) when installing.
4	Position mirror housing cover (1) on outside mirror housing (2) and press on lightly.	Do not use great pressure when pressing on mirror housing cover (1). Otherwise it is very difficult, if possible at all, to remove the protective foils later on, and the mirror housing cover (1) cannot be repositioned if necessary. Ensure that the mirror housing cover (1) is placed precisely on or surrounds the contours of the outside mirror housing (2) (arrow A).
5	Check position of mirror housing cover (1).	If the position of the mirror housing cover (1) is not correct, ↓ Loosen and reposition the mirror housing cover (1).
6	Detach adhesive strip and remove protective foil (1.1).
7	Detach adhesive strip and remove protective foil (1.2).
8	Detach adhesive strip and remove protective foil (1.3).
9	Detach adhesive strip and remove protective foil (1.4).
10	Press mirror housing cover (1) in direction of outer edges, starting at side closest to vehicle.	When pressing on, ensure that the pressure is applied directly on the adhesive strips. The maximum adhesive strength is only reached after approx. 72 h at 20°C. Avoid any contact with moisture (e.g. rain, fog, frost, washing facility) or any mechanical stress within the first 24 h. Otherwise adhesion problems may occur.
	Update Vehicle Documentation (VeDoc)
11	Attach note "Mirror housing cover retrofitted as per AZ88.70-P-0002MFC" under field organization texts to design group 88.
