Prepare Holder Of Engine Fuse And Relay Module For Retrofitting Wiring Harness For Front Illuminated Mercedes Star - AZ88.40-P-0011-03MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118

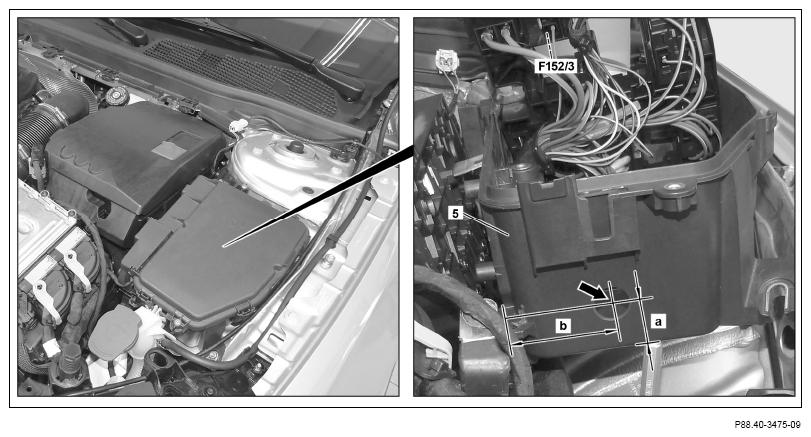

- Mark bore center point on the bracket (5) based on the dimensions (a, b).
Dimensions:
a = 30 mm (1.18 inches)
b = 60 mm (2.36 inches)
- Drill a hole with a diameter of 18 mm (0.71 inches) at the marked point (arrow).
Do not drill hole too deep.
If this is not the case, the engine compartment fuse and relay module (F152/3) or the wiring harness may be damaged.
- Deburr bore on both sides.
- Remove drilling chips.
