Electric Drive Sound Generator, Basic Function - GF08.20-P-9890A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model All (CAR)
Overview
This document contains information on:
- General
- Location
- Function requirements
- Function
General
The sound generators emit a warning tone in electric mode as a warning to other road users.
Example illustration
Location

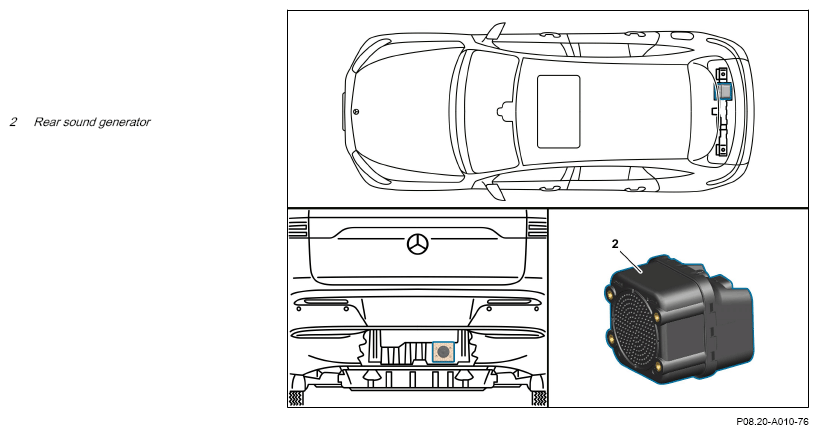

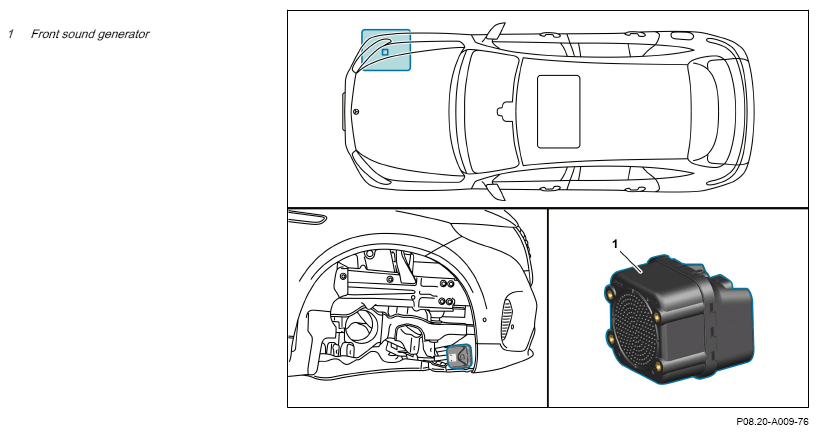

The front sound generator (1) is located in the vehicle at the front right on the underside of the engine compartment. The rear sound generator (2) is located in the rear area on the underbody.
Example illustration
Function requirements
- Circuit 30t ON
Function
Depending on the speed and accelerator pedal position, the sound generators (1, 2) generate an audio signal between 0 and 30 km/h. At speeds greater than 30 km/h, the sound generators (1, 2) are deactivated, as the rolling and wind noises are loud enough for a perception of the vehicle.
