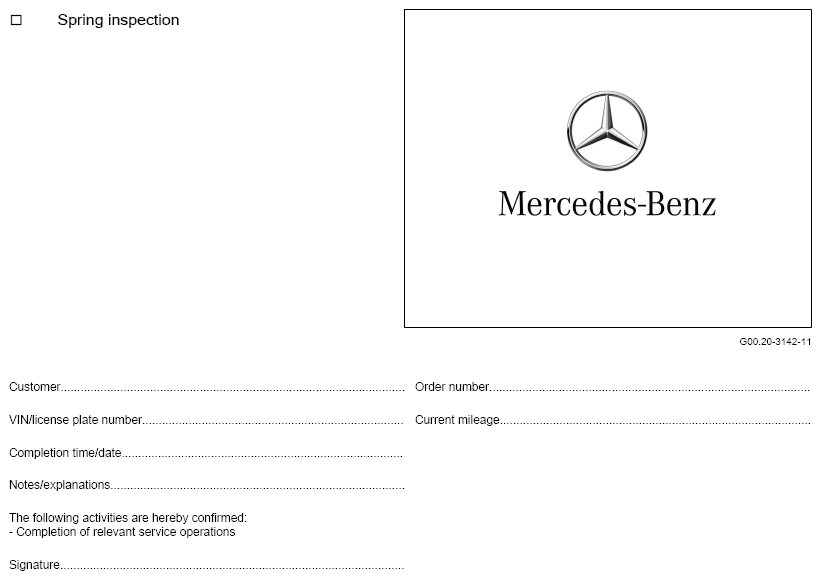

Spring Inspection - AP00.20-P-0081A

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 463

Courtesy of MERCEDES-BENZ USA

S Completed [X]		Input condition not OK:	ⓧ

	Brake system
□	Perform brake test and enter result in table.	- Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 463	◦
		Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 245 (except 245.286), 246, 247, 251, 253, 257, 290, 292, 293		AP42.00-P-4290BA
		Model 463 as of model year 2019
		Model 243		AP42.00-P-4290EQ
		Model 463 up to model year 2019		AP42.00-P-4290G
	Vehicle exterior
□	Check condition of vehicle exterior.		◦	AP60.00-P-6048U
□	Check condition of wiper blades.		◦	AP82.30-P-8253G
□	Check exterior lighting for proper operation.		◦	AP82.10-P-8252EW
	Vehicle interior
□	Check windshield wipers, windshield washer system and, if necessary, headlamp cleaning system for proper operation.		◦	AP82.30-P-8249U
	Engine compartment
□	Check engine oil level.	- Engine 111, 112, 113, 133, 139, 152, 156, 157, 159, 176, 177, 178, 254, 256, 260, 264, 266, 270, 271, 272, 273, 274, 275, 276, 277, 278, 279, 282, 607, 608, 611, 612, 626, 628, 629, 640, 642, 646, 647, 648, 651, 654, 656	◦	- AP18.00-P-1848U
□	Check main circuit coolant level in expansion reservoir.		◦	AP20.30-P-2049U
□	Brake system: Check fluid level.		◦	AP42.10-P-4247U
□	Windshield washer system: Check/correct fluid level.	When using cleaning compounds for summer/winter, and depending on the ambient temperature, observe the mixing ratio.		AP82.35-P-8249U
□	Underside of vehicle Check condition of vehicle underside.		◦	AP60.00-P-6049U
	Tires
□	Correct tire pressure and enter set tire pressure in table.	- Model 117, 118, 156, 164, 166, 167, 169, 172, 176, 177, 190, 197.3/4, 204, 205, 207, 212, 213, 216, 217, 218, 221, 222, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293 Model 463 as of model year 2019	◦	- AP40.15-P-4061A
		Model 171, 203, 209, 211, 219		AP40.15-P-4061B
		Model 243		AP40.15-P-4061EQ
		Model 463 up to model year 2019		AP40.15-P-4060G
	Trunk
		Vehicle with spare wheel.
□	Check/correct tire pressure spare wheel and enter set tire pressure into table.	- Model 117, 118, 156, 164, 166, 167, 169, 172, 176, 177, 190, 197.3/4, 204, 205, 207, 212, 213, 216, 217, 218, 221, 222, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293 Model 463 as of model year 2019	◦	- AP40.15-P-4061A
		Model 171, 203, 209, 211, 219		AP40.15-P-4061B
		Model 243		AP40.15-P-4061EQ
		Model 463 up to model year 2019		AP40.15-P-4060G
		Vehicle with TIREFIT.
□	Check TIREFIT tire sealant.	- Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293 Model 463 with code LQ0 (G650 Landaulet) Model 463 with code MUK2 (USA or Canada vehicle model designation) Model 463 with code ZQ0 (G 50 0 4x4² ) Enter expiration date here: Replace TIREFIT, invoice as additional operation.	◦	- AP40.10-P-4054R

BRAKE VALUES

	Left	Right
Front
Rear
Parking brake

SET TIRE PRESSURE IN KPA OR PSI (100 KPA = 1 BAR)

	Front axle	Rear axle	Spare tire
kPa/psi
