Repair Electric Coupling On ESP (R) Hydraulic Unit Wiring Harness - AR54.18-P-0018MFA

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 117, 118, 176, 177, 243, 246, 247

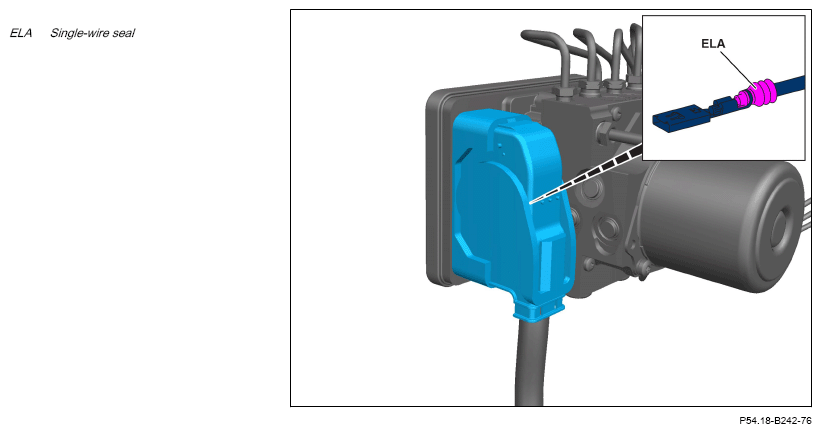

Example illustration

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on crimping		AH00.19-P-1000-09A
	Remove
1	Disconnect ground line from battery.	Model 118, 177, 243, 247	AR54.10-P-0003MFA
		Model 117, 176, 246	AR54.10-P-0003NKB
2	Release and disconnect electric coupling at ETS/ASR/ESP® hydraulic unit.	Model 117, 176, 246	AR42.40-P-0816NKB
		Model 118, 177, 243, 247	AR42.40-P-0816MFA
	Repair
3	Repair electric coupling or defective contact as per approved repair methods.	Repair wiring harness by crimping (with watertight connections)	AR00.19-P-0100-04A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
		For the repair, use only the "MCP" contact family approved for this connection. If twisted lines are twisted for the repair, make sure that they are then twisted again up to the contact. Only perform repair on contacts with single-wire seal (ELA). Repair max. 10 contacts. This repair is prohibited for a seal concept with mat seal.
		MCP 2.8_ELA crimping set	Fig 2
		MCP 1.2_ELA crimping set	Fig 1
		MCP 2.8_ELA crimping set	Fig 5
		MCP 2.8_ELA crimping set	Fig 4
		Wire stripper	Fig 8
		Crimp pliers	Fig 3
		Wiring harness repair kit, basic	Fig 7
		New passenger car wiring harness repair kit	Fig 6
	Install
4	Connect and lock electric coupling at ETS/ASR/ESP® hydraulic unit.	Model 117, 176, 246	AR42.40-P-0816NKB
		Model 118, 177, 243, 247	AR42.40-P-0816MFA
5	Connect ground line to battery.	Model 118, 177, 243, 247	AR54.10-P-0003MFA
		Model 117, 176, 246	AR54.10-P-0003NKB
	Check
6	Connect diagnostic system and check wheel speed in ESP actual values using diagnostic system.
		Model 118, 177, 243, 247	AD00.00-P-2000-06MFA
		Model 117, 176, 246	AD00.00-P-2000-04A
		Perform this test very carefully. Otherwise, if signals are mixed up, there is a risk of death for the vehicle occupants. i Perform a function test on the basis of the wheel speed following each repair. To do so, turn each wheel and ensure that it matches the wheel turned.
