Remove/Install Lower Radiator Shutters - AR20.20-P-3884MFF
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 247
MODIFICATION NOTES
| 28.08.2019 | Document completely revised. |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | General information on the impact absorber | AH88.20-P-1000-01A | |
| Topical note | Notes on pedestrian protection sensor | Model 118, 177, 247 with code U60 (Pedestrian protection - Active hood) | AH91.60-P-0001-01A |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove front bumper. | AR88.20-P-2000MFA | |

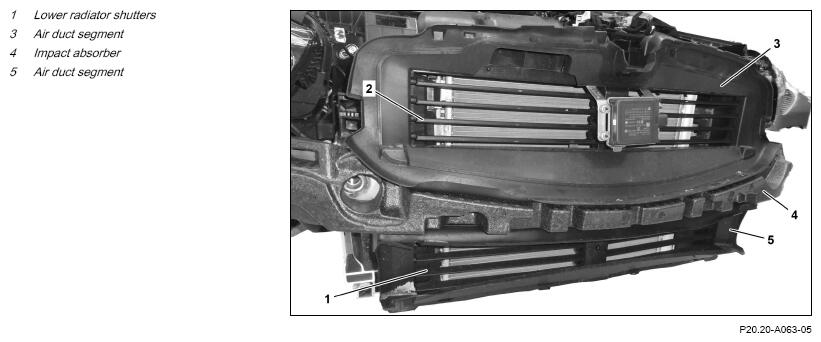

| 2 | Remove air duct segments (3, 5). | ||
| 3 | Release and disconnect electrical connector from the front left bumper pedestrian protection sensor (B151/1) and front right bumper pedestrian protection sensor (B151/3). | Model 118, 177, 247 with code U60 (Pedestrian protection - Active hood) |
AR91.60-P-0950MFA |
| 4 | Remove impact absorber (4). | ||

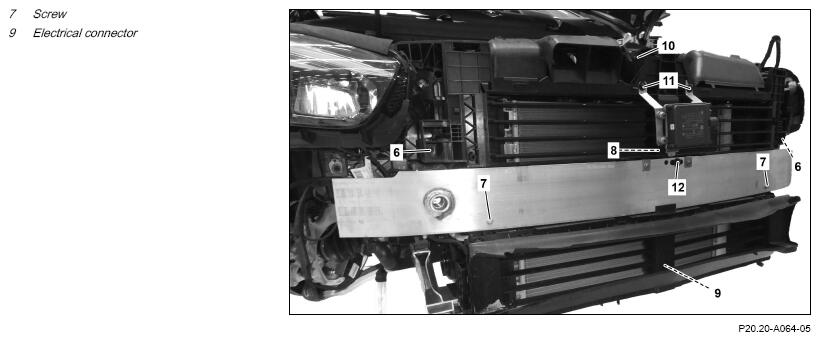

| 5 | Remove screws (7). | ||
| 6 | Remove lower radiator shutters (1) until electrical connector (9) is accessible. | Do not kink or stretch the electric line. Otherwise the electric line will be damaged. |
|
| 7 | Release and disconnect electrical connection (9). | ||
| 8 | Remove electric line from lower radiator shutters (1) and place to one side. | Do not kink or stretch the electric line. Otherwise the electric line will be damaged. |
Fig 1 |
| 9 | Remove lower radiator shutters (1). | ||
| 10 | Install in the reverse order. | ||
| Check | |||
| 11 | Check lower radiator shutters (1) for proper operation using diagnostic device. | ||
| AD00.00-P-2000-06MFA | |||
| 12 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06MFA |
