Remove/Install Low-Temperature Circuit Coolant Pump For 48 V Battery - AR20.10-P-1285MFH
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 260 in model 118, 177, 247
with code B01 (48V technology)

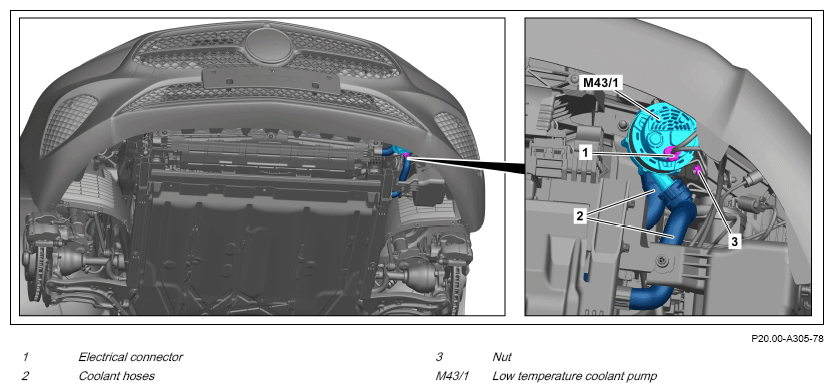

Fig 1: Low Temperature Circuit Coolant Pump For 48 V Battery Components Location - Model 118 With Engine 260 With Code B01
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Drain off low-temperature circuit coolant. | AR20.00-P-2014MFA | |
| 2 | Disconnect electrical connector (1). | ||
| 3 | Remove coolant hoses (2) from low-temperature coolant pump (M43/1). | AR20.20-P-7441-01RQ | |
| Fig 2 | |||
| 4 | Remove nut (3) and open bracket. | *BA20.10-P-1011-01AC | |
| 5 | Remove low-temperature coolant pump (M43/1). | ||
| 6 | Install in the reverse order. |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 260 except code 9U8 (Control code - Major assembly technical further development) | Engine 260 with code 9U8 (Control code - Major assembly technical further development) | |
|---|---|---|---|---|
| BA20.10-P-1011-01AC | Screw/nut, charge air cooler circulation pump retaining bracket/circulation pump to holder | Nm | 8 | 8 |
