Remove/Install Electric Coolant Pump For High Temperature Circuit - AR20.10-P-0001MFG
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 139 in model 118, 177, 247
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove/install | |||
| 1 | Remove the catalytic converter. | AR49.20-P-0100MFG | |

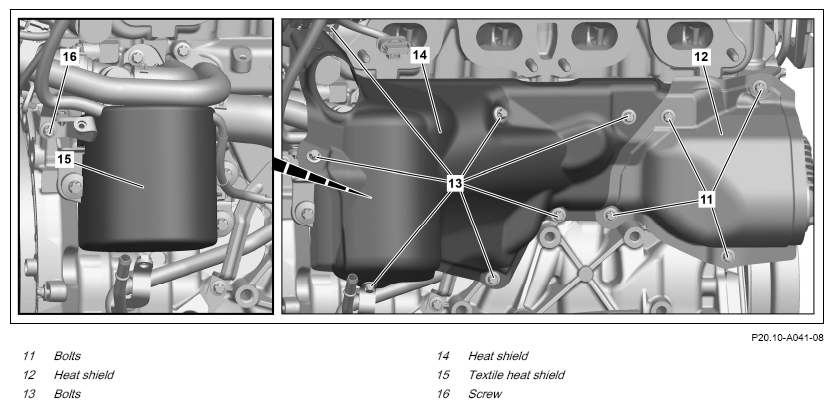

| 2 | Unscrew bolts (11) and remove heat shield (12). | *BA22.10-P-1002-02E | |
| 3 | Unscrew bolts (13) and remove heat shield (14). | *BA22.10-P-1002-02E | |
| 4 | Remove textile heat shield (15). | ||
| 5 | Remove screw (16). | *BA20.10-P-1008-01AC | |

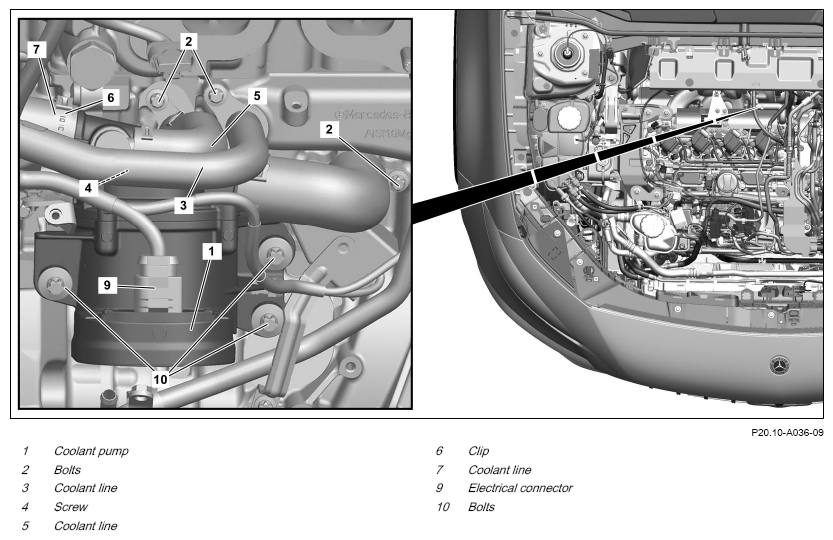

| 6 | Remove screws (2) and remove coolant line (3) from the crankcase and seal exposed connections with protective covers. | *BA20.10-P-1008-01AC | |
| Fig 1 | |||
| 7 | Remove screw (4), remove coolant line (5), and seal exposed connections with protective covers. | *BA20.10-P-1009-01AC | |
| Fig 1 | |||
| 8 | Remove clip (6). | AR20.20-P-7471-01MFG | |
| *BA20.10-P-1016-01AC | |||
| 9 | Remove coolant line (7) from the coolant pump (1) and seal exposed connections with protective covers. | Fig 1 | |
| 10 | Release and disconnect electrical connection (9). | ||
| 11 | Remove electrical wiring harness from the coolant pump (1). | ||
| 12 | Unscrew bolts (10) and remove coolant pump (1). | *BA20.10-P-1001-01AC | |
| 13 | Install in the reverse order. |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 139 | |
|---|---|---|---|
| BA20.10-P-1001-01AC | Screw, coolant pump to timing case/crankcase/oil pan | Nm | 20 |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 139 | ||
|---|---|---|---|---|
| BA20.10-P-1008-01AC | Screw, coolant line to coolant pipe/cylinder head/crankcase/coolant thermostat/coolant hose/timing case | M6 | Nm | 8 |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 139 | |
|---|---|---|---|
| BA20.10-P-1009-01AC | Screw, coolant pump to coolant hose/coolant line | Nm | 8 |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 139 | |
|---|---|---|---|
| BA20.10-P-1016-01AC | Clamp, coolant pump to coolant hose/coolant line | Nm | 3 |
ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Engine 139 | ||
|---|---|---|---|---|
| BA22.10-P-1002-02E | Bolt, heat shield to engine carrier/crankcase/oil pan/cylinder head | M6 | Nm | 8 |
