Notes On Acoustic Foam And Structural Foam In The Vehicle - Ah60.00-P-0039-01MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118
Model 177
Model 247
Position of acoustic foam elements (shown on left side of vehicle)
The acoustic foam elements are positioned at different heights in the area of the sidewall.
Acoustic foam part replacements are inserted using sealant at all the cleaned body contact surfaces.

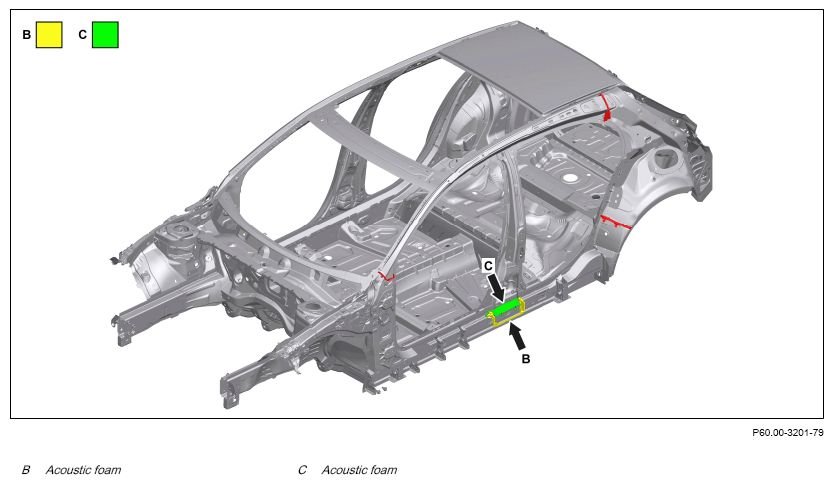

Shown on model 177.0

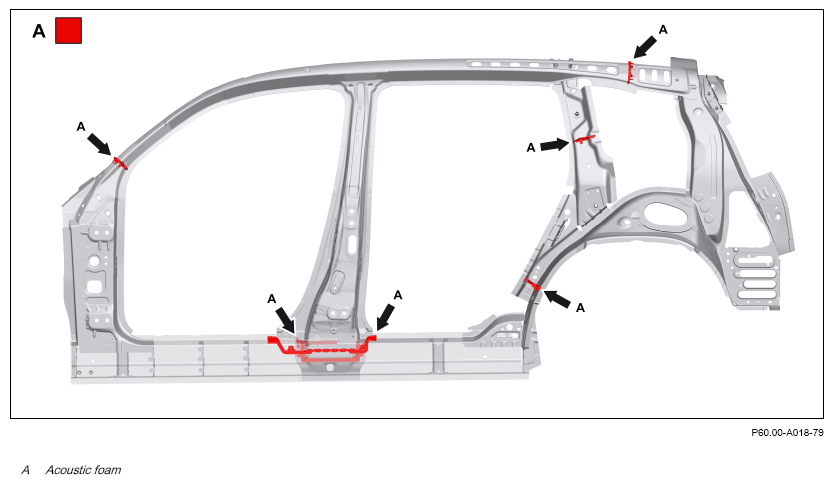

Shown on model 177.0

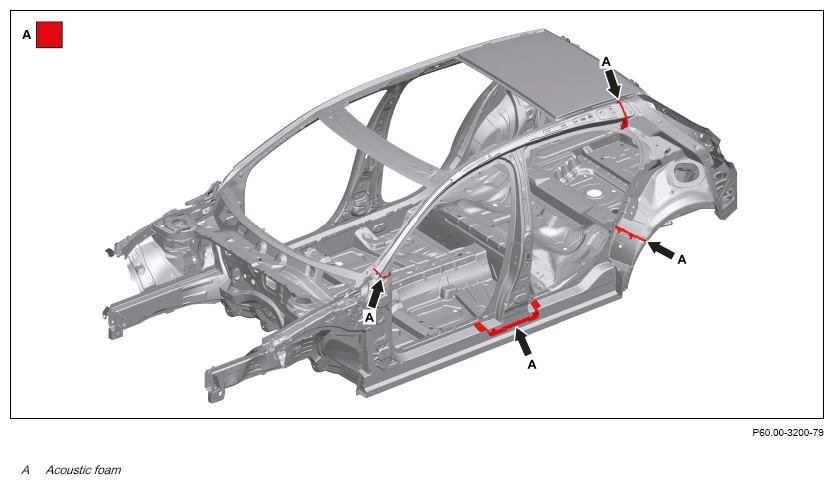

Shown on model 247.6
