Prepare Damping On Roof Paneling For Installation - Ar60.00-P-1760-01A

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 117, 118, 156, 166, 167, 176, 177, 205, 213, 214, 217, 222, 223, 236, 238, 242, 246, 247, 253, 254, 257, 290, 293, 294, 295, 296, 297

Refer to the superordinate service document for further information.

Observe safety information in the superordinate service document.

Shown on model 223

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown on model 177

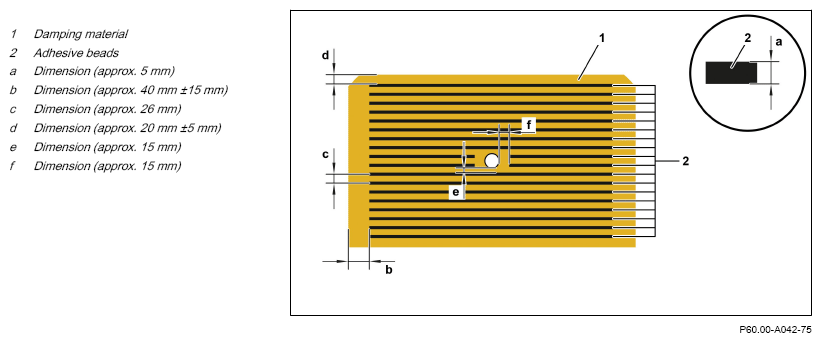

Place damping (1) on a clean base.
Apply adhesive beads (2) as shown.

Model 117, 118, 156, 166, 167, 176, 205, 213, 217, 222, 223, 238, 242, 246, 247, 253, 254, 257, 290, 293, 295, 296, 297

Make sure to observe specified dimensions (a, b, c, d, e, f) for installation of damping (1) without edges of the structure (3).

Otherwise, excess adhesive and the short curing time can lead to paint damage when removing excess adhesive.

Model 177, 236

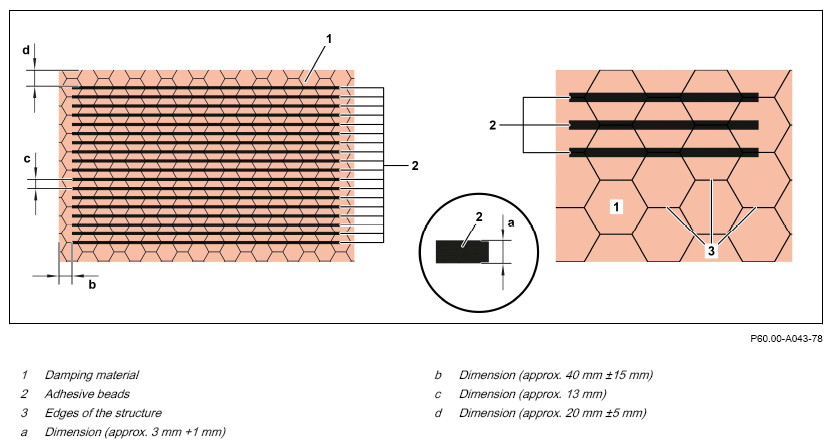

Make sure to observe specified dimensions (a, b, c, d) for installation of damping (1) with edges of the structure (3).

Otherwise, excess adhesive and the short curing time can lead to paint damage when removing excess adhesive.

Model 177, 236

Apply adhesive beads (2) to edges of the structure (3) with precision.

Observe manufacturer's specifications for the use and processing time of adhesive.

Apply adhesive beads (2) without interruption.
