Install Damping On Roof Paneling - Ar60.00-P-1760-02A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 117, 118, 156, 166, 167, 176, 177, 205, 213, 214, 217, 222, 223, 236, 238, 242, 246, 247, 253, 254, 257, 290, 293, 294, 295, 296, 297
Refer to the superordinate service document for further information.
Observe safety information in the superordinate service document.

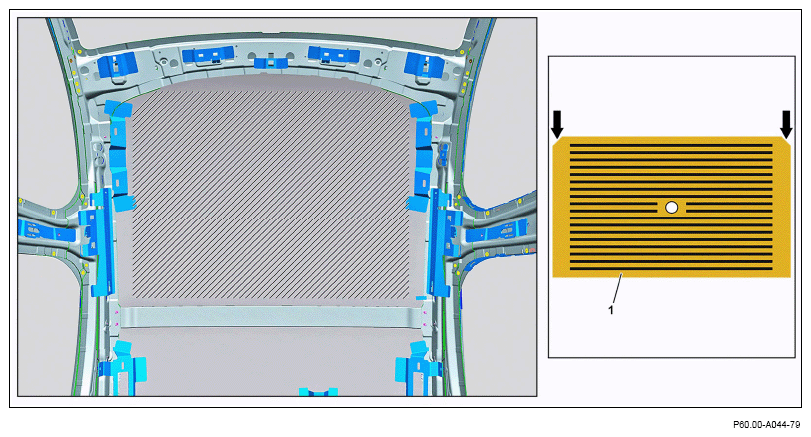

Shown on model 223
- Clean roof paneling in hatched area.
- Attach damping (1) to roof paneling.
For this purpose, press entire surface of damping (1) onto roof paneling.
Model 223
Chamfered edges (arrows) point in forward direction of travel.
