Attach Vehicle Identification Number - Ar60.00-P-0800MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118
Model 177
Model 247
MODIFICATION NOTES
| 13.03.2023 | Method extended. | Operation step 9 added |
Example
| Vehicle identification number | AH60.00-P-0800-02A | ||
| Product liability, trademark and traffic laws | AH60.00-P-0800-01Z | ||
| Attachment | |||
| 1 | Refer to the owner's manual for the position of the vehicle identification number (2). | ||

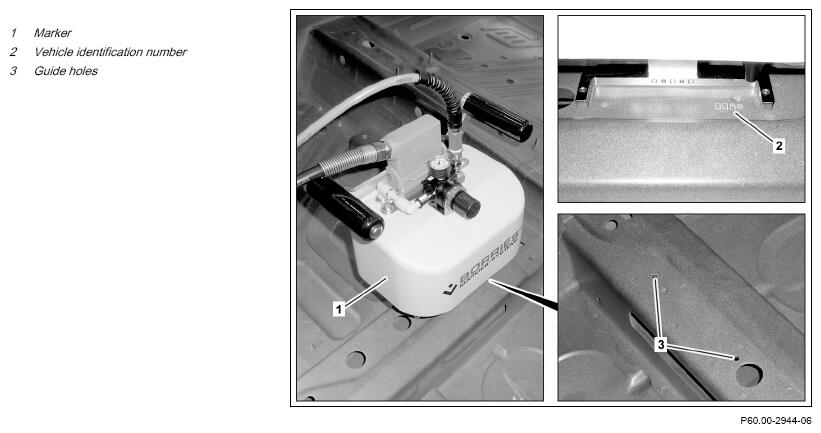

| 2 | Measure distance of guide holes (3) from marking unit (1) and transfer. | If punch marks for the guide holes (3) are not present. | |
| Fig 1 | |||
| 3 | Drill guide holes (3) with a diameter of 5 mm for the marking unit (1). | ||
| 4 | Prepare marking unit (1) and enter vehicle identification number (2) on marking unit (1). | ||
| Fig 1 | |||
| 5 | Insert marking unit (1) into the previously drilled guide holes (3). | ||
| 6 | Emboss vehicle identification number (2) with marking unit (1). | ||
| 7 | Cross out vehicle identification number (2) and emboss in reserve field. | Only if vehicle identification number (2) was punched in incorrectly previously. |
|
| Fig 1 | |||
| 8 | Coat guide holes (3) with zinc dust paint. | 1K-zinc dust paint | *BR00.45-Z-1056-07A |
| 9 | Apply protective film in the embossed area. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
