Flush Air Conditioning - AR83.30-P-1785MFA

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118 (except 118.353/354/385/386/388/653/654/685/686), 177 (except 177.053/054/085/086/185/186), 247 (except 247.085/086/753/754/785)

MODIFICATION NOTES

17.08.2023 Work procedure changed.

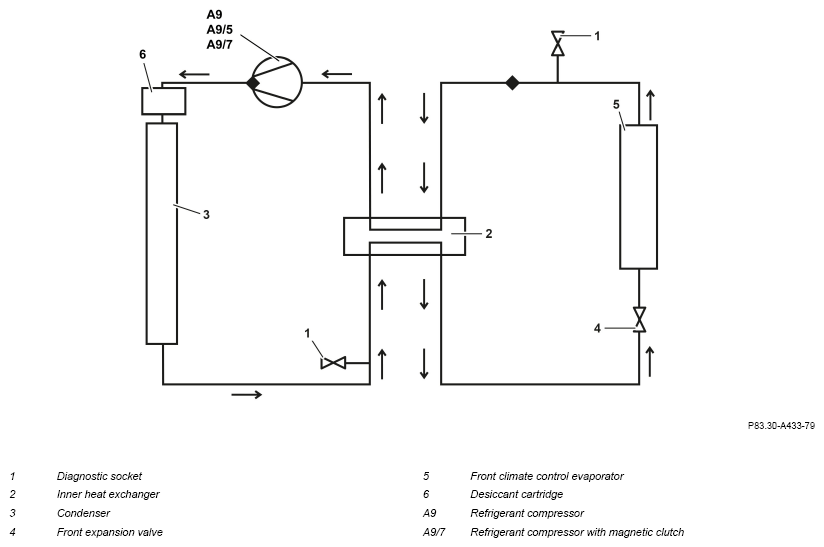

G16152282Courtesy of MERCEDES-BENZ USA

Schematic diagram of refrigerant circuit

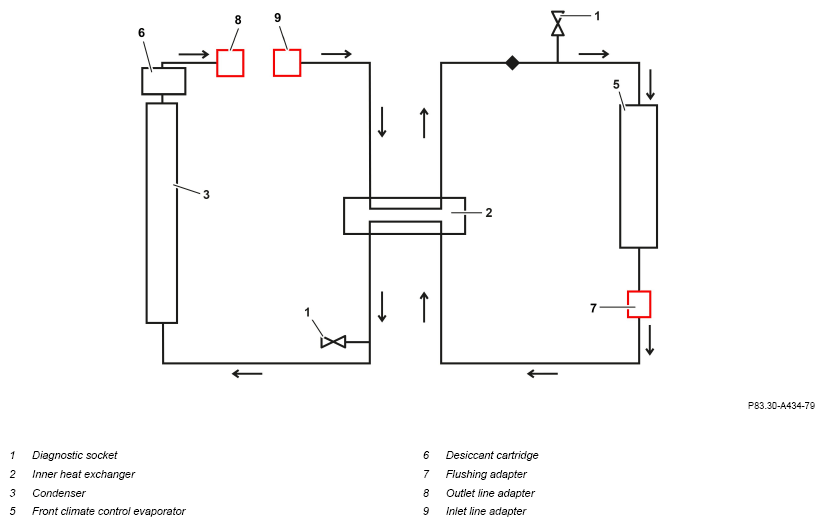

G16152283Courtesy of MERCEDES-BENZ USA

Flushing procedure

DANGER Risk of fire  due to ignition of R1234yf refrigerant on hot components. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion  due to formation of ignitable refrigerant/air mixtures Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. AS83.00-Z-0007-01A
WARNING Risk of poisoning  caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury  to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. AS83.00-Z-0006-01A
Notice  Protect air conditioning circuit and components from moisture when carrying out repair work   AH83.30-P-0005-01KOA
Notice  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  Notes on handling refrigerant R1234yf   AH83.30-P-0003-02A
  Notes on handling refrigerant R134a   AH83.30-P-0003-01KOA
REMOVING Remove
1 Remove dryer cartridge (6). Model 118 (except 118.353/354/385/386/388/653/654/685/686), 177 (except 177.053/054/085/086/185/186), 247 (except 247.085/086/753/754/785) with engine 608, 654
with code 2U8 (Alternative refrigerant)
AR83.30-P-6521MFE
    Model 118 (except 118.353/354/385/386/388/653/654/685/686), 177 (except 177.053/054/085/086/185/186), 247 (except 247.085/086/753/754/785) with engine 260, 282
with code 2U8 (Alternative refrigerant)
AR83.30-P-6521MFA
2 Remove refrigerant compressor (A9) or refrigerant compressor with magnetic clutch (A9/7). Model 118 (except 118.353/354/385/386/388/653/654/685/686), 177 (except 177.053/054/085/086/185/186), 247 (except 247.085/086/753/754/785) with engine 654 AR83.55-P-5310MFF
    Model 118 (except 118.353/354/385/386/388/653/654/685/686), 177 (except 177.053/054/085/086/185/186), 247 (except 247.085/086/753/754/785) with engine 608 AR83.55-P-5310MFE
    Model 118 (except 118.353/354/385/386/388/653/654/685/686), 177 (except 177.053/054/085/086/185/186), 247 (except 247.085/086/753/754/785) with engine 260
Model 118 (except 118.353/354/385/386/388/653/654/685/686), 177 (except 177.053/054/085/086/185/186), 247 (except 247.085/086/753/754/785) with engine 282
except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))
AR83.55-P-5310MFD
3 Remove front expansion valve (4).   AR83.30-P-5520MFA
INSTALLING Install
4 Install flushing adapter (7) in place of removed front expansion valve (4). TORQUE SPECIFICATION Bolt, expansion valve to retaining plate *BA83.30-P-1009-01T
    SPECIAL TOOL Adapter
If the screw threads do not grip,

pull the threaded plate out using an extraction hook, hold and screw in the screws alternately.
Fig 1
    SPECIAL TOOL Extraction hook Fig 2
5 Position and tighten refrigerant lines on flushing adapter (7). TORQUE SPECIFICATION Nut, refrigerant line to expansion valve *BA83.30-P-1001-01T
    SPECIAL TOOL Adapter Fig 1
6 Attach outlet line adapter (8) and inlet line adapter (9) to refrigerant lines of removed refrigerant compressor (A9) or refrigerant compressor with magnetic clutch (A9/7) according to line diameters. TORQUE SPECIFICATION Model 118 (except 118.353/354/385/386/388/653/654/685/686), 177 (except 177.053/054/085/086/185/186), 247 (except 247.085/086/753/754/785) with engine 282
Bolt, refrigerant line to refrigerant compressor
*BA83.55-P-1002-02G
    TORQUE SPECIFICATION Model 118 (except 118.353/354/385/386/388/653/654/685/686), 177 (except 177.053/054/085/086/185/186), 247 (except 247.085/086/753/754/785) with engine 654.9
Bolt, refrigerant line to refrigerant compressor
*BA83.55-P-1002-02B
    TORQUE SPECIFICATION Model 118 (except 118.353/354/385/386/388/653/654/685/686), 177 (except 177.053/054/085/086/185/186), 247 (except 247.085/086/753/754/785) with engine 608
Bolt, refrigerant line to refrigerant compressor
*BA83.55-P-1002-02H
    TORQUE SPECIFICATION Model 118 (except 118.353/354/385/386/388/653/654/685/686), 177 (except 177.053/054/085/086/185/186), 247 (except 247.085/086/753/754/785) with engine 260
Bolt, refrigerant line to refrigerant compressor
*BA83.55-P-1002-02F
    SPECIAL TOOL Adapter kit Fig 4
7 Install dryer cartridge (6) except filter package into capacitor (3). TORQUE SPECIFICATION Plug to condenser *BA83.30-P-1008-01T
8 Connect air conditioning service unit with flushing tank and service hoses to outlet line adapter (8) and to inlet line adapter (9).
REFER TO SPECIAL TOOLS 000 588 15 82 00 Air conditioning service unit R134a   WS83.00-P-0064B
REFER TO SPECIAL TOOLS 000 588 18 82 00 R1234yf air conditioning service unit IMPORTANT In principle, any air conditioning service unit can be used, regardless of the brand or design; it only has to have a flushing function.
IMPORTANT The flushing direction (arrows) is the opposite direction to the flow direction of the refrigerant circuit.
IMPORTANT Connect inlet service hose to inlet line adapter (9) and outlet service hose to outlet line adapter (8).
WS83.00-P-0066B
  Flushing
9 Start flushing procedure at air conditioning service unit and follow instructions.
REMOVING Remove
10 Disconnect air conditioning service unit.
REFER TO SPECIAL TOOLS 000 588 15 82 00 Air conditioning service unit R134a   WS83.00-P-0064B
REFER TO SPECIAL TOOLS 000 588 18 82 00 R1234yf air conditioning service unit   WS83.00-P-0066B
11 Detach refrigerant lines from flushing adapter (7). SPECIAL TOOL Adapter Fig 1
12 Remove flushing adapter (7) and seal openings of refrigerant lines with suitable stop plugs. SPECIAL TOOL Record plug Fig 3
    SPECIAL TOOL Adapter Fig 1
INSTALLING Install
13 Install new front expansion valve (4).   AR83.30-P-5520MFA
REMOVING Remove
14 Remove outlet line adapter (8) and inlet line adapter (9) at refrigerant lines of removed refrigerant compressor (A9) or refrigerant compressor with magnetic clutch (A9/7) and seal openings of refrigerant lines with suitable stop plugs. SPECIAL TOOL Adapter kit Fig 4
    SPECIAL TOOL Record plug Fig 3
INSTALLING Install
15 Install dryer cartridge (6) with new filter package into capacitor (3). Model 118 (except 118.353/354/385/386/388/653/654/685/686), 177 (except 177.053/054/085/086/185/186), 247 (except 247.085/086/753/754/785) with engine 608, 654
with code 2U8 (Alternative refrigerant)
AR83.30-P-6521MFE
    Model 118 (except 118.353/354/385/386/388/653/654/685/686), 177 (except 177.053/054/085/086/185/186), 247 (except 247.085/086/753/754/785) with engine 260, 282
with code 2U8 (Alternative refrigerant)
AR83.30-P-6521MFA
16 Install new refrigerant compressor (A9) or refrigerant compressor with magnetic clutch (A9/7). Model 118 (except 118.353/354/385/386/388/653/654/685/686), 177 (except 177.053/054/085/086/185/186), 247 (except 247.085/086/753/754/785) with engine 654 AR83.55-P-5310MFF
    Model 118 (expect 118.353/354/385/386/388/653/654/685/686), 177 (except 177.053/054/085/086/185/186), 247 (except 247.085/086/753/754/785) with engine 608 AR83.55-P-5310MFE
    Model 118 (expect 118.353/354/385/386/388/653/654/685/686), 177 (except 177.053/054/085/086/185/186), 247 (except 247.085/086/753/754/785) with engine 260
Model 118 (expect 118.353/354/385/386/388/653/654/685/686), 177 (except 177.053/054/085/086/185/186), 247 (except 247.085/086/753/754/785) with engine 282 except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))
AR83.55-P-5310MFD
17 Fill air conditioning system and inspect for leak tightness and proper operation.   AR83.30-P-1760MFA
AIR CONDITIONING

Number Designation Model 118 Model 177
BA83.30-P-1001-01T Nut, refrigerant line to expansion valve M6 Nm 12 12
AIR CONDITIONING

Number Designation Model 247
BA83.30-P-1001-01T Nut, refrigerant line to expansion valve M6 Nm 12
AIR CONDITIONING

Number Designation Model 118 Model 177
BA83.30-P-1008-01T Plug to condenser Nm 4 4
AIR CONDITIONING

Number Designation Model 247
BA83.30-P-1008-01T Plug to condenser Nm 4
AIR CONDITIONING

Number Designation Model 118 Model 177
BA83.30-P-1009-01T Bolt, expansion valve to retaining plate Nm 7 7
AIR CONDITIONING

Number Designation Model 247
BA83.30-P-1009-01T Bolt, expansion valve to retaining plate Nm 7
REFRIGERANT COMPRESSOR

Number Designation Engine 654.9
BA83.55-P-1002-02B Bolt, refrigerant line to refrigerant compressor M8 Nm 20
M6 Nm 12
REFRIGERANT COMPRESSOR

Number Designation Engine 260
BA83.55-P-1002-02F Bolt, refrigerant line to refrigerant compressor Nm 20
REFRIGERANT COMPRESSOR

Number Designation Engine 282
BA83.55-P-1002-02G Bolt, refrigerant line to refrigerant compressor Nm 20
REFRIGERANT COMPRESSOR

Number Designation Engine 608
BA83.55-P-1002-02H Bolt, refrigerant line to refrigerant compressor Nm 20
Fig 1: Identifying Adapter (213 589 01 63 00)
G16152284Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Extraction Hook (140 589 02 33 00)
G16152285Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Record Plug (129 589 00 91 00)
G16152286Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Adapter Kit (222 589 01 91 00)
G16152287Courtesy of MERCEDES-BENZ USA
