Ethernet And Communication - SN82.85-P-0001-50S

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model All (CAR)

Courtesy of MERCEDES-BENZ USA

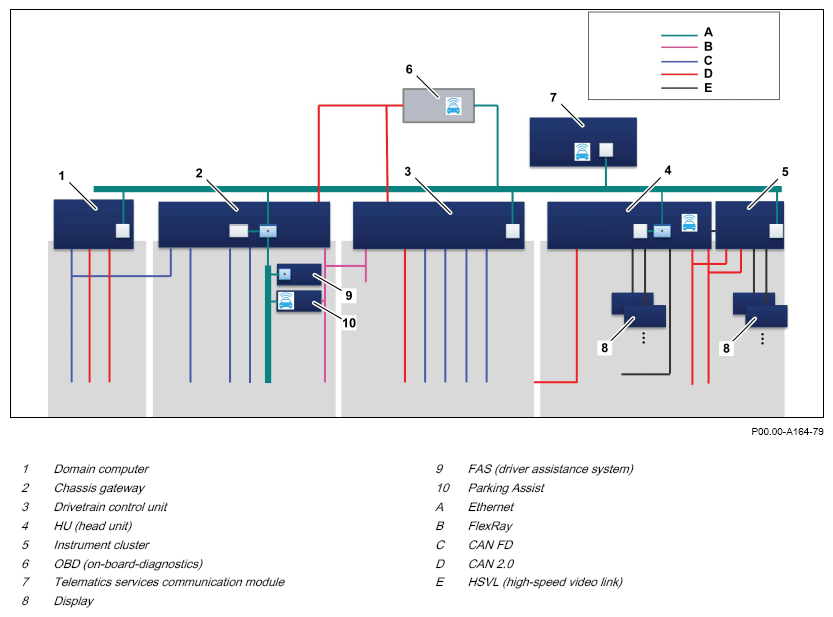

Overview of STAR3 architecture

Ethernet and new communication methods

New functions, particularly in the area of telematics and driver assistance systems, as well as increasing software scopes, are leading to growing bandwidth requirements at vehicle integration level.

Automotive Ethernet fulfills the requirements for higher bandwidths and thus enables the introduction of modern communication methods due to the transfer of higher data volumes.

This is necessary based on the following conditions:

Requirements regarding electromagnetic compatibility (EMC)
Connection to existing communication methods in the vehicle

With Automotive Ethernet, service-oriented high-speed communication methods are making their way into vehicle networking.

This is enabling more efficient function implementation and greater flexibility. Further increases in data volumes and additional vehicle and service functions are possible for the future.
