Wiring Diagram For Fuel Pump Control Unit - PE47.40-P-2101-97IBA
Model 177
Control unit N118
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |
| B4/1 | Fuel tank fuel level indicator fill level sensor, left | 27L |
| B4/2 | Fuel tank fuel level indicator fill level sensor, right | 29L |
| B4/31 | Fuel quality sensor | 34L |
| B4/7 | Fuel pressure sensor | 32L |
| CAN C1 | Drive train CAN | 14K |
| Code 916 | Fuel tank with increased capacity | 28A |
| Code 933 | Flexible Fuel Vehicle | 33A |
| Code L | LEFT-HAND DRIVE | 18E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION Engine M139 - AMG | 17K |
| Code M139 | Inline 4-cylinder SPARK-IGNITION Engine M139 - AMG | 30B |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION Engine M260 | 17K |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION Engine M260 | 30A |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION Engine M282 | 17K |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION Engine M282 | 30A |
| Code M608 | 4-CYLINDER INLINE DIESEL Engine OM608 | 17J |
| Code M654 | 4-CYLINDER INLINE DIESEL Engine OM654 | 17J |
| Code R | RIGHT-HAND DRIVE | 18E |
| F152/4 | Vehicle interior fuse and relay module | 7L |
| F152/4f159 | Fuse 159 | 6L |
| M3 | Fuel pump (FP) | 25L |
| N10 | Central control module | 11L |

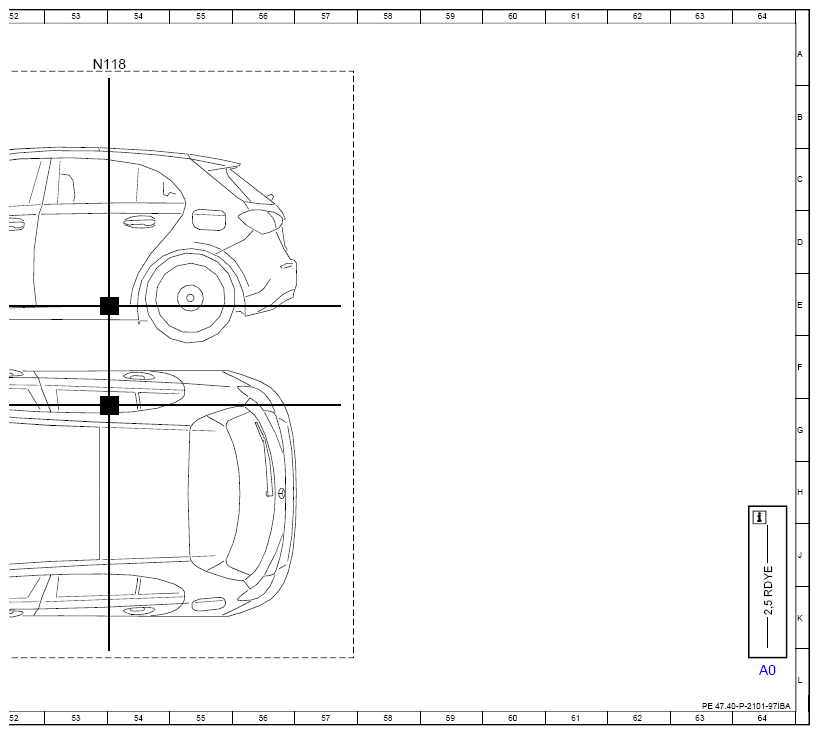

| N118 | Fuel pump control unit | 12A |
| N118 | Fuel pump control unit | 4A |
| N118 | Fuel pump control unit | 20A |
| N118 | Fuel pump control unit | 28A |
| N118 | Fuel pump control unit | 35A |
| N118 | Fuel pump control unit | 41A |
| N118 | Fuel pump control unit | 53A |
| N3/10 | ME-SFI [ME] control unit | 18K |
| N3/10 | ME-SFI [ME] control unit | 18K |
| N3/9 | CDI control unit | 18J |
| N3/9 | CDI control unit | 18J |
| W15/7 | Right front footwell ground point | 11F |
| X18/3x1 | Vehicle interior/fuel tank electrical connector | 24H |
| X25/14x1 | Right Engine compartment/vehicle interior electrical connector | 19F |
| X25/14x2 | Right Engine compartment/vehicle interior electrical connector | 18G |
| X30/21 | Drive train CAN (CAN C1) potential distributor | 15L |
