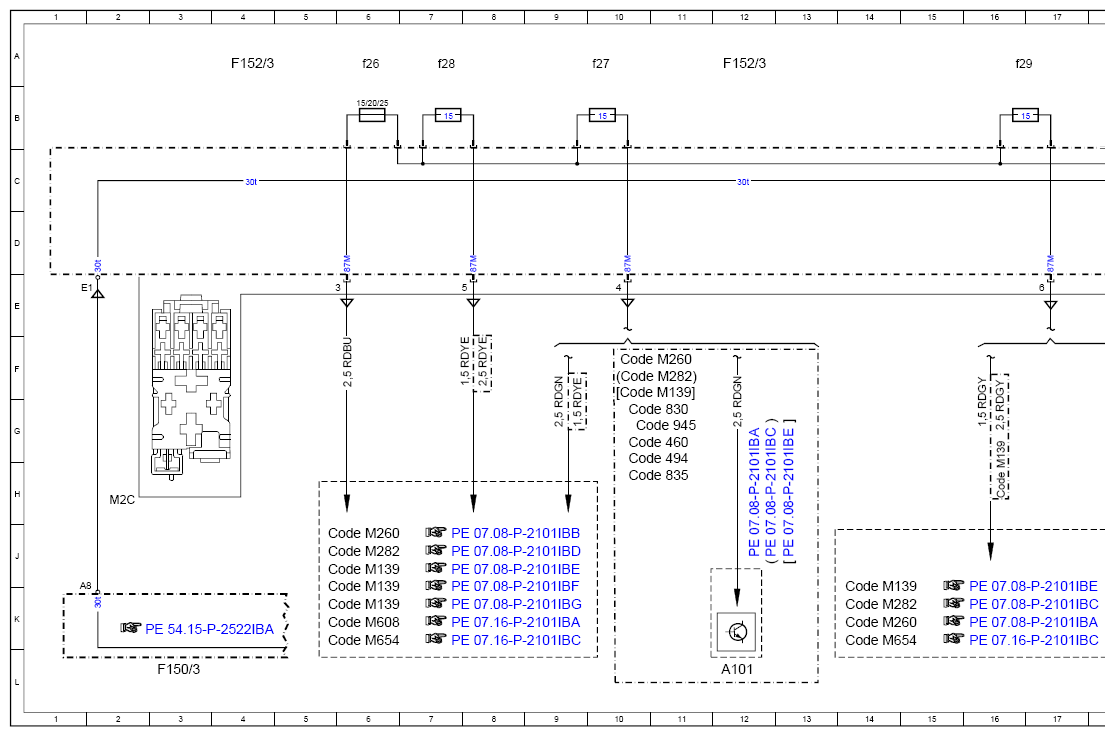

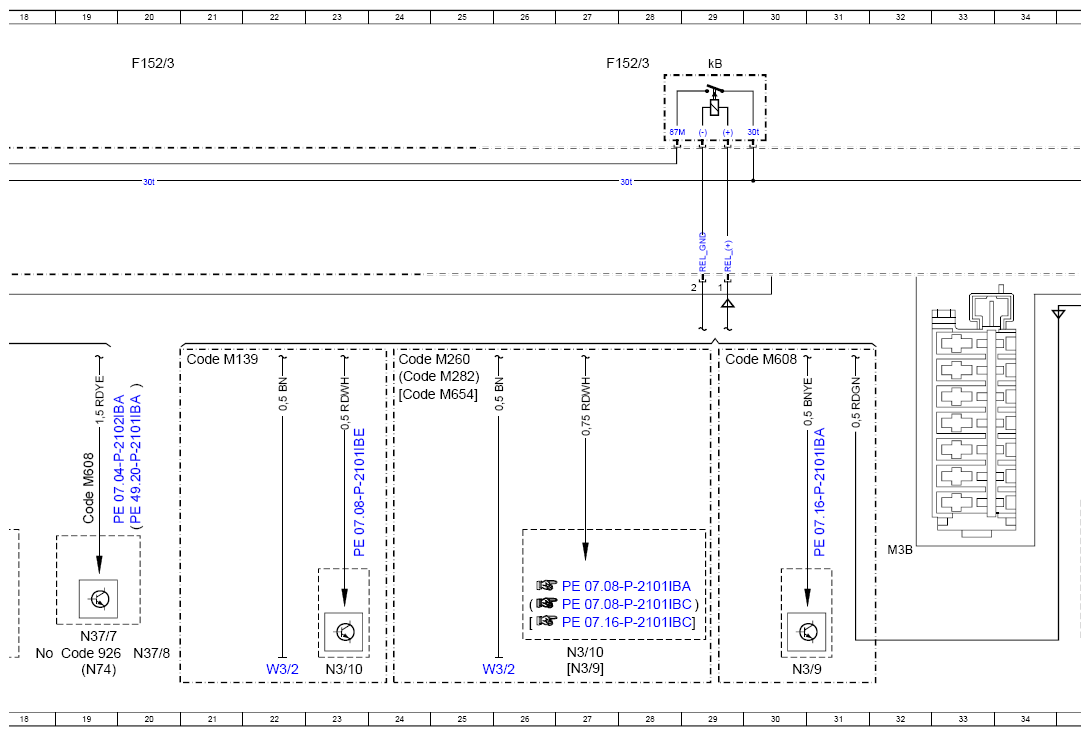

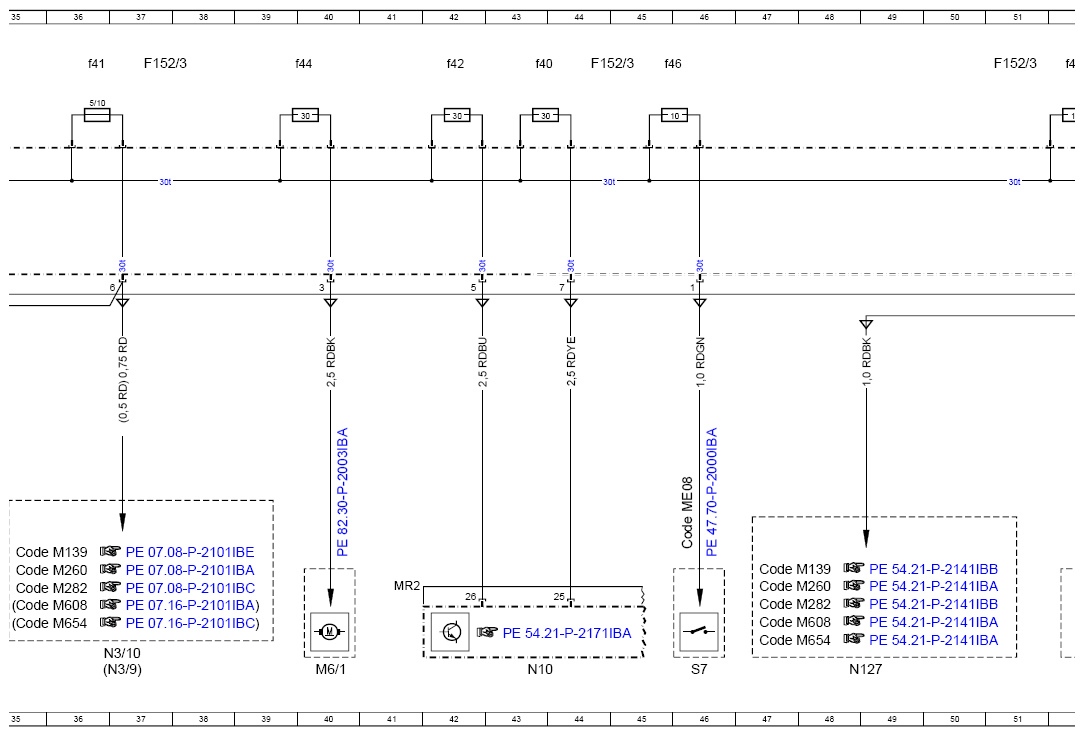

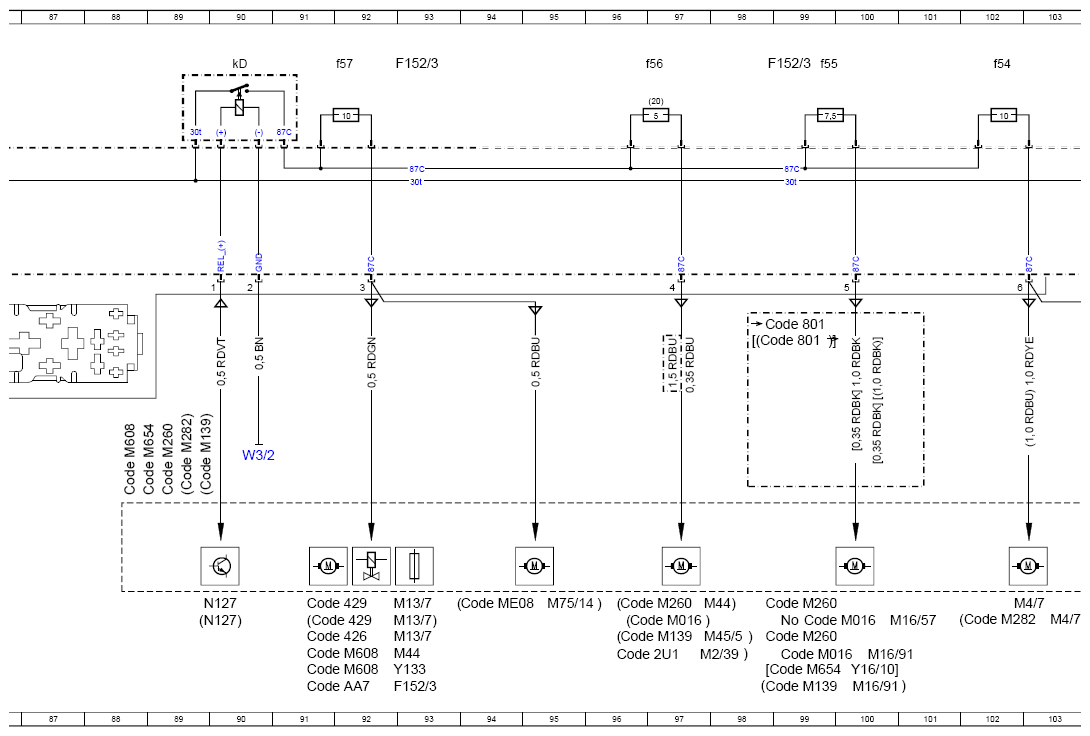

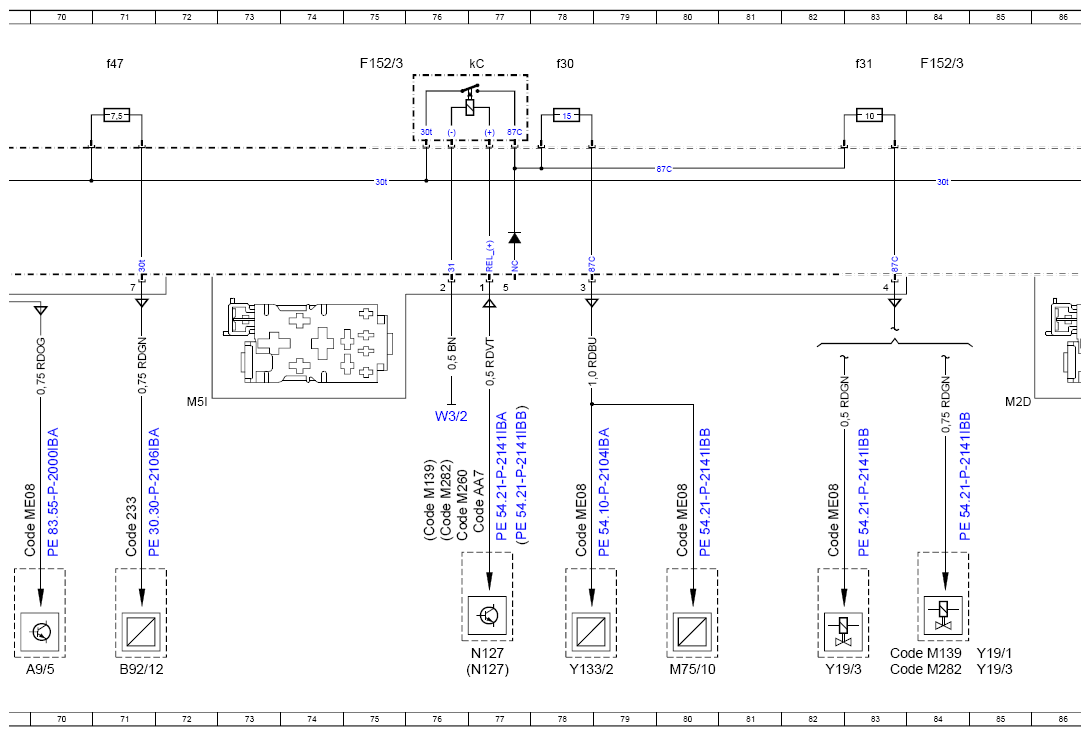

Wiring Diagram For Engine Compartment Fuse And Relay Module - PE54.15-P-2106-97IBA
Model 177
Module F152/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 240L |
| A100 | High-voltage battery module | 154L |
| A101 | Fuel tank diagnostic module | 12L |
| A108 | Active Brake Assist controller unit | 144K |
| A108/1 | Active Distance Assist DISTRONIC electric controller unit | 144L |
| A6 | Stationary heater unit | 62L |
| A9/5 | Electric refrigerant compressor | 70L |
| B31/4 | Fine particle sensor | 63L |
| B92/12 | Short and long-range radar sensor | 71L |
| B92/12 | Short and long-range radar sensor | 144L |
| Code 051 | YoM 20/2 | 66G |
| Code 228 | Stationary heater | 62J |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 71J |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 143L |
| Code 239 | Active Distance Assist DISTRONIC | 143L |
| Code 258 | Active Brake Assist | 143K |
| Code 2U1 | Radiator shutters | 96L |
| Code 426 | 8G-DCT | 91K |
| Code 429 | 7G-DCT | 91K |
| Code 429 | 7G-DCT | 91K |
| Code 429 | 7G-DCT | 53J |
| Code 429 | 7G-DCT | 58J |
| Code 460 | Canada version | 10G |
| Code 494 | USA version | 10H |
| Code 613 | Left-hand traffic headlamps | 160J |
| Code 620 | Right-hand traffic headlamps | 160J |
| Code 631 | Static LED headlamp, left-hand traffic | 64J |
| Code 631 | Static LED headlamp, left-hand traffic | 187J |
| Code 632 | Static LED headlamp, right-hand traffic | 65J |
| Code 632 | Static LED headlamp, right-hand traffic | 187J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 66J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 188J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 66J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 188J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 66J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 189J |
| Code 801 | YoM 20/1 | 151J |
| Code 801 | YoM 20/1 | 159J |
| Code 801 | YoM 20/1 | 158J |
| Code 801 | YoM 20/1 | 98E |
| Code 801 | YoM 20/1 | |
| Code 830 | Additional parts for China vehicles | 10G |
| Code 835 | Additional parts for South Korea vehicles | 10H |
| Code 926 | Low-emission EURO4 | 19L |
| Code 945 | China Stage 6 exhaust treatment | 10G |
| Code AA7 | POWER VARIANT UPRATED 2 | 91L |
| Code AA7 | POWER VARIANT UPRATED 2 | 77J |
| Code B01 | 48V technology | 156J |
| Code B01 | 48V technology | 153J |
| Code B01 | 48V technology | 197J |
| Code B01 | 48V technology | 196J |
| Code B53 | Acoustic ambient protection | 151J |
| Code B53 | Acoustic ambient protection | 158J |
| Code B53 | Acoustic ambient protection | 159J |
| Code M016 | Uprated high-performance engine | 96K |
| Code M016 | Uprated high-performance engine | 128J |
| Code M016 | Uprated high-performance engine | 99L |
| Code M016 | Uprated high-performance engine | 99K |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 5K |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 5K |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 5J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 16H |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 14K |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 35J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 10F |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 83L |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 96K |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 76J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 47J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 90H |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 21F |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 165L |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 133J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 131J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 129J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 138J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 98L |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 14K |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 5J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 35J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 96K |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 76J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 59J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 47K |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 89H |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 10F |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 24F |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 165K |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 127J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 138J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 98K |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 98K |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 24F |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 10F |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 14K |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 5J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 35K |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 47K |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 83L |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 102K |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 76J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 53J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 89H |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 165L |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 138K |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 35K |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 5K |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 19H |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 47K |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 91L |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 91L |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 54J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 88H |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 29F |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 138K |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 167K |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 5K |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 14K |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 35K |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 24F |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 47K |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 89H |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 138K |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 167L |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 98L |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 46J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 93K |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 80J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 82J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 78J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 68J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 70J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 60J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 109J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 154J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 155J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 180J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 179J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 177J |
| Code P53 | Air purification package | 63J |
| Code U63 | Driving school package | 162J |
| E1 | Left front lamp unit | 66L |
| E1 | Left front lamp unit | 160L |
| E1 | Left front lamp unit | 187L |
| E1 | Left front lamp unit | 189L |
| E2 | Right front lamp unit | 65L |
| E2 | Right front lamp unit | 66L |
| E2 | Right front lamp unit | 160L |
| E2 | Right front lamp unit | 189L |

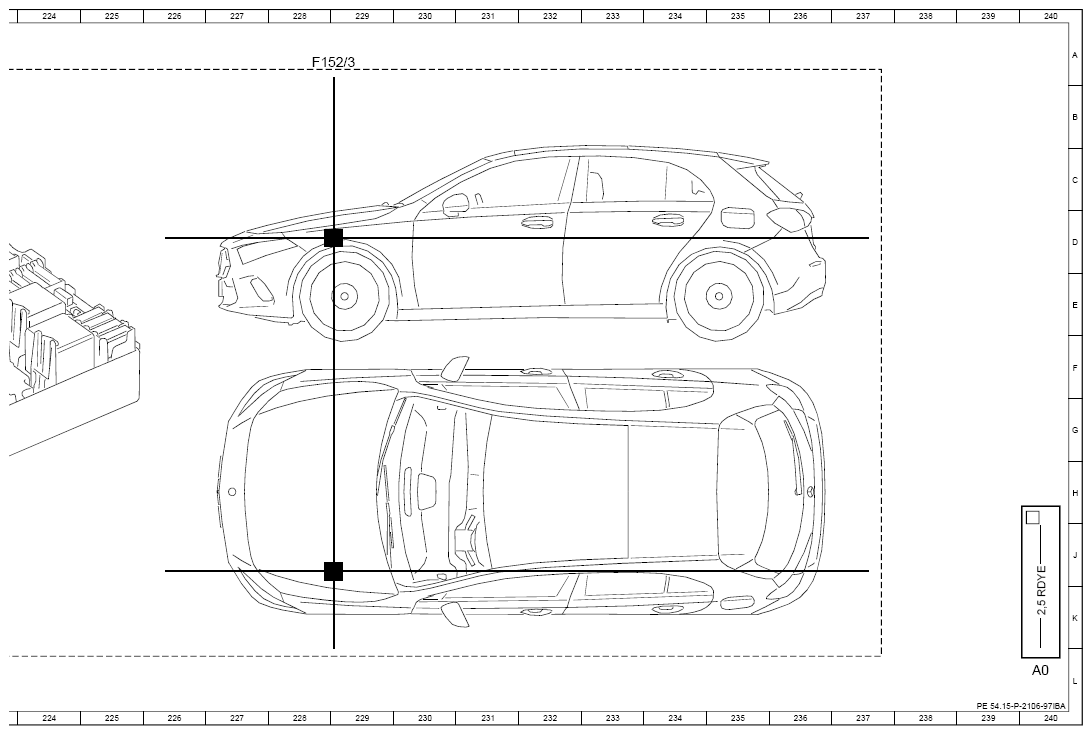

| F150/3 | Engine compartment pre-fuse box | 3L |

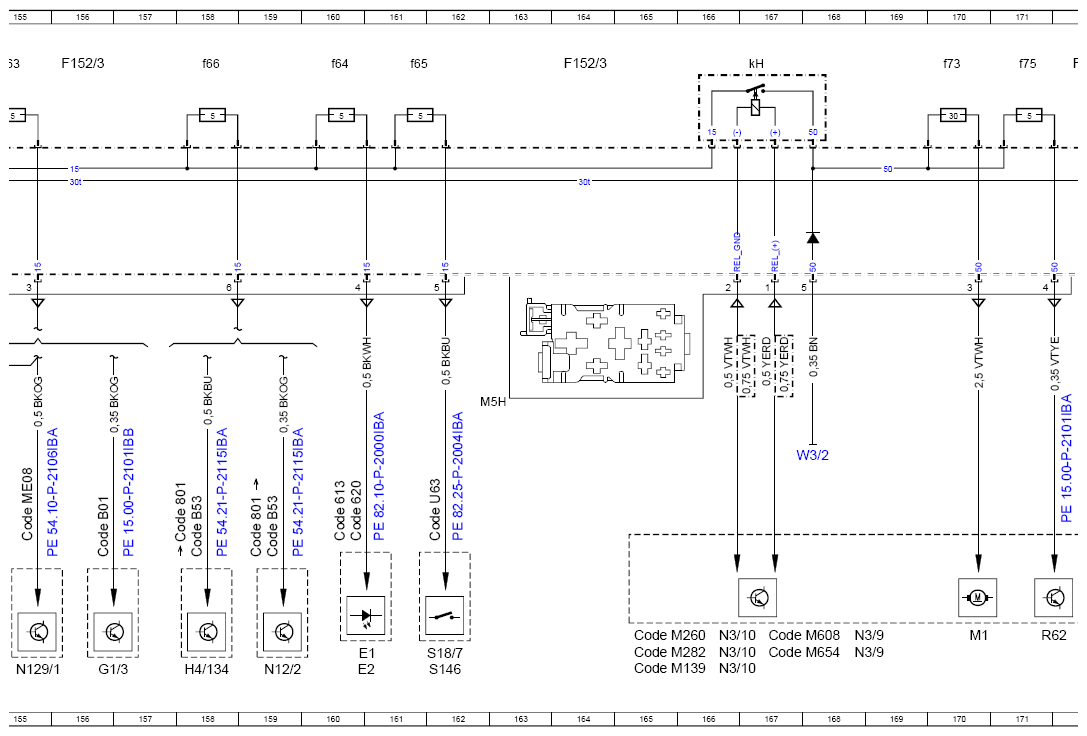

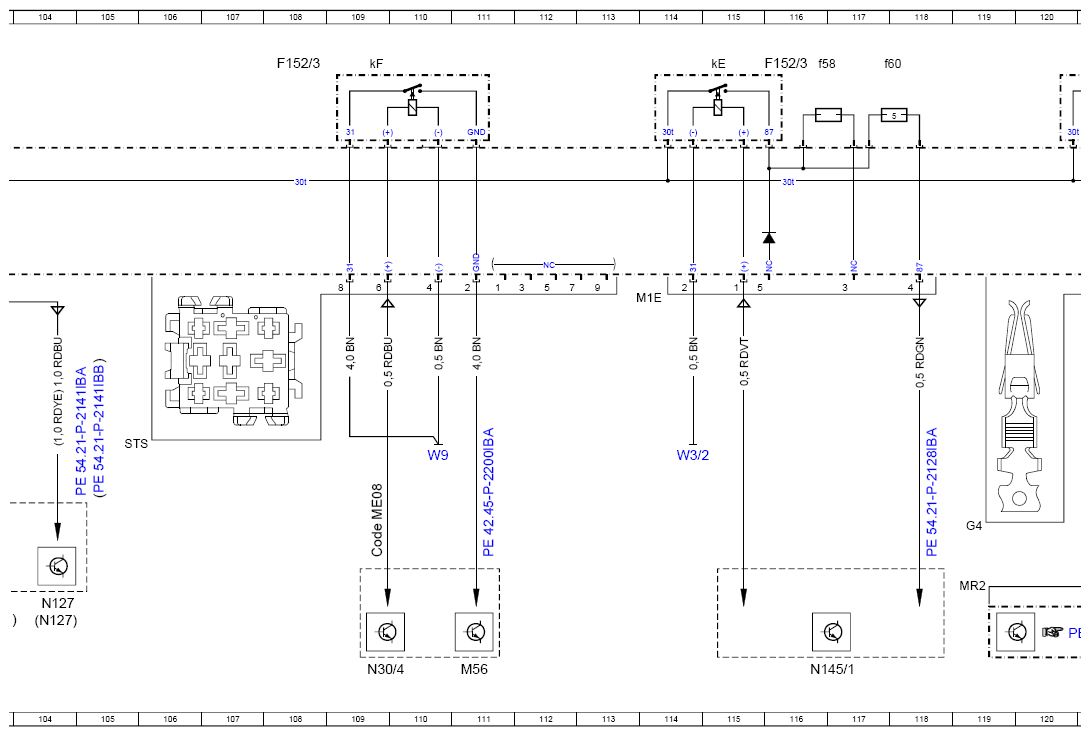

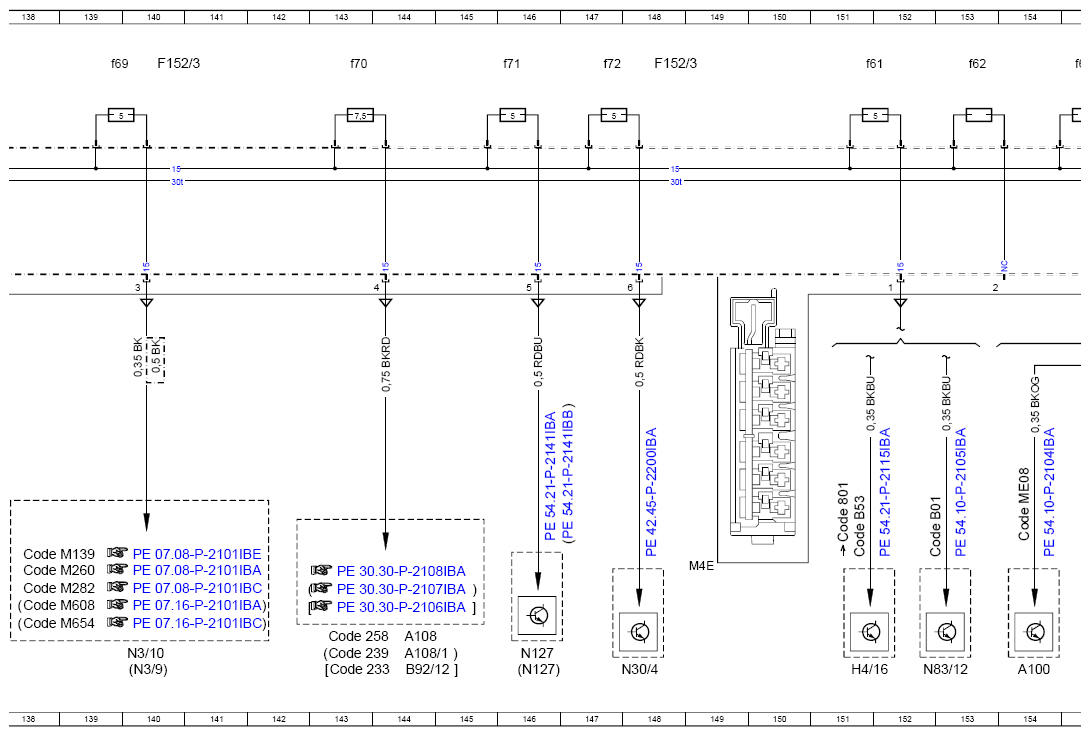

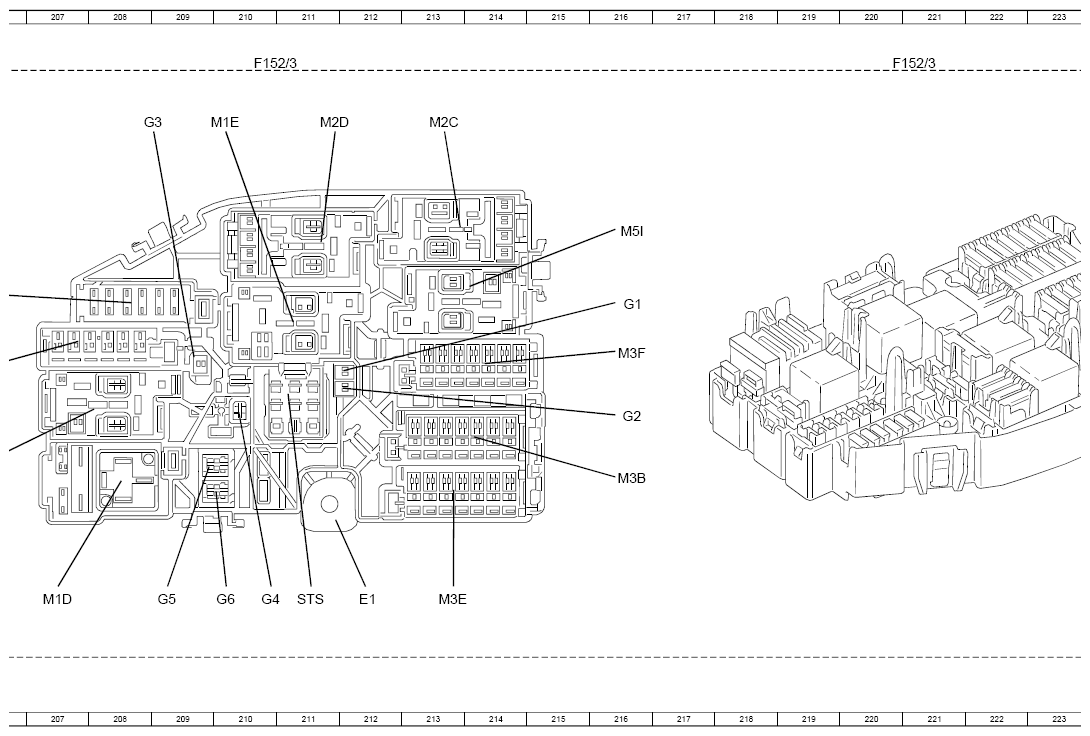

| F152/3 | Engine compartment fuse and relay module | 92L |
| F152/3 | Engine compartment fuse and relay module | 4A |
| F152/3 | Engine compartment fuse and relay module | 12A |
| F152/3 | Engine compartment fuse and relay module | 20A |
| F152/3 | Engine compartment fuse and relay module | 27A |
| F152/3 | Engine compartment fuse and relay module | 37A |
| F152/3 | Engine compartment fuse and relay module | 44A |
| F152/3 | Engine compartment fuse and relay module | 84A |
| F152/3 | Engine compartment fuse and relay module | 51A |
| F152/3 | Engine compartment fuse and relay module | 60A |
| F152/3 | Engine compartment fuse and relay module | 69A |
| F152/3 | Engine compartment fuse and relay module | 75A |
| F152/3 | Engine compartment fuse and relay module | 93A |
| F152/3 | Engine compartment fuse and relay module | 99A |
| F152/3 | Engine compartment fuse and relay module | 108A |
| F152/3 | Engine compartment fuse and relay module | 116A |
| F152/3 | Engine compartment fuse and relay module | 124A |
| F152/3 | Engine compartment fuse and relay module | 132A |
| F152/3 | Engine compartment fuse and relay module | 140A |
| F152/3 | Engine compartment fuse and relay module | 148A |
| F152/3 | Engine compartment fuse and relay module | 156A |
| F152/3 | Engine compartment fuse and relay module | 164A |
| F152/3 | Engine compartment fuse and relay module | 172A |
| F152/3 | Engine compartment fuse and relay module | 188A |
| F152/3 | Engine compartment fuse and relay module | 181A |
| F152/3 | Engine compartment fuse and relay module | 195A |
| F152/3 | Engine compartment fuse and relay module | 210A |
| F152/3 | Engine compartment fuse and relay module | 220A |
| F152/3 | Engine compartment fuse and relay module | 228A |

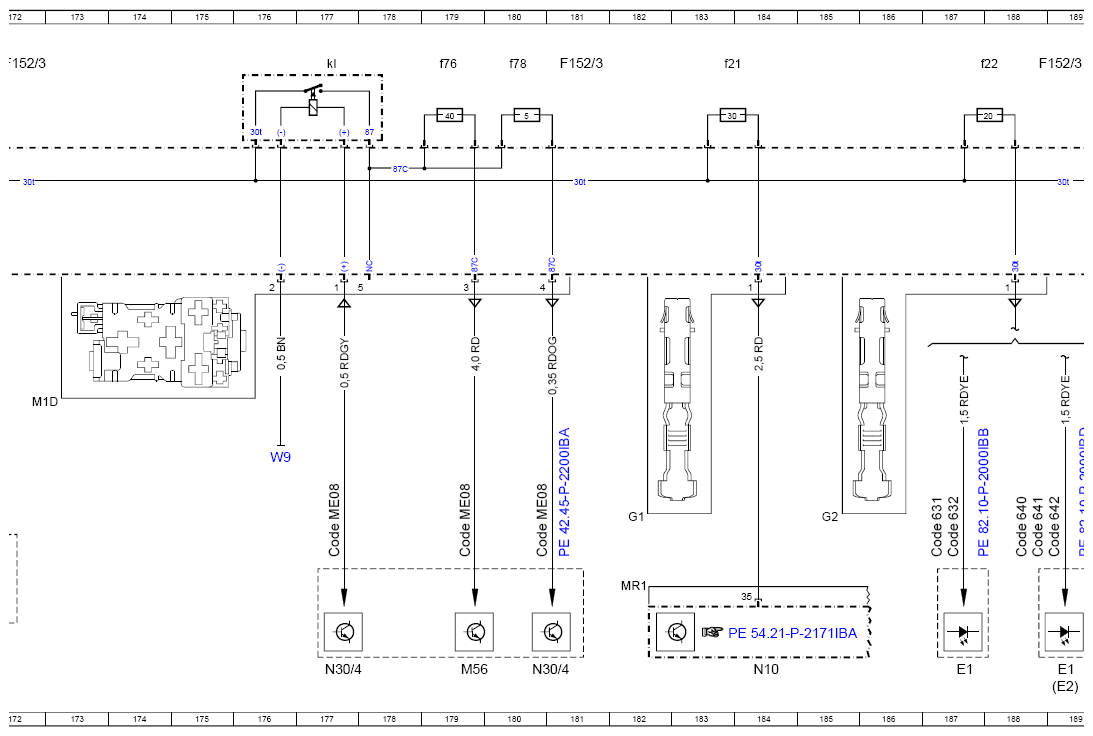

| F152/3f21 | Fuse 21 | 183A |
| F152/3f22 | Fuse 22 | 187A |

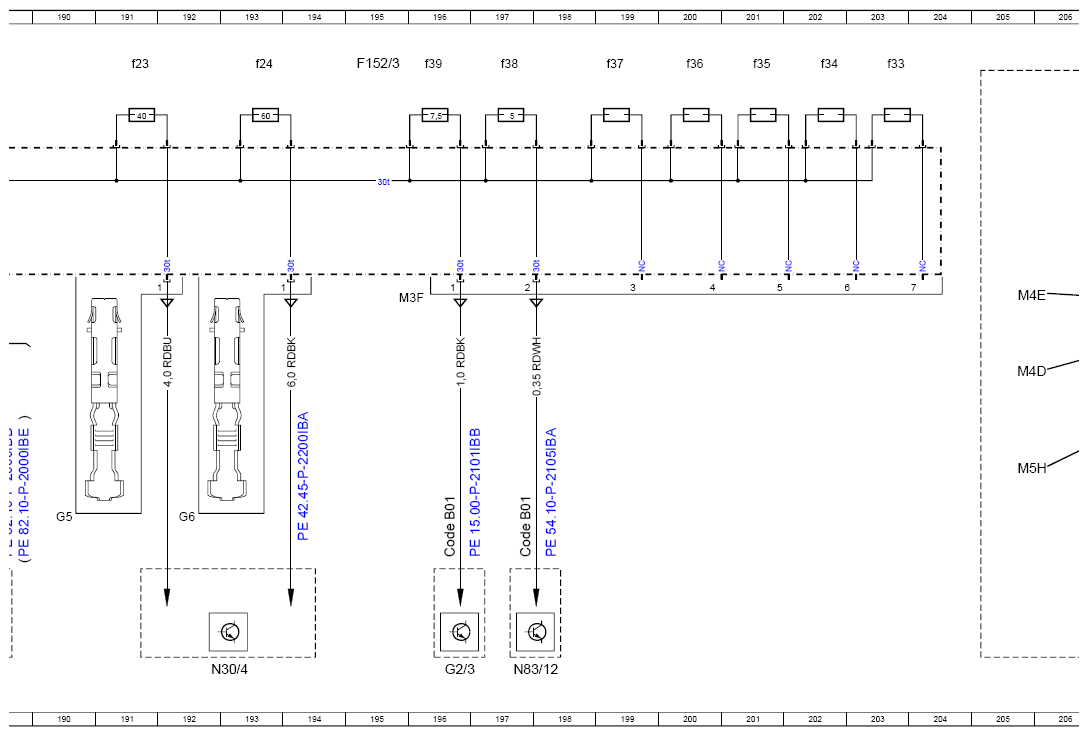

| F152/3f23 | Fuse 23 | 191A |
| F152/3f24 | Fuse 24 | 193A |

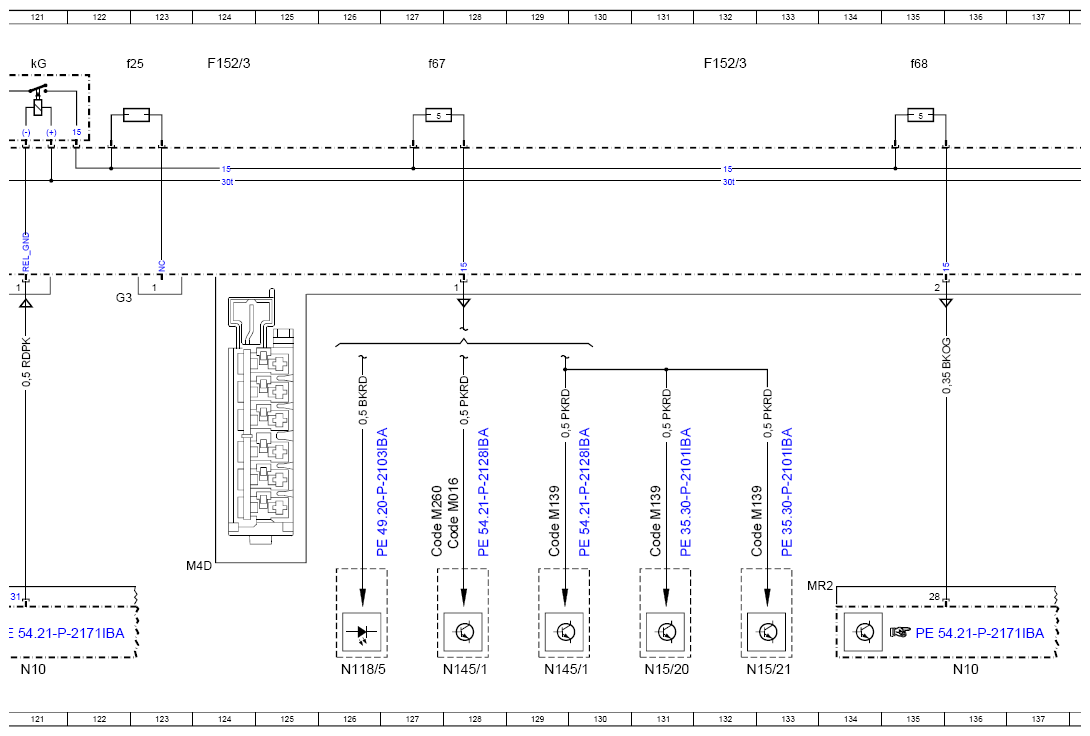

| F152/3f25 | Fuse 25 | 122A |
| F152/3f26 | Fuse 26 | 6A |
| F152/3f27 | Fuse 27 | 10A |
| F152/3f28 | Fuse 28 | 7A |
| F152/3f29 | Fuse 29 | 16A |
| F152/3f30 | Fuse 30 | 78A |
| F152/3f31 | Fuse 31 | 83A |
| F152/3f33 | Fuse 33 | 203A |
| F152/3f34 | Fuse 34 | 202A |
| F152/3f35 | Fuse 35 | 201A |
| F152/3f36 | Fuse 36 | 200A |
| F152/3f37 | Fuse 37 | 199A |
| F152/3f38 | Fuse 38 | 197A |
| F152/3f39 | Fuse 39 | 196A |
| F152/3f40 | Fuse 40 | 43A |
| F152/3f41 | Fuse 41 | 36A |
| F152/3f42 | Fuse 42 | 42A |
| F152/3f43 | Fuse 43 | 52A |
| F152/3f44 | Fuse 44 | 40A |

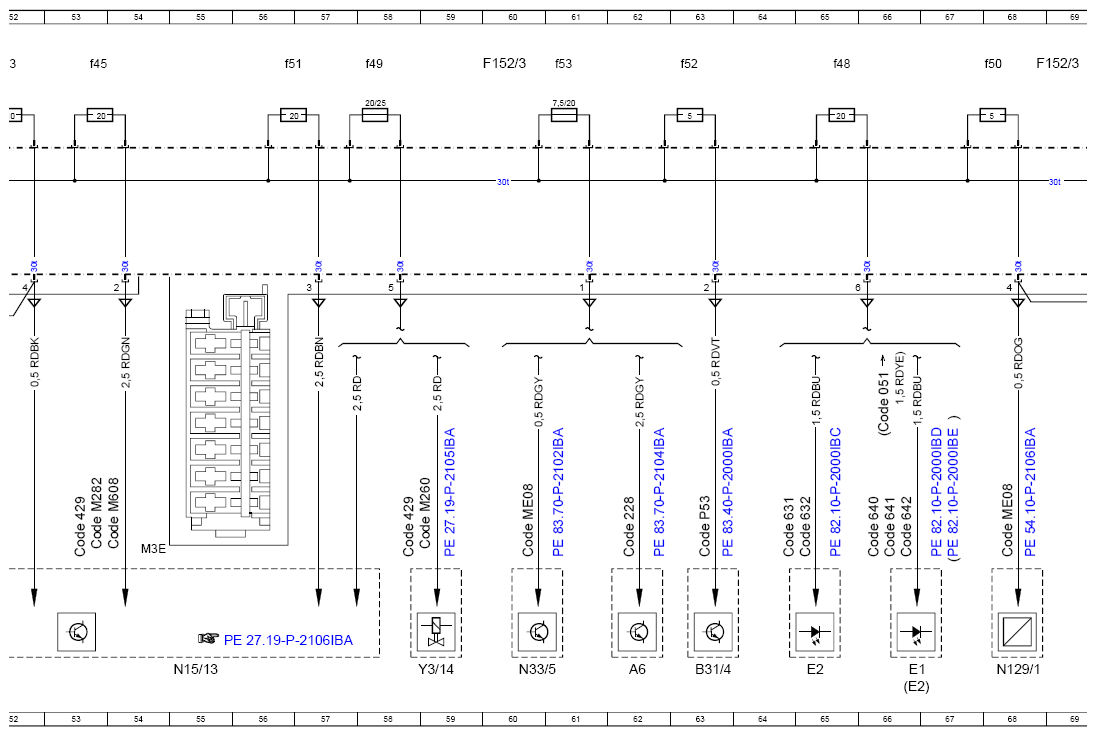

| F152/3f45 | Fuse 45 | 53A |
| F152/3f46 | Fuse 46 | 45A |
| F152/3f47 | Fuse 47 | 71A |
| F152/3f48 | Fuse 48 | 65A |
| F152/3f49 | Fuse 49 | 58A |
| F152/3f50 | Fuse 50 | 68A |
| F152/3f51 | Fuse 51 | 56A |
| F152/3f52 | Fuse 52 | 63A |
| F152/3f53 | Fuse 53 | 61A |
| F152/3f54 | Fuse 54 | 102A |
| F152/3f55 | Fuse 55 | 99A |
| F152/3f56 | Fuse 56 | 97A |
| F152/3f57 | Fuse 57 | 92A |
| F152/3f58 | Fuse 58 | 116A |
| F152/3f60 | Fuse 60 | 117A |
| F152/3f61 | Fuse 61 | 151A |
| F152/3f62 | Fuse 62 | 153A |
| F152/3f63 | Fuse 63 | 155A |
| F152/3f64 | Fuse 64 | 160A |
| F152/3f65 | Fuse 65 | 161A |
| F152/3f66 | Fuse 66 | 158A |
| F152/3f67 | Fuse 67 | 127A |
| F152/3f68 | Fuse 68 | 135A |
| F152/3f69 | Fuse 69 | 139A |
| F152/3f70 | Fuse 70 | 143A |
| F152/3f71 | Fuse 71 | 146A |
| F152/3f72 | Fuse 72 | 147A |
| F152/3f73 | Fuse 73 | 170A |
| F152/3f75 | Fuse 75 | 171A |
| F152/3f76 | Fuse 76 | 179A |
| F152/3f78 | Fuse 78 | 180A |
| F152/3kB | Circuit 87M relay | 29A |
| F152/3kC | Backup relay | 77A |
| F152/3kD | Terminal 87C relay | 90A |
| F152/3kE | Backup relay | 115A |
| F152/3kF | AMG sports suspension relay | 109A |
| F152/3kG | Engine compartment terminal 15 relay | 121A |
| F152/3kH | Circuit 50 relay | 167A |
| F152/3kI | Backup relay | 177A |
| G1/3 | 48 V battery | 156L |
| G2/3 | Belt-driven starter alternator | 196L |
| H4/134 | Sound generator 2 | 158L |
| H4/16 | Sound generator | 151L |
| M1 | Starter | 170K |
| M13/7 | Transmission oil cooling coolant circulation pump | 92K |
| M13/7 | Transmission oil cooling coolant circulation pump | 92K |
| M16/57 | Exhaust flap controller | 101K |
| M16/91 | Exhaust flap actuator motor | 100L |
| M16/91 | Exhaust flap actuator motor | 100L |
| M2/39 | Lower radiator trim flap actuator motor | 97L |
| M4/7 | Fan motor | 102K |
| M4/7 | Fan motor | 103K |
| M44 | Charge air cooler circulation pump | 92L |
| M44 | Charge air cooler circulation pump | 97K |
| M45/5 | Low-temperature circuit circulation pump | 97K |
| M56 | Electric vacuum pump | 111L |
| M56 | Electric vacuum pump | 179L |
| M6/1 | Wiper motor | 40L |
| M75/10 | High-voltage battery coolant pump | 80L |
| M75/14 | Power electronics/transmission coolant pump | 95K |
| N10 | Central control module | 43L |
| N10 | Central control module | 121L |
| N10 | Central control module | 136L |
| N10 | Central control module | 184L |
| N118/5 | AdBlue® control unit | 126L |
| N12/2 | Sound generator control unit | 159L |
| N127 | Drivetrain control unit | 90K |
| N127 | Drivetrain control unit | 104K |
| N127 | Drivetrain control unit | 48L |
| N127 | Drivetrain control unit | 77L |
| N127 | Drivetrain control unit | 77L |
| N127 | Drivetrain control unit | 89K |
| N127 | Drivetrain control unit | 104K |
| N127 | Drivetrain control unit | 146L |
| N127 | Drivetrain control unit | 146L |
| N129/1 | Power electronics control unit | 68L |
| N129/1 | Power electronics control unit | 155L |
| N145/1 | Drive unit control unit | 116L |
| N145/1 | Drive unit control unit | 129L |
| N145/1 | Drive unit control unit | 128L |
| N15/13 | Double clutch transmission control unit | 55L |
| N15/20 | Left rear axle differential control unit | 131L |
| N15/21 | Right rear axle differential control unit | 132L |
| N3/10 | ME-SFI [ME] control unit | 27L |
| N3/10 | ME-SFI [ME] control unit | 23L |
| N3/10 | ME-SFI [ME] control unit | 37L |
| N3/10 | ME-SFI [ME] control unit | 140L |
| N3/10 | ME-SFI [ME] control unit | 166L |
| N3/10 | ME-SFI [ME] control unit | 166K |
| N3/10 | ME-SFI [ME] control unit | 166L |
| N3/9 | CDI control unit | 27L |
| N3/9 | CDI control unit | 37L |
| N3/9 | CDI control unit | 30L |
| N3/9 | CDI control unit | 140L |
| N3/9 | CDI control unit | 168K |
| N3/9 | CDI control unit | 168L |
| N30/4 | Electronic Stability Program control unit | 109L |
| N30/4 | Electronic Stability Program control unit | 148L |
| N30/4 | Electronic Stability Program control unit | 177L |
| N30/4 | Electronic Stability Program control unit | 192L |
| N30/4 | Electronic Stability Program control unit | 180L |
| N33/5 | High-voltage PTC heater | 60L |
| N37/7 | Control unit of NOx sensor upstream of SCR catalytic converter | 19K |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 20L |
| N74 | Soot particulate sensor control unit | 19L |
| N83/12 | 48 V on-board electrical system DC/DC converter control unit | 152L |
| N83/12 | 48 V on-board electrical system DC/DC converter control unit | 197L |
| R62 | Voltage dip limiter | 171K |
| S146 | Pedal operation monitor switch | 162L |
| S18/7 | Footwell illumination switch | 162L |
| S7 | High-voltage disconnect device | 46L |
| W3/2 | Left front wheel arch ground point | 22L |
| W3/2 | Left front wheel arch ground point | 25L |
| W3/2 | Left front wheel arch ground point | 76G |
| W3/2 | Left front wheel arch ground point | 90G |
| W3/2 | Left front wheel arch ground point | 114G |
| W3/2 | Left front wheel arch ground point | 168G |
| W9 | Left front ground point | 110G |
| W9 | Left front ground point | 176G |
| Y133 | Coolant pump switchover valve | 92L |
| Y133/2 | Battery coolant pump switchover valve | 78L |
| Y16/10 | Condensation prevention switchover valve | 100L |
| Y19/1 | High-voltage battery cooling system shutoff valve | 85L |
| Y19/3 | Front evaporator shutoff valve | 82L |
| Y19/3 | Front evaporator shutoff valve | 85L |
| Y3/14 | Dual clutch transmission fully integrated transmission control electrohydraulic controller unit | 59L |
