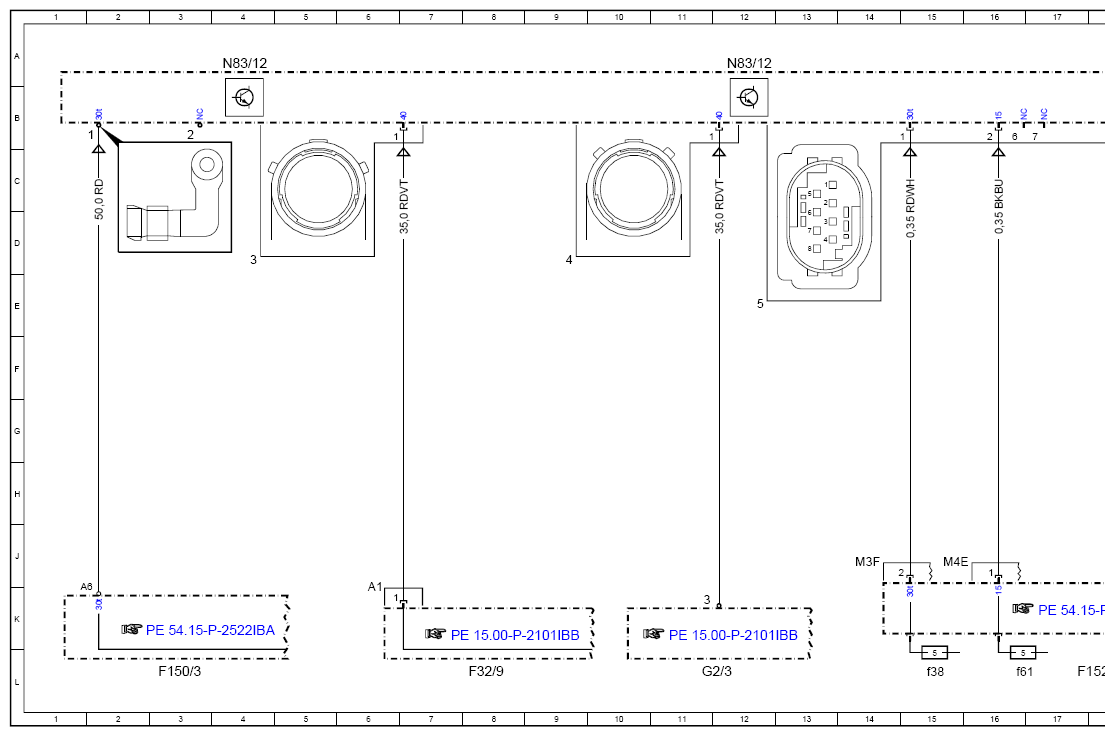

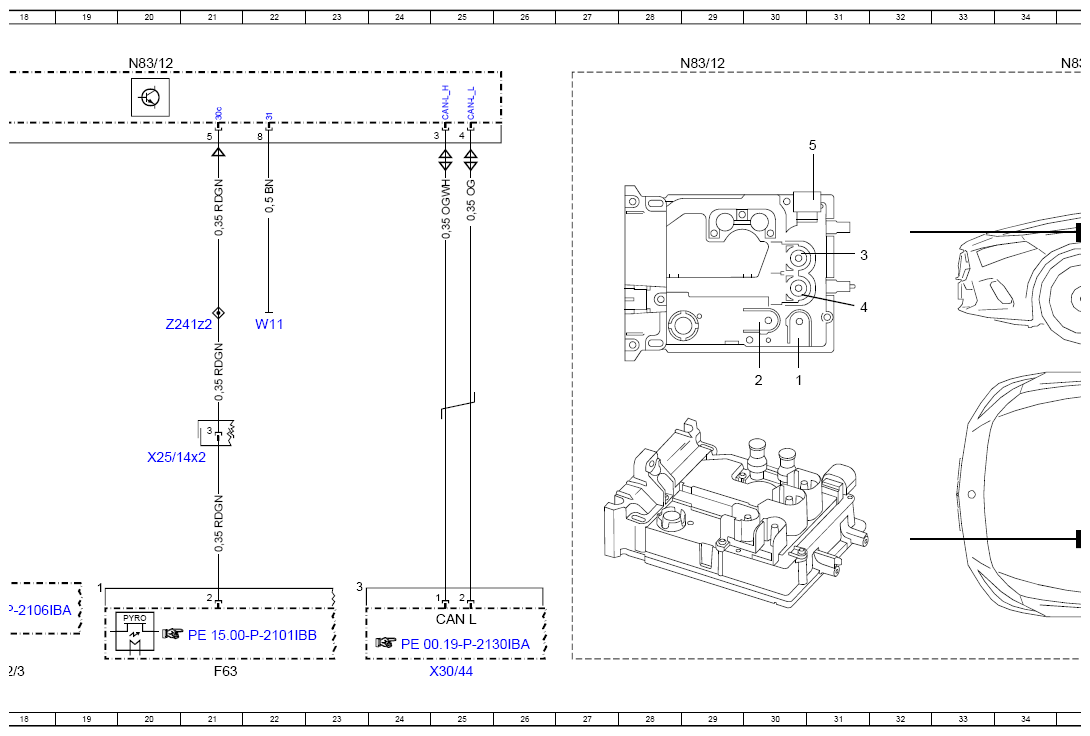

Wiring Diagram For DC/DC Converter Control Unit - PE54.10-P-2105-97IBA
Model 177
with code B01 (48V technology)
N83/12
| Code: | Designation: | Position: |
|---|---|---|

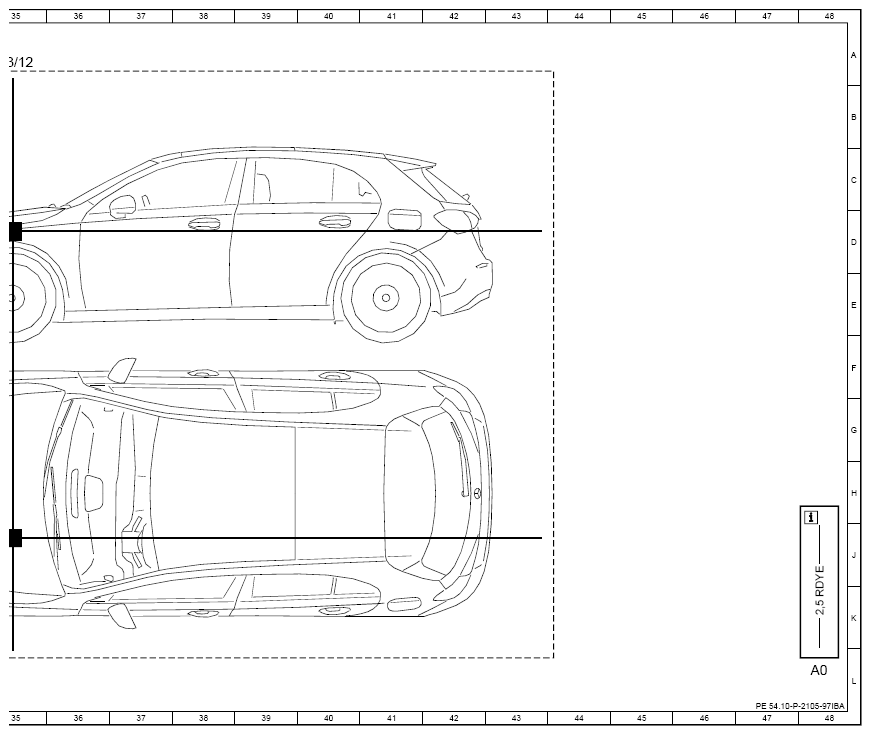

| A0 | Use of wiring diagrams | 48L |
| CAN L | Hybrid CAN | 25K |
| F150/3 | Engine compartment pre-fuse box | 3L |
| F152/3 | Engine compartment fuse and relay module | 18L |
| F152/3f38 | Fuse 38 | 15L |
| F152/3f61 | Fuse 61 | 16L |
| F32/9 | 48 V on-board electrical system engine compartment pre-fuse box | 8L |
| F63 | Pyrofuse | 21L |
| G2/3 | Belt-driven starter alternator | 11L |
| N83/12 | DC/DC converter (48 V) control unit | 4A |
| N83/12 | DC/DC converter (48 V) control unit | 12A |
| N83/12 | DC/DC converter (48 V) control unit | 20A |
| N83/12 | DC/DC converter (48 V) control unit | 29A |
| N83/12 | DC/DC converter (48 V) control unit | 35A |
| W11 | Combustion engine ground point | 22E |
| X25/14x2 | Right engine compartment/vehicle interior electrical connector | 20H |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 25L |
| Z241z2 | Circuit 30c connector sleeve | 21E |
