Remove Crossbar Under Rear Seat - Ar63.40-P-1191-03MFA

Model 118.3/6

Model 177.0/1/9

Model 247.0/6/7

The following operation steps are shown on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

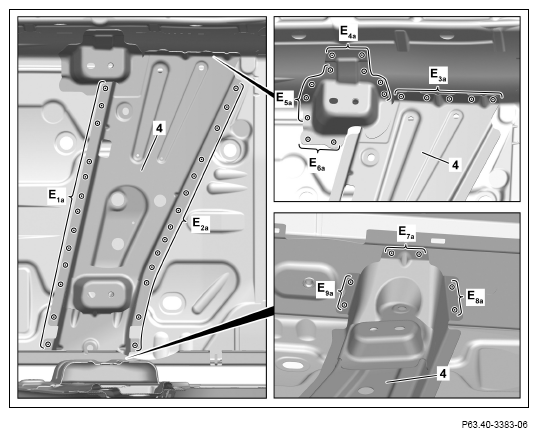

1. Expose spot welds on the crossbar under front seat at the rear (4) and cut off (areas E_1a , E_2a , E_3a , E_4a , E_5a , E_6a , E_7a , E_8a , and E_9a ).
2. Remove crossbar under seat at the rear (4).
3. Grind all spot welds down to bare metal on the main floor.
4. Remove grinding dust and contamination.

Courtesy of MERCEDES-BENZ USA
