Separate Inner B-Pillar - Ar63.20-P-1350-01MFA

Model 177.0/1/9

Model 247.0

The following operation steps are shown on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.

The superordinate service document as well as the safety information in the service document must be observed.

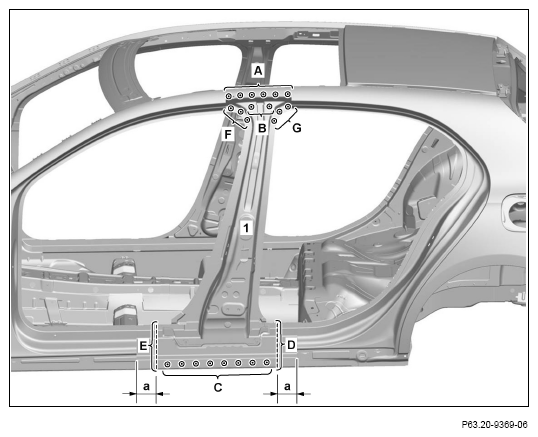

1. Mark separating points on B-pillar side wall (1) and disconnect (areas E and D).

   Do not make the cuts too deep.

   Otherwise the components below can be damaged and weakened.

   Dimension

   a = approx. 80 mm

2. Expose spot welds on B-pillar (1) at the bottom and cut off (area C).
3. Expose spot welds on B-pillar (1) at the top and cut off (areas F and G).
4. Drill out spot welds on B-pillar (1) with Ø 6.5 mm (areas A and B).

   Courtesy of MERCEDES-BENZ USA

5. Expose spot welds on reinforcement plate (2) and cut off (areas I and J).
6. Remove reinforcement plate (2).

   Courtesy of MERCEDES-BENZ USA

7. Heat B-pillar (1) in the cross-hatched areas (areas K).
8. Remove B-pillar (1).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

9. Sand down mating surfaces to bare metal in cross-hatched areas.

   Sand down spot weld flanges to bare metal on both sides.

10. Remove grinding dust and drill chips.
11. Apply zinc dust paint to insides of spot weld flanges onto connecting flanges that are no longer accessible after installing side roof paneling.

    Bonding surfaces may not be coated with zinc dust paint (area L).

    Otherwise adhesion problems can occur.

    Observe pretreatment of bonding surfaces.
