Install Mount For Rear Lamp Unit - Ar63.50-P-0004-03MFV
Model 177.1/9
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 177.1/9 | ||
|---|---|---|---|---|
| BE60.00-P-1017-01JA | Outer tail lamp to side wall | Dimension "Q" | mm | 1 (+1) |
| For picture, see | AR60.00-P-0700-01MFA | |||
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 177.1/9 | ||
|---|---|---|---|---|
| BE60.00-P-1018-01JA | Outer tail lamp to bumper at rear | Dimension "R" | mm | 1, 5 (+1) |
| For picture, see | AR60.00-P-0700-01MFA | |||
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 177.1/9 | ||
|---|---|---|---|---|
| BE60.00-P-1020-01JA | Outside of taillamp to inside of taillamp | Dimension "T" | mm | 3, 5 (+1/-0, 5) |
| For picture, see | AR60.00-P-0700-01MFA | |||
The following operation steps are shown on the left side of the vehicle. In case of damage, these steps must be similarly performed on the right side of the vehicle.
The superordinate service document as well as the safety information in the service document must be observed.
- Install lamp unit mount (1) and fit.
- Install lamp unit.
- Check gaps using
feeler gauge and adjust.
- Fix lamp unit mount (1) in place.
- Remove lamp unit.

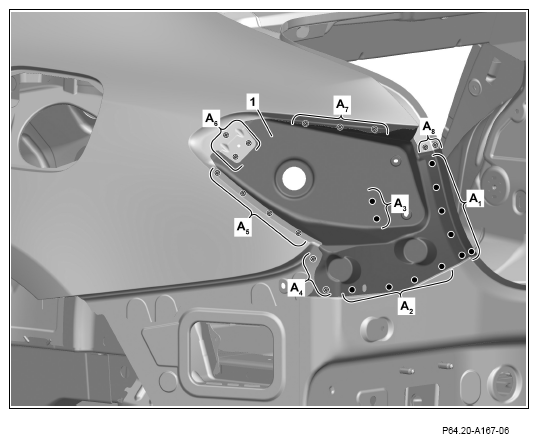

- Lamp unit mount (1)
(areas A1 , A2 and A3 ).
- Lamp unit mount (1)
(areas A4 , A5 , A6 , A7 , and A8 ).
- Clean weld joints.
