Carrying Out Distance And Comparison Measurements On Front Axle - AR40.30-P-0402-01CW
MODEL 172, 204, 207
| 16.3.09 | Value changed: Dimension, V3 | *BE40.30-P-1001-06I |
| Number | Designation | Model 172 | Model 204, 207 | ||
|---|---|---|---|---|---|
| BE40.30-P-1001-06I | Dimension | V1 | mm | 930 (±2) | 810 (±2) |
| V2 | mm | 1314 (±2) | 1214 (±2) | ||
| V3 | mm | 948 (±2) | 942 (±2) | ||
| V4 | mm | 840 (±2) | 852 (±2) | ||
| V5 | mm | 860 (±2) | 818 (±2) | ||
| See picture | AR40.30-P-0402-01CW | AR40.30-P-0402-01CW | |||
The measuring set is designed in such a way, that the measuring bolts, according to the measuring points at the vehicle, can be screwed together out of mounting bolts, extensions and measuring tips/bolts.
The configuration of the measuring bolts is shown in the Table, where the digits in the column headed "Measuring bolt configuration" are the special tool end numbers.
For example: 02/08/10 = 168 589 07 63 02 (support stud)
168 589 07 63 08 (extension)
168 589 07 63 10 (measuring tip)
| Clearance | Model 172: Measuring bolt design | Model 204, 207: Measuring bolt design | Telescopic measuring rod |
|---|---|---|---|
| V1 | 02/06//08/05/socket | 02/07/05/socket wrench bit | 124 589 01 19 00 |
| V2 | 02/06/08/05/socket wrench bit | 02/08/05/socket wrench bit | 124 589 02 19 00 |
| V3 | Left: 02/08/05/socket Right: 02/08/06/05/socket | Left: 02/08/05/socket Right: 02/08/06/05/socket | 124 589 02 19 00 |
| V4 | 02/08/05/socket wrench bit | 02/08/05/socket wrench bit | 124 589 01 19 00 |
| V5 | 02/08/05/socket wrench bit | 02/08/05/socket wrench bit | 124 589 01 19 00 |

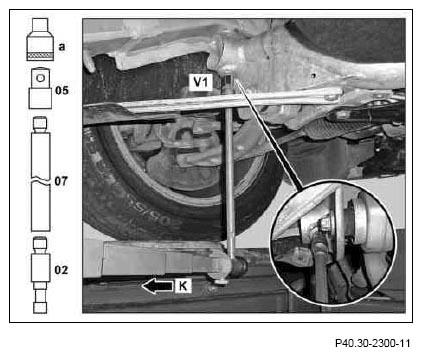

- Measure distance dimension (V1) from check point (K) to center of bolt head of rear mount for front axle carrier. Measure on the left and right side in each case.
If necessary, unscrew and screw in bolts and check for deformation.
Shown on model 204.0 without 4MATIC

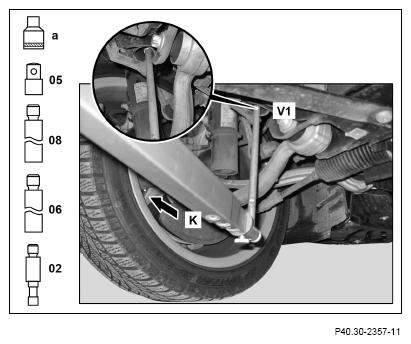

Shows model 172

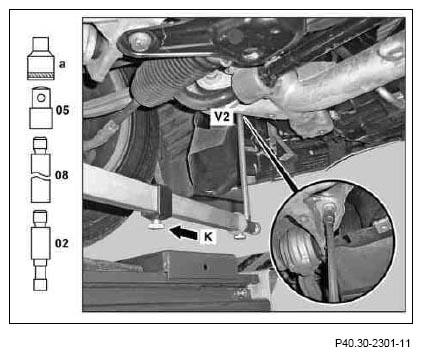

- Measure distance dimension (V2) from check point (K) to center of bolt head of front mount for front axle carrier. Measure on the left and right side in each case.
Shown on model 204.0 without 4MATIC

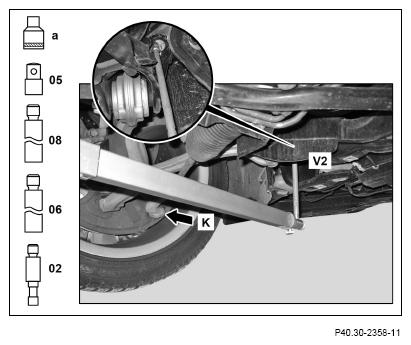

Shows model 172

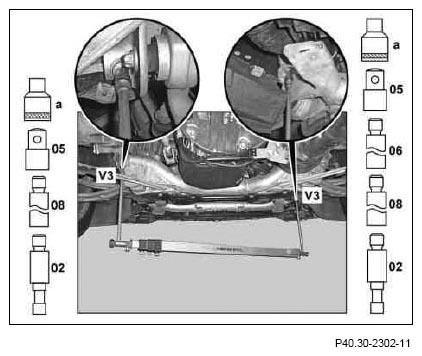

- Measure distance dimensions (V3) diagonally between the centering point of bolt heads of front and rear mount of front axle carrier.
Shown on model 204.0 without 4MATIC

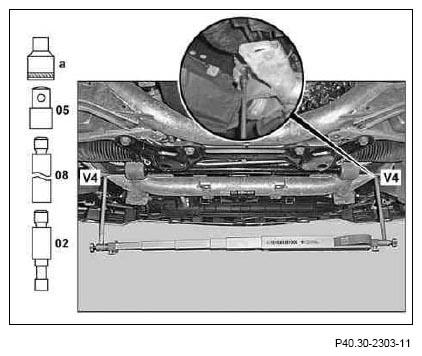

- Measure distance dimension (V4) from centering point of bolt heads between front bearings of the front axle carrier.
Shown on model 204.0 without 4MATIC

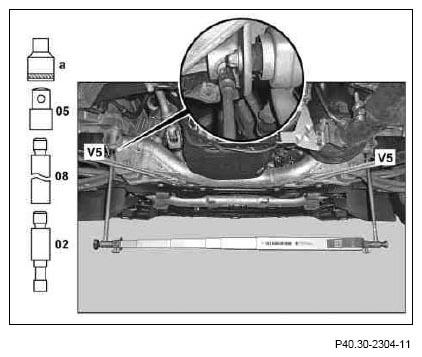

- Measure distance dimension (V5) from centering point of bolt heads between rear bearings of the front axle carrier.
Shown on model 204.0 without 4MATIC
