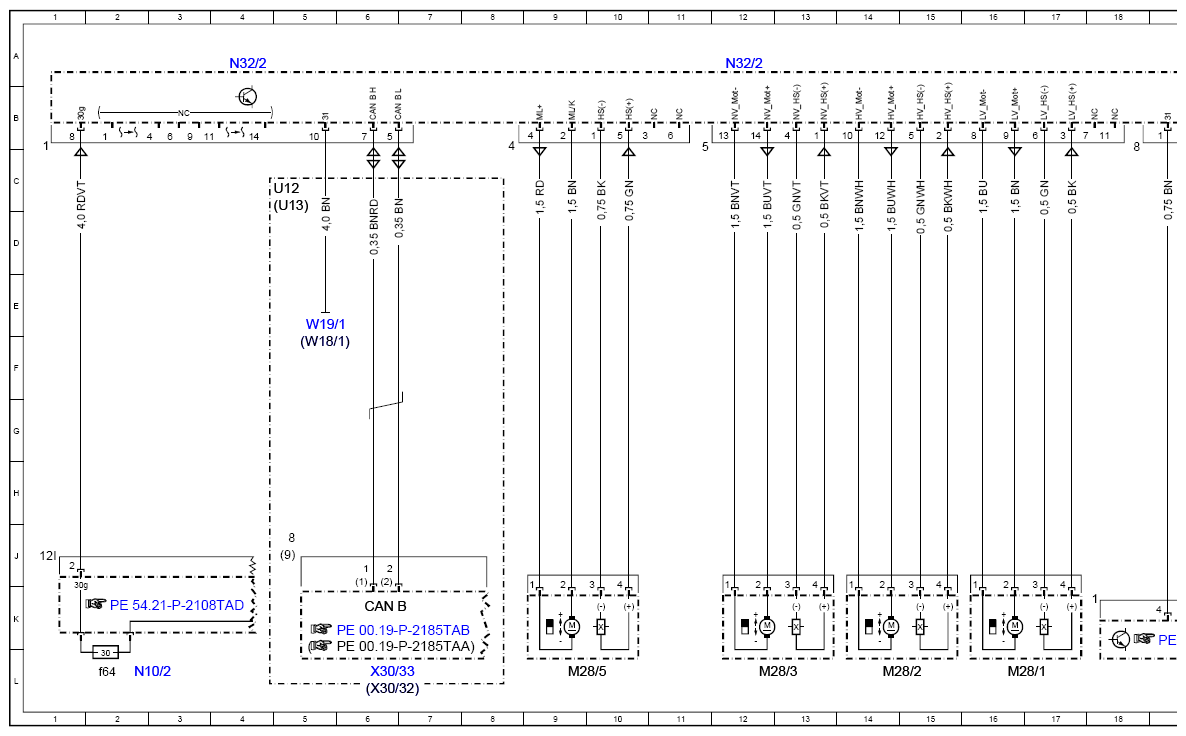

Wiring Diagram Of Front Passenger-Side Seat Control Module - PE91.29-P-2105-97TAA
Model 172.4
with code 242 (Front passenger seat, electrically adjustable with memory function)
Control unit N32/2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| CAN B | Interior CAN | 6K |
| M28/1 | Front passenger seat fore/aft adjustment motor | 16L |
| M28/2 | Front passenger seat height adjustment motor | 14L |
| M28/3 | Front passenger seat inclination adjustment motor | 12L |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 9L |
| N10/2 | Rear SAM control unit with fuse and relay module | 2L |
| N10/2f64 | Fuse 64 | 2L |
| N32/2 | Front passenger seat control unit | 4A |
| N32/2 | Front passenger seat control unit | 12A |
| N32/2 | Front passenger seat control unit | 20A |
| N32/24 | Front passenger seat lumbar support adjustment control unit | 19L |
| U12 | Valid for left-hand drive vehicles | 5C |
| U13 | Valid for right-hand drive vehicles | 5C |
| W18/1 | Center rear crossmember ground point | 5F |
| W19/1 | Right front seat crossmember ground point | 5E |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 6L |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 6L |
