Wiring Harness For Emergency Actuation Of Rear Shelf - WF58.50-P-7730-02W
MODEL 171.4, 172.4, 231

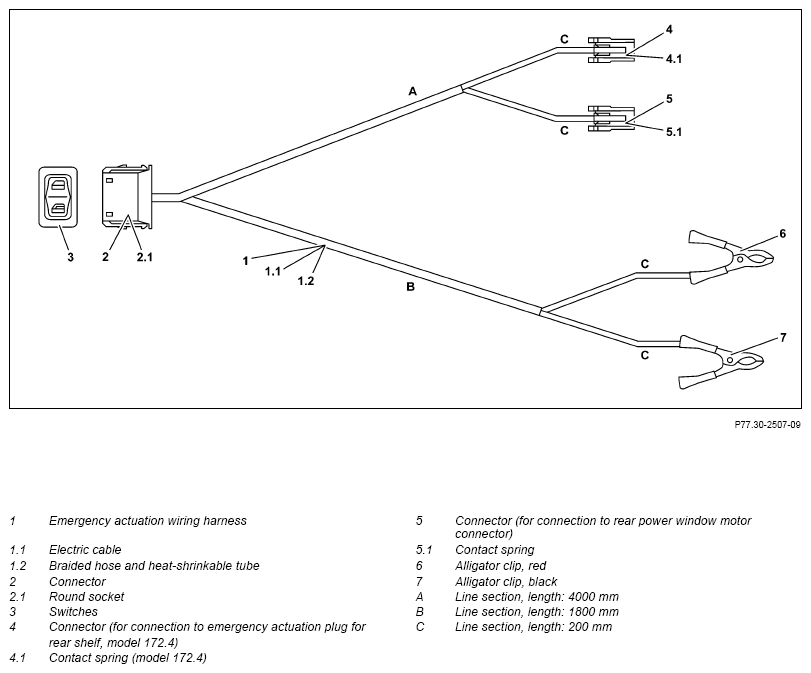

Schematic representation (not to scale)
Prepare emergency actuation wiring harness (1) as shown.
Note pin assignment at connector (2):
Slot 1: Output for consumer "positive"
Slot 2: Output for consumer "negative"
Slot 3: Input for voltage source "positive"
Slot 4: Input for voltage source "negative"
Use alligator clip, red (6) for line at slot 3 ("Positive" voltage source input).
Use alligator clip, black (7) for line at slot 4 ("Negative" voltage source input).
Emergency actuation wiring harness (1) is also used for emergency actuation of the rear side windows.
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| A 013 545 15 26 | Contact spring | 2 |
| A 220 545 55 28 | Pin socket | 1 |
| A 126 820 81 10 | Switches | 1 |
| A 001 545 44 26 | Round socket | 4 |
| A 000 821 26 26 | Connector | 1 |
| A 000 821 07 38 | Cover | 1 |
| A 037 545 13 28 | Housing | 1 |
| A 035 545 74 28 | Contact spring | 2 |
| - | Electric cable, red, cable cross-section 2.5 mm2 (length: 6600 mm) | - |
| - | Electric cable, black, cable cross-section 2.5 mm 2 (length: 6600 mm) | - |
| - | Braided hose Ø 3-9 mm polyester (length as required) | - |
| - | Heat-shrinkable tube with inner adhesive Ø 8-2 mm (length as required) | - |
| - | Alligator clip 20 A, red, insulated | 1 |
| - | Alligator clip 20 A, black, insulated | 1 |
