Remove/Install Front End Crossmember - AR62.30-P-2300LWA
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
Model 213 with engine 254, 256, 264, 274, 276, 642, 654, 656
Model 238
Shown on model 213 with engine 264
Shown on model 238 with engine 264 with removed bumper
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Open engine hood and position upright. | ||
| 2 | Disconnect the engine air intake ducts from the air duct segment (2). | ||

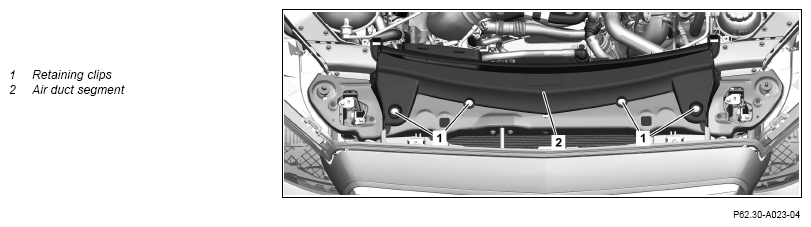

| 3 | Remove the retaining clips (1) and remove the air duct segment (2). | Fig 1 | |

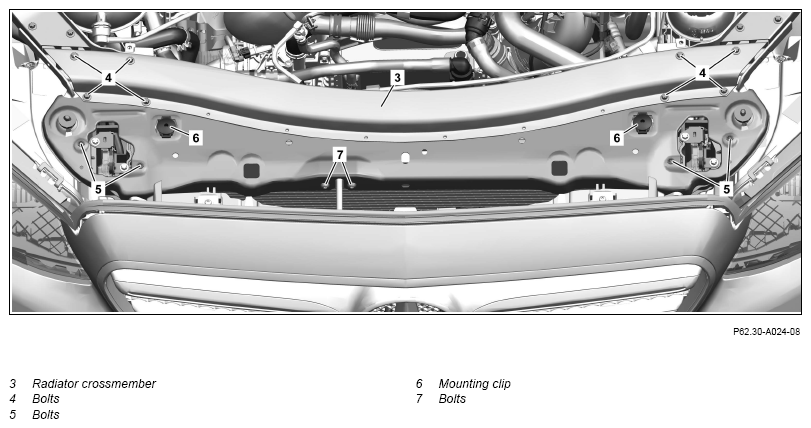

| 4 | Remove screws/bolts (4). | *BA62.30-P-1007-01H | |
| 5 | Remove bolts (5). | ||
| 6 | Remove screws (7). | *BA62.30-P-1008-01H | |
| 7 | Remove screws (8). | *BA62.30-P-1003-01H | |
| 8 | Remove screw (9). | Model 238 |
*BA62.30-P-1003-01H |
| 9 | Remove retaining clips (6). | ||

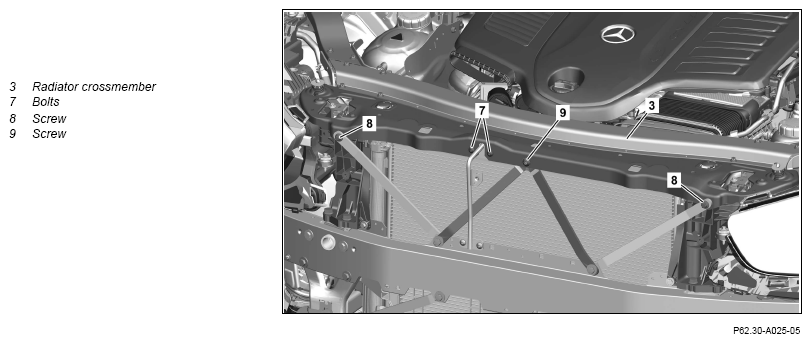

| 10 | Lift the radiator crossmember (3) up and out o the vehicle. | ||
| 11 | Install in the reverse order |
CROSS MEMBER AND FRONT REINFORCEMENT
| Number | Designation | Model 213 | Model 238 | ||
|---|---|---|---|---|---|
| BA62.30-P-1003-01H | Bolt, strut to cross member | M8 | Nm | 20 | 20 |
CROSS MEMBER AND FRONT REINFORCEMENT
| Number | Designation | Model 213 | Model 238 | |
|---|---|---|---|---|
| BA62.30-P-1007-01H | Screw, front module carrier/cross strut to body/angle bracket for front module carrier | Nm | 11 | 11 |
CROSS MEMBER AND FRONT REINFORCEMENT
| Number | Designation | Model 213 | Model 238 | |
|---|---|---|---|---|
| BA62.30-P-1008-01H | Bolt, lock striker to cross member/front-module carrier | Nm | 10 | 10 |
