Remove Suspension Strut Tower - Ar62.20-P-1232-01LW

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.

Model 205

Model 213

Model 238

Model 253

Model 293

The next steps are shown on the left side of the vehicle on model 205 and must be performed in the same way on the right side in the event of damage.

Courtesy of MERCEDES-BENZ USA

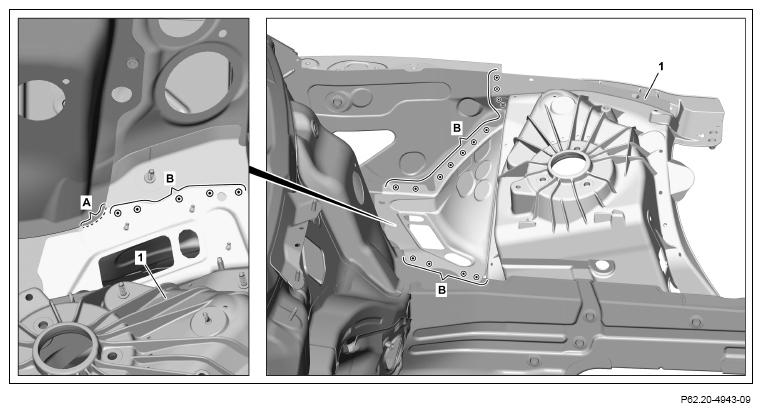

Mark separating point on suspension strut tower (1) and cut (area A).
Do not cut too deeply.

Otherwise the components below can be damaged and weakened.
Expose spot welds on suspension strut tower (1) and cut off (area B).

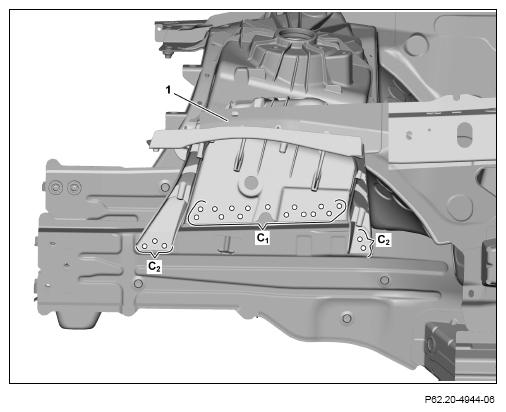

Expose self-piercing riveting on suspension strut tower (1) and drill out with a diameter of 6 mm (area C₁ and C₂ ).
Depending on the hardness of the individual punch rivets it may be necessary to spot-drill the punch rivets and knock them out from the opposite side (area C₁ ).

Courtesy of MERCEDES-BENZ USA

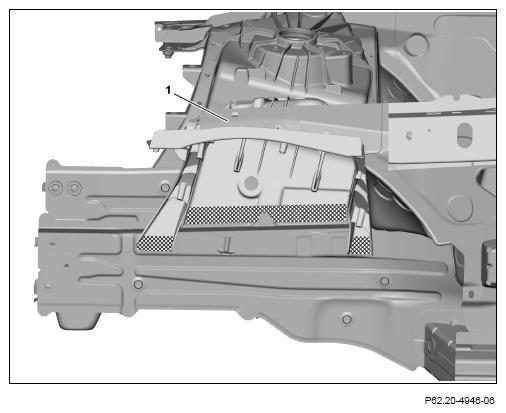

Heat suspension strut tower (1) in crosshatched areas.
Cross-hatched areas are bonded with adhesive.

Courtesy of MERCEDES-BENZ USA

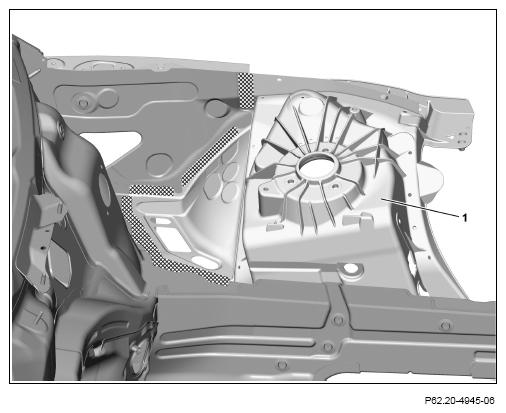

Heat suspension strut tower (1) in crosshatched areas.
Cross-hatched areas are bonded with adhesive.
Remove suspension strut tower (1).

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

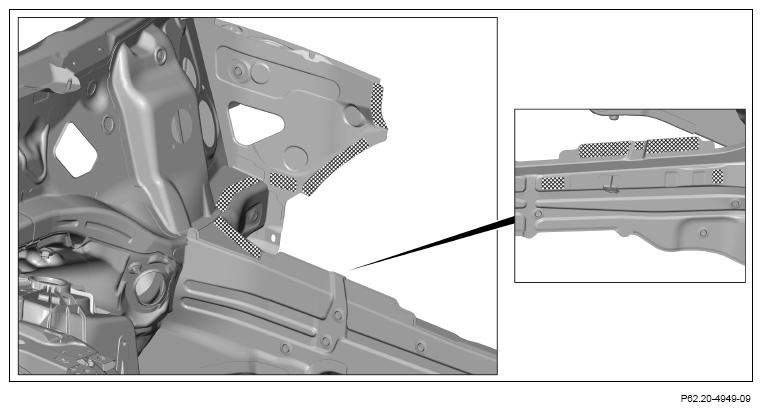

Grind mating surfaces down to bare metal in cross-hatched areas.
Sand down spot weld flanges to bare metal on both sides.
Remove grinding dust and drill chips.
Observe pretreatment of bonding surfaces.
