Prepare Suspension Strut Tower For Installation - Ar62.20-P-1232-03LW
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
Model 213
Model 238
Model 253
Model 293
The next steps are shown on the left side of the vehicle on model 205 and must be performed in the same way on the right side in the event of damage.

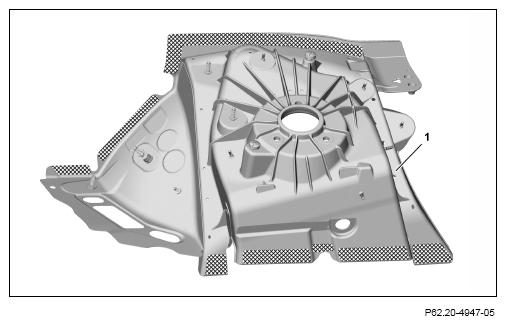

- Grind mating surfaces on suspension strut tower (1) down to bare metal in crosshatched areas.
Sand down spot weld flanges to bare metal on both sides.
- Remove grinding dust.
Observe pretreatment of bonding surfaces.

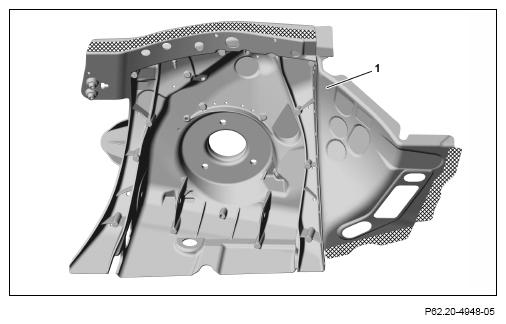

- Grind mating surfaces on suspension strut tower (1) down to bare metal in crosshatched areas.
- Remove grinding dust.
