Partially Install Upper Front Longitudinal Member - Ar62.20-P-1287-03LW

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.

Model 205

Model 213

Model 238

Model 253

Model 293

The next steps are shown on the left side of the vehicle on model 205 and must be performed in the same way on the right side in the event of damage.

  1. Install upper front longitudinal member (1), fit with welding device and fix in place.
  2. Drill rivet holes on upper front longitudinal member (1) with ø 6.7 mm (areas A and B).

    IMPORTANT Drill rivet holes from inside through present hole in body (area B).

  3. Remove upper front longitudinal member (1) and welding device.
  4. Deburr drill holes on upper front longitudinal member (1) and body on both sides.
  5. Remove drilling chips.

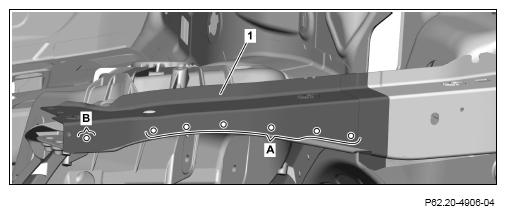

    G12824006Courtesy of MERCEDES-BENZ USA
  6. Apply 2-component adhesive to body in cross-hatched areas.

    IMPORTANT Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

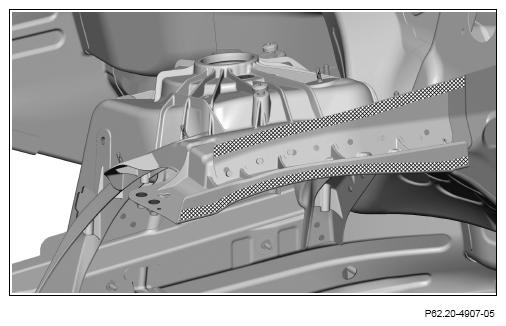

    G12824007Courtesy of MERCEDES-BENZ USA
  7. Install upper front longitudinal member (1), fit with welding device and fix in place.
  8. Rivet upper front longitudinal member (1) with ø 6.5x12.5 rivets (areas C and D).
  9. Upper front longitudinal member (1) POLARIZATION RESISTANCE SINGLE ROW SPOT WELD (area E).

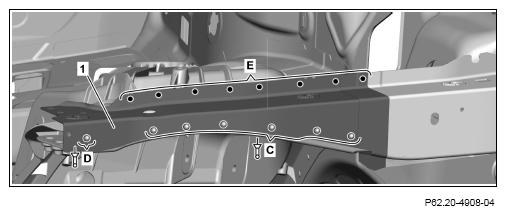

    G12824008Courtesy of MERCEDES-BENZ USA
  10. Upper front longitudinal member (1) SHIELDED GAS SEAM WELD

    IMPORTANT Inert gas weld in intervals and allow welding area to cool down in between. This reduces heat distortion.

  11. Remove welding device.
  12. Grind inert gas weld down flat on upper front longitudinal member (1) (area F).

    IMPORTANT Grind down flat only in beaded areas and contact surfaces of strut.

    G12824009Courtesy of MERCEDES-BENZ USA

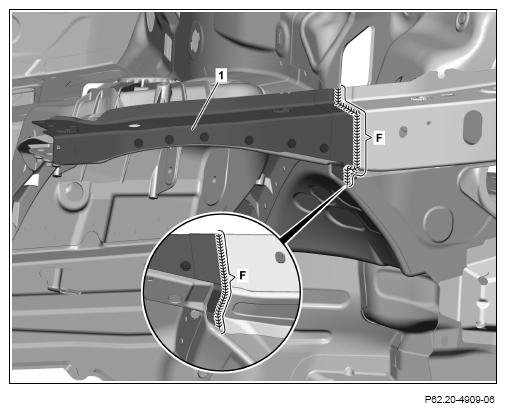

    G12824010Courtesy of MERCEDES-BENZ USA
  13. Install strut (2), fit and fix in place
  14. Drill rivet holes on strut (2) with ø 6.7 mm bit (areas G, H, I, J, K, L and M).
  15. Remove strut (2).
  16. Deburr rivet holes in strut (2) and body on both sides.
  17. Remove drilling chips.
  18. Coat insides of riveted joints with zinc dust paint.

    NOTES Do not coat bonding surfaces with zinc dust paint (areas G, H, J and L).

    Otherwise adhesion problems may occur.

    IMPORTANT Observe pretreatment of bonding surfaces.

  19. Apply 2-component adhesive to body in cross-hatched areas.

    IMPORTANT Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    G12824011Courtesy of MERCEDES-BENZ USA

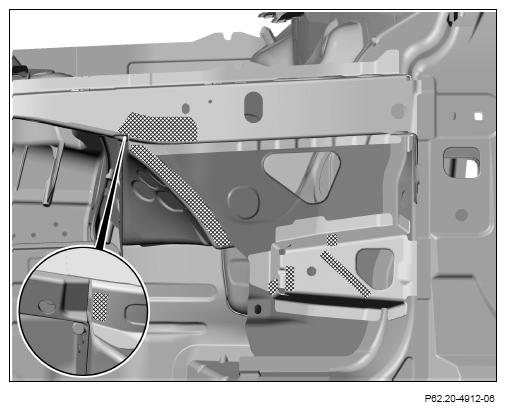

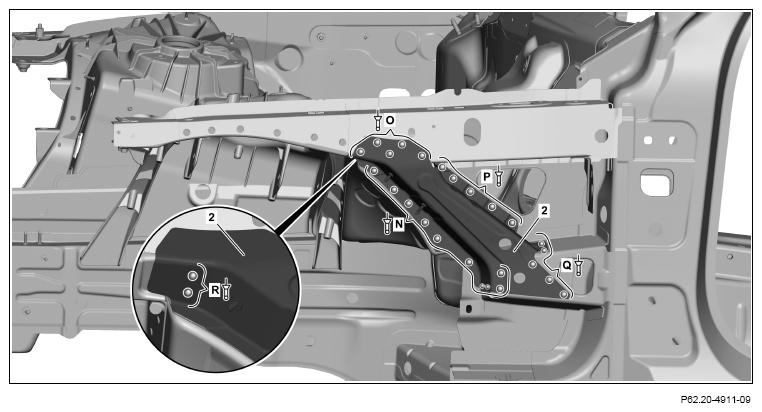

    G12824012Courtesy of MERCEDES-BENZ USA
  20. Rivet strut (2) with ø 6.5x12.5 rivets (areas N, O, P and Q).
  21. Rivet strut (2) with ø 6.4x12 rivets (area R).
