Install Firewall Half - Ar62.25-P-1110-05LWE

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.

Model 213

Model 238

Model 253

Model 293

IMPORTANT The next steps are shown on the left side of the vehicle on model 213 and must be performed in the same way on the right side of the vehicle in the event of damage.

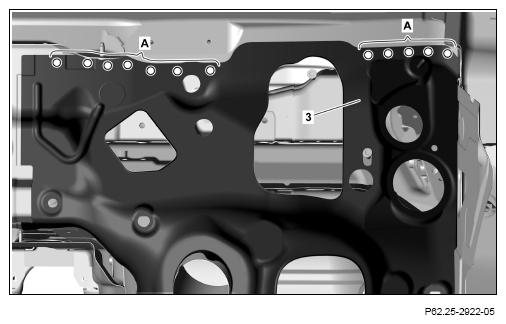

  1. Install firewall (3), fit and fix in place.
  2. Drill rivet holes in firewall (3) with 6.7 mm bit (area A).
    G12824033Courtesy of MERCEDES-BENZ USA
    G12824034Courtesy of MERCEDES-BENZ USA

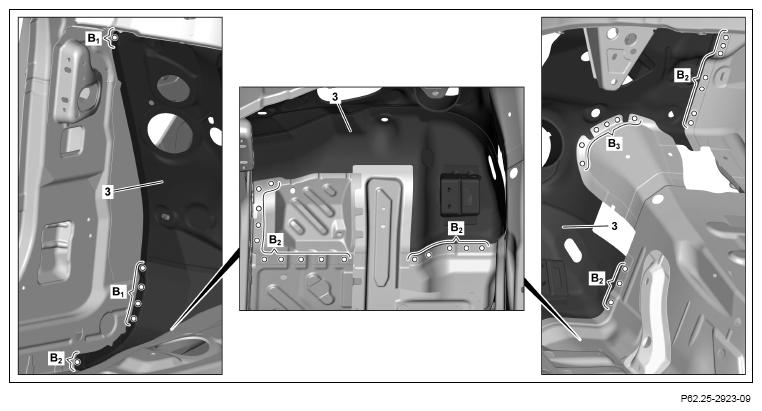

  3. Drill rivet holes in firewall (3) with 6.7 mm bit (areas B1 , B2 , and B3 ).

    IMPORTANT Drill rivet holes through present holes in body (areas B2 and B3 ).

  4. Remove drilling chips.
  5. Coat insides of riveted joints with zinc dust paint.
  6. Remove firewall (3).
  7. Deburr rivet holes on firewall (3) and body on both sides.

    NOTES Do not coat bonding surfaces with zinc dust paint (areas B1 and B2 ).

    Otherwise adhesion problems may occur.

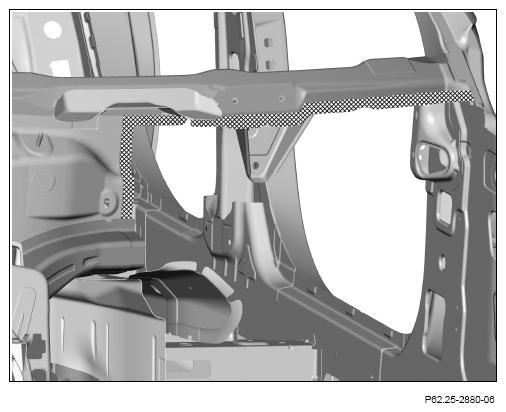

  8. Apply 2-component adhesive to body in cross-hatched areas.

    IMPORTANT Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    G12824035Courtesy of MERCEDES-BENZ USA

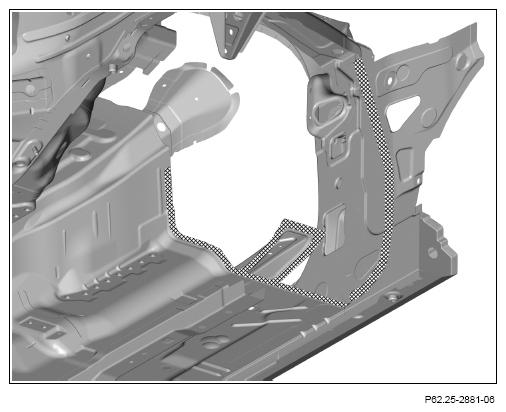

  9. Apply 2-component adhesive to body in cross-hatched areas.

    IMPORTANT Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    G12824036Courtesy of MERCEDES-BENZ USA

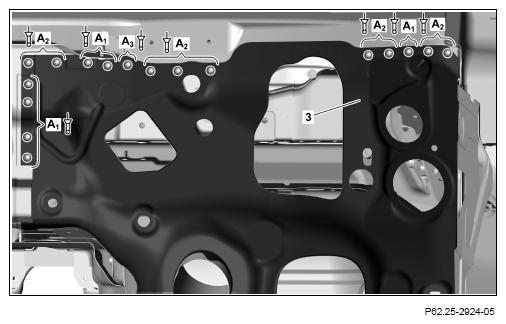

  10. Install firewall (3) and fix in place.
  11. Rivet firewall with (3) 0 6.4x12 rivet (areas A1 ).

    IMPORTANT Clamping range 1.4 mm to 1.8 mm.

  12. Rivet firewall (3) with ø 6.4x12 rivet (areas A2 ).

    IMPORTANT Clamping range 2.5 mm to 3.3 mm.

  13. Rivet firewall (3) with ø 6.5x12.5 rivet (area A3 ).

    IMPORTANT Clamping range 4 mm.

    G12824037Courtesy of MERCEDES-BENZ USA
    G12824038Courtesy of MERCEDES-BENZ USA

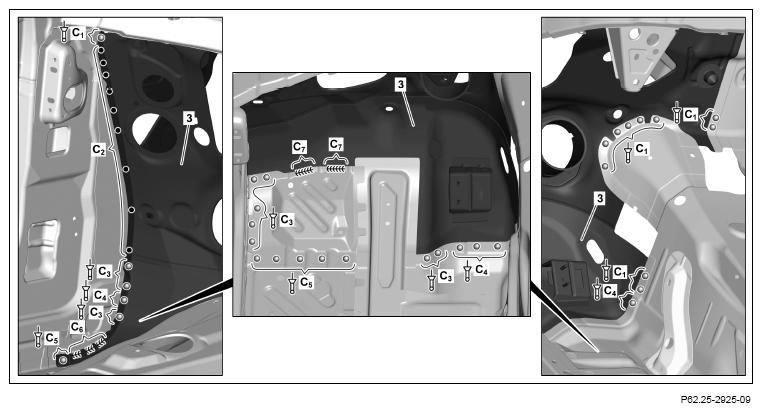

  14. Rivet firewall (3) with 6.4x12 rivets (area C1 ).

    IMPORTANT Clamping range 1.4 mm to 2.2 mm.

  15. Rivet firewall (3) with 6.4x12 rivets (area C3 ).

    IMPORTANT Clamping range 2.5 mm to 2.9 mm.

  16. Rivet firewall (3) with 6.5x12.5 rivets (area C4 ).

    IMPORTANT Clamping range 4 mm to 4.6 mm.

  17. Rivet firewall (3) with 6.5x12.5 rivets (area C5 ).

    IMPORTANT Clamping range 3.2 mm.

  18. Firewall (3) POLARIZATION RESISTANCE SINGLE ROW SPOT WELD (area C2 ).
  19. Firewall (3) SHIELDED GAS SEAM WELD (areas C6 and C7 ).

    IMPORTANT Perform inert gas welding at intervals and allow to cool down in between.

    This reduces heat distortion.

    G12824039Courtesy of MERCEDES-BENZ USA

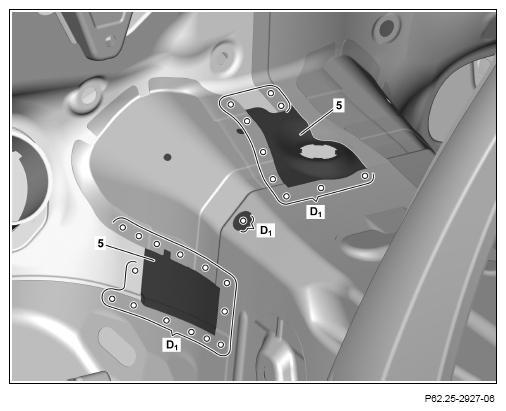

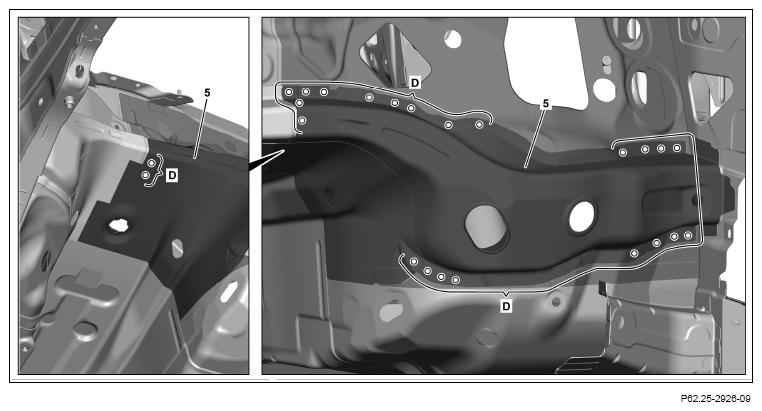

  20. Install firewall crossmember (5), fit and fix in place.
  21. Drill rivet holes in firewall crossmember (5) with 6.7 mm bit (area D).
  22. Drill rivet holes on firewall crossmember (5) with ø 6.7 mm bit (areas D1 ).
  23. Remove firewall crossmember (5).
  24. Deburr rivet holes on firewall crossmember (5) and deburr body on both sides.
  25. Remove drilling chips.
  26. Coat insides of riveted joints in areas not bonded with zinc dust paint.

    NOTES Do not apply zinc dust paint to bonding surfaces.

    Otherwise adhesion problems may occur.

    G12824040Courtesy of MERCEDES-BENZ USA

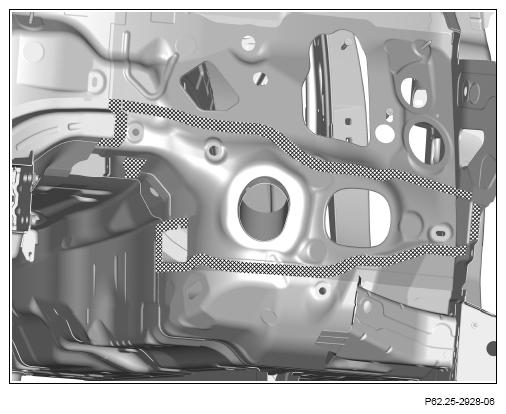

  27. Apply 2-component adhesive to body in cross-hatched areas.

    IMPORTANT Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

  28. Apply sealant in area of foam part.
    G12824041Courtesy of MERCEDES-BENZ USA

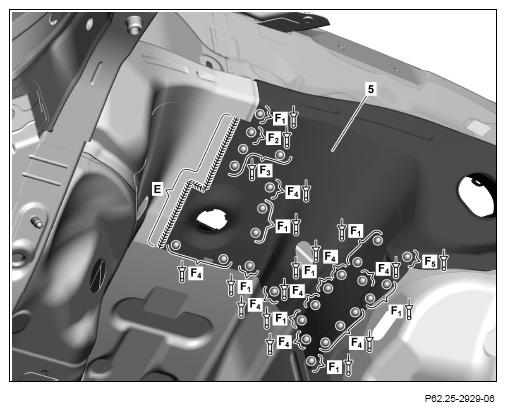

  29. Install firewall crossmember (5) and fix in place.
  30. Rive firewall crossmember (5) with ø 6.5x12.5 rivet (areas F1 ).

    IMPORTANT Clamping range 2.4 mm to 3.2 mm.

  31. Rivet firewall crossmember (5) with 6.5x12.5 mm rivets (area F2 ).

    IMPORTANT Clamping range 4 mm.

  32. Rivet firewall crossmember (5) with ø 6.4x12 rivet (area F3 ).

    IMPORTANT Clamping range 2.3 mm to 2.4 mm.

  33. Rivet firewall crossmember (5) with ø 6.4x12 mm rivet (areas F4 ).

    IMPORTANT Clamping range 1.6 mm to 2.1 mm.

  34. Rivet firewall crossmember (5) with ø 6.4 rivet (area F5 ).

    IMPORTANT Clamping range 7.7 mm.

  35. Firewall crossmember (5) SHIELDED GAS SEAM WELD (area E).

    IMPORTANT Perform inert gas welding at intervals and allow to cool down in between.

    This reduces heat distortion.

    G12824042Courtesy of MERCEDES-BENZ USA

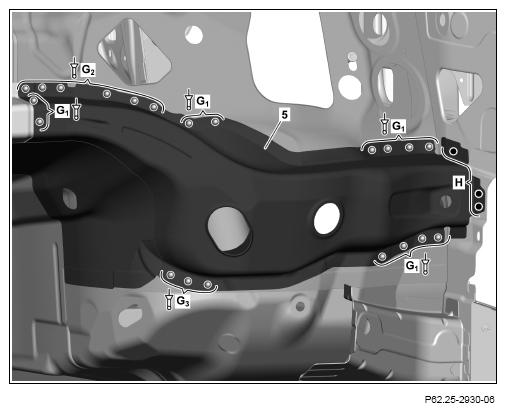

  36. Rivet firewall crossmember (5) with 6.5x12.5 rivets (area G-,).

    IMPORTANT Clamping range 2.3 mm to 3.4 mm.

  37. Rivet firewall crossmember (5) with ø 6.4x12 rivet (area G2 ).

    IMPORTANT Clamping range 2.2 mm to 2.5 mm.

  38. Rivet firewall crossmember (5) with ø 6.5x14.5 rivet (area G3 ).

    IMPORTANT Clamping range 4.1 mm to 4.5 mm.

  39. Firewall crossmember (5) IMPORTANT (area H).
    G12824043Courtesy of MERCEDES-BENZ USA
    G12824044Courtesy of MERCEDES-BENZ USA

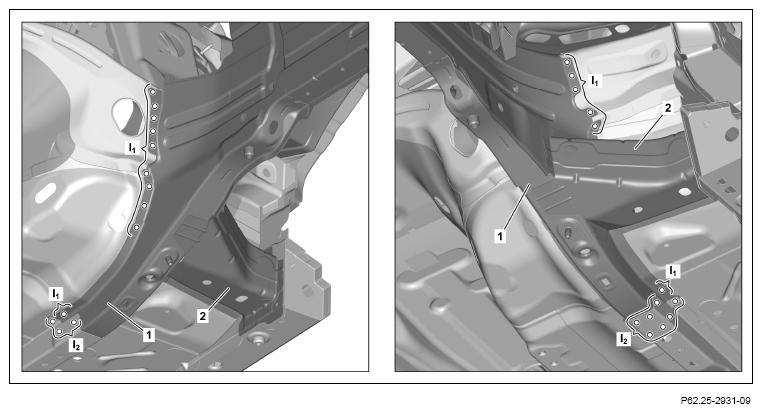

  40. Install wheel well (1), fit with straightening tools and fix in place.
  41. Install crossmember (2) and fit and fix in place.
  42. Drill rivet holes in wheel well (1) with 6.7 mm bit (areas I1 and I2 ).

    IMPORTANT Drill rivet holes through present holes in body (area I2 ).

    G12824045Courtesy of MERCEDES-BENZ USA
  43. Drill rivet holes in crossmember (2) with 6.7 mm bit (area J).
  44. Remove crossmember (2).
    G12824046Courtesy of MERCEDES-BENZ USA

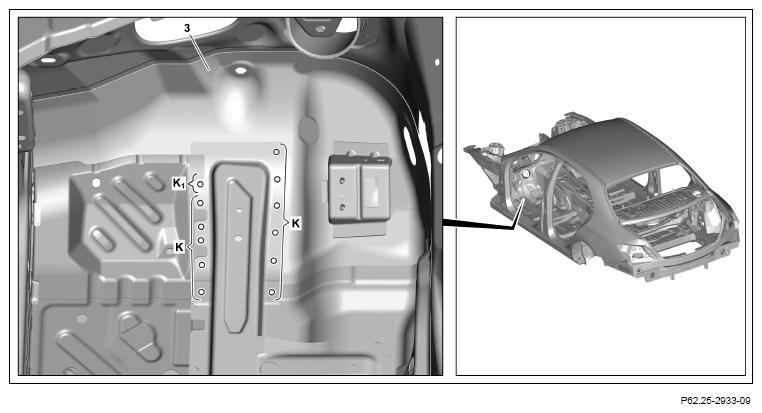

  45. Drill rivet holes on firewall (3) with ø 6.7 mm bit (areas K and K1 ).

    IMPORTANT Drill rivet holes through present holes in body (area K).

    G12824047Courtesy of MERCEDES-BENZ USA

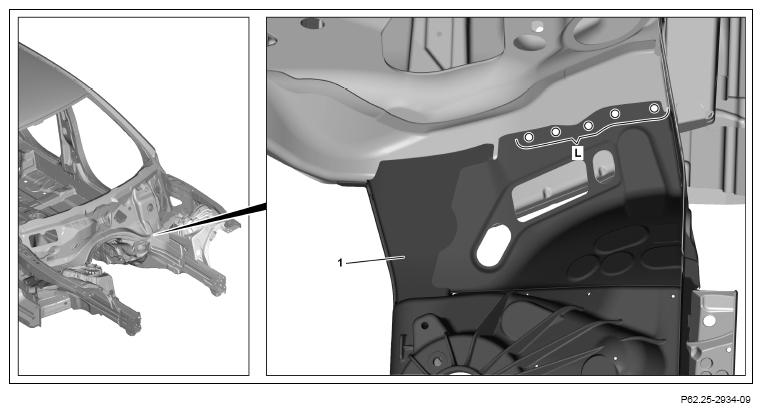

  46. Drill rivet holes on wheel well (1) with ø 6.7 mm bit (area L).
  47. Remove wheel well (1) and straightening tools.
  48. Deburr rivet holes on wheel well (1), crossmember and body on both sides.
  49. Remove drilling chips.
  50. Coat insides of riveted joints in areas not bonded with zinc dust paint.

    NOTES Do not apply zinc dust paint to bonding surfaces.

    Otherwise adhesion problems may occur.

    G12824048Courtesy of MERCEDES-BENZ USA

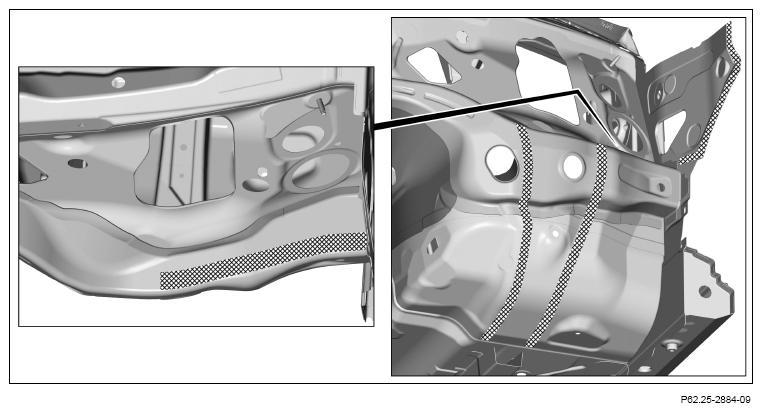

  51. Apply 2-component adhesive to body in cross-hatched areas.

    IMPORTANT Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    G12824049Courtesy of MERCEDES-BENZ USA

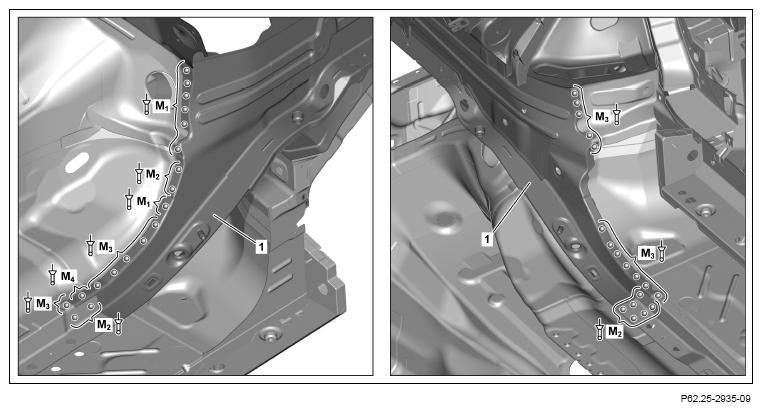

  52. Install wheel well (1) with straightening tools and fix in place.
  53. Rivet wheel well (1) with 6.5x14.5 rivets (area M1 ).

    IMPORTANT Clamping range 5.2 mm to 5.5 mm.

  54. Rivet wheel well (1) with 6.4x12 rivets (area M2 ).

    IMPORTANT Clamping range 2.6 mm to 2.8 mm.

  55. Rivet wheel well (1) with 6.5x12.5 rivets (area M3 ).

    IMPORTANT Clamping range 3.6 mm to 4.7 mm.

  56. Rivet wheel well (1) with ø 6.5x12.5 rivet (area M4 ).

    IMPORTANT Clamping range 3.5 mm.

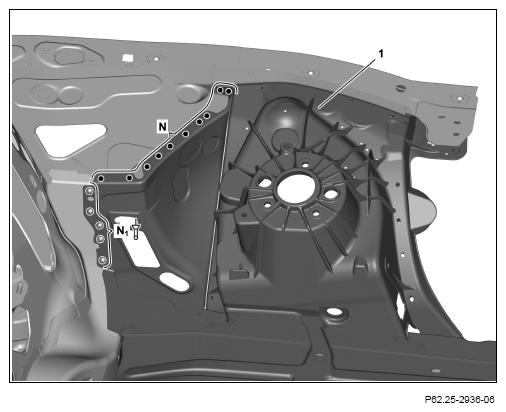

  57. Rivet wheel well (1) with ø 6.5x12.5 rivet (area N1 ).

    IMPORTANT Clamping range 3.3 mm to 3.8 mm.

  58. Wheel well (1) POLARIZATION RESISTANCE SINGLE ROW SPOT WELD (area N).
    G12824050Courtesy of MERCEDES-BENZ USA

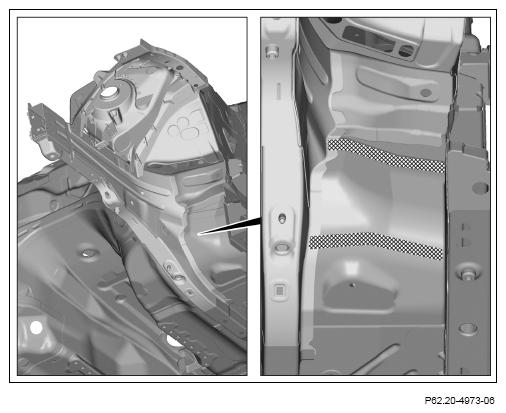

  59. Apply 2-component adhesive to body in cross-hatched areas.

    IMPORTANT Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    G12823930Courtesy of MERCEDES-BENZ USA
    G12824052Courtesy of MERCEDES-BENZ USA

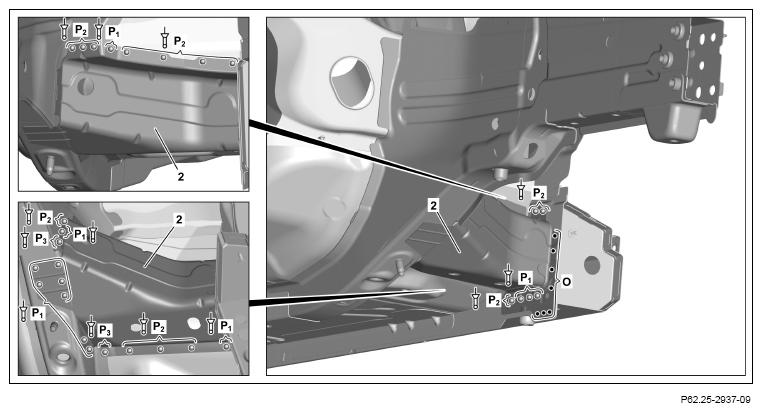

  60. Install crossmember (2) and fix in place.
  61. Rivet crossmember (2) with 6.5x12.5 rivets (area P1 ).

    IMPORTANT Clamping range 3.9 mm to 4.7 mm.

  62. Rivet crossmember (2) with 6.5x12.5 rivets (area P2 ).

    IMPORTANT Clamping range 2.5 mm to 3.4 mm.

  63. Rivet crossmember (2) with 6.5x14.5 rivets (area P3 ).

    IMPORTANT Clamping range 5.6 mm to 6 mm.

  64. Crossmember (2) POLARIZATION RESISTANCE SINGLE ROW SPOT WELD (area O).
    G12824053Courtesy of MERCEDES-BENZ USA

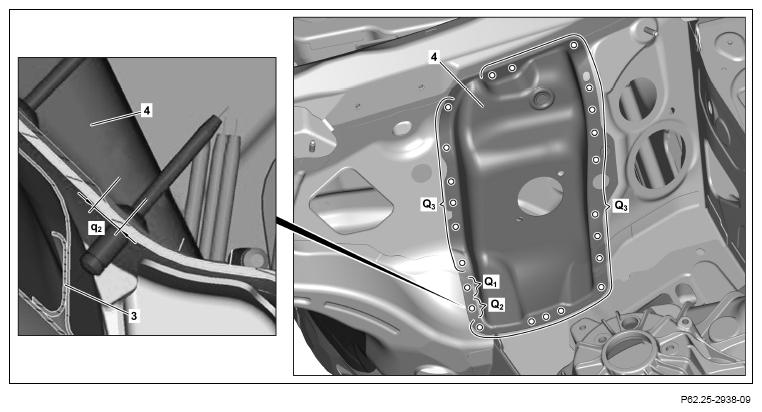

  65. Transfer position for rivet hole on pedal bowl (4) from old part and offset to dimension (q2 ) (area Q2 ).

    IMPORTANTDimensions:

    Q2 = 8 mm

  66. Install pedal assembly cup (4), fit and fix in place.
  67. Drill rivet holes in pedal bowl (4) with 6.7 mm bit (areas Q2 and Q3 ).
  68. Drill rivet hole on pedal bowl (4) with ø 6.7 mm (area Q

    IMPORTANT The interspace for riveting is not sufficient, for this reason drill through firewall behind in area (Q1 ).

  69. Remove pedal assembly cup (4).
  70. Drill hole in firewall (3) with ø 10 mm.
  71. Deburr rivet holes on pedal assembly cup (4) and body on both sides.
  72. Remove drilling chips.

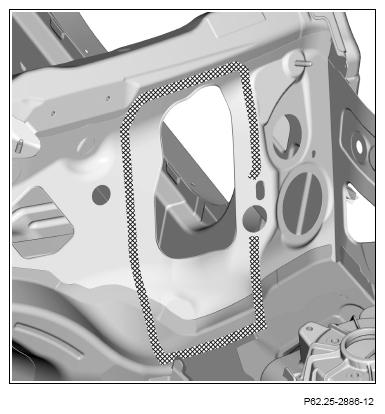

  73. Apply 2-component adhesive to body in cross-hatched areas.

    IMPORTANT Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    G12824054Courtesy of MERCEDES-BENZ USA

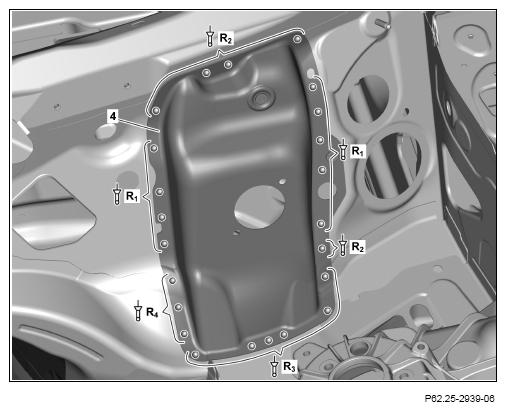

  74. Install pedal assembly cup (4) and fix in place.
  75. Rivet pedal bowl (4) with 6.4x12 rivets (area R1 ).

    IMPORTANT Clamping range 2.2 mm.

  76. Rivet pedal bowl (4) with 6.5x12.5 rivets (area R2 ).

    IMPORTANT Clamping range 2.3 mm to 3.4 mm.

  77. Rivet pedal bowl (4) with ø 6.5x14.5 rivet (area R3 ).

    IMPORTANT Clamping range 4.9 mm to 5.3 mm.

  78. Rivet pedal bowl (4) with ø 6.5x12.5 rivet (area R4 ).

    IMPORTANT Clamping range 3.6 mm to 4.3 mm.

  79. Close hole in firewall with sealant.
    G12824055Courtesy of MERCEDES-BENZ USA
