Install And Weld In Wheel Well - Ar62.20-P-1200-17LW

Model 205

Model 213

Model 238

Model 253

Model 293

The next steps are shown on the left side of the vehicle on model 205 and must be performed in the same way on the right side in the event of damage.

Courtesy of MERCEDES-BENZ USA

1. Install wheel well (1), fit with straightening tool and fix in place.
2. Install crossmember (2) and fit and fix in place.

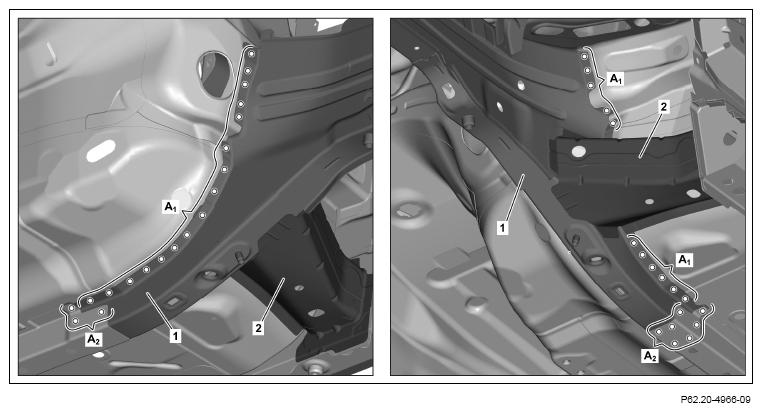

3. Drill rivet holes on wheel well (1) with a diameter of 6.7 mm (area A and A₂ ).

   Drill rivet holes through present holes in body (areas A₂ ).

   Courtesy of MERCEDES-BENZ USA

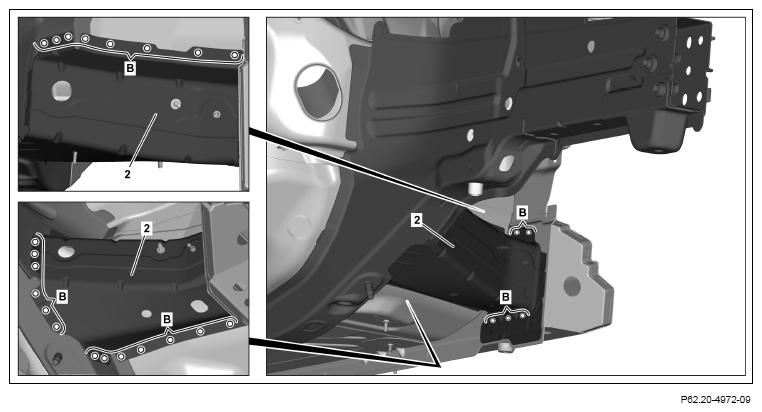

4. Drill rivet holes on crossmember (2) with a diameter of 6.7 mm (area B).
5. Remove crossmember (2).

   Courtesy of MERCEDES-BENZ USA

6. Drill rivet holes on wheel well (1) with a diameter of 6.7 mm (area C and D).
7. Remove wheel well (1) and straightening tool.
8. Deburr rivet holes on wheel well (1), crossmember and body on both sides.
9. Remove drilling chips.
10. Coat insides of riveted joints in areas not bonded with zinc dust paint.

    Do not apply zinc dust paint to bonding surfaces.

    Otherwise adhesion problems may occur.

    Courtesy of MERCEDES-BENZ USA

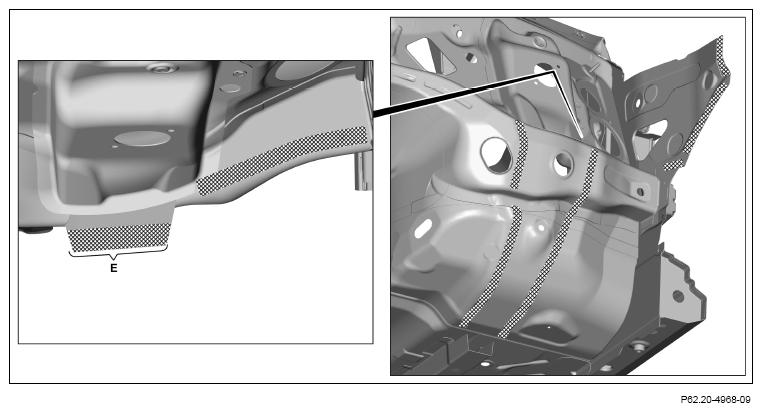

11. Apply 2-component adhesive to body in cross-hatched areas.

    Apply 2-component adhesive at bottom (area E).

    Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

12. Install wheel well (1) with straightening tool and fix in place.

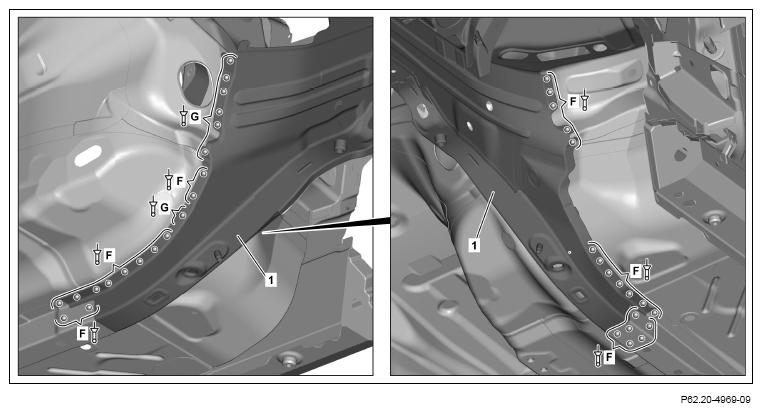

13. Rivet wheel well (1) with rivets with a diameter of 6.5 x 12.5 (area F).
14. Rivet wheel well (1) with rivets with a diameter of 6.5 x 14.5 (area G).

    Courtesy of MERCEDES-BENZ USA

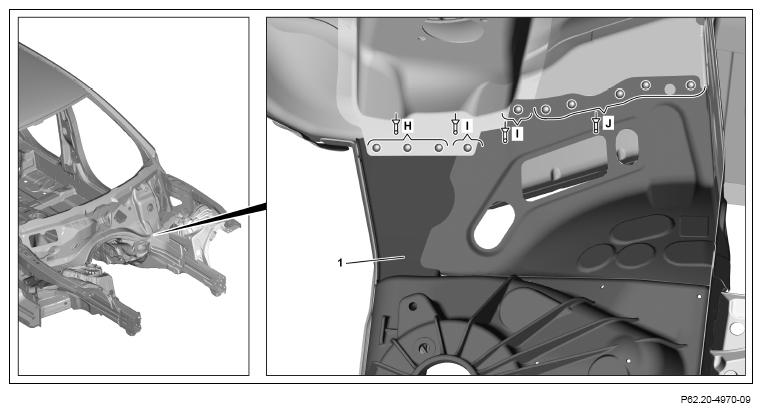

15. Rivet wheel well (1) with ø 6.4x12 rivets (area J).
16. Rivet wheel well (1) with ø 6.5x12.5 rivets (area H).
17. Rivet wheel well (1) with rivets with a diameter of 6.5 x 14.5 (area I).

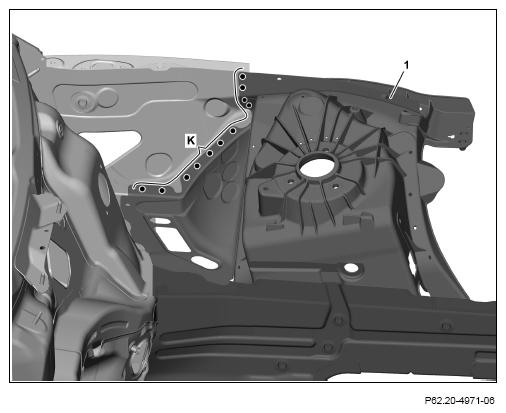

18. Wheel well (1) (area K).

    Courtesy of MERCEDES-BENZ USA

19. Apply 2-component adhesive to body in cross-hatched areas.

    Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

20. Install crossmember (2) and fix in place.

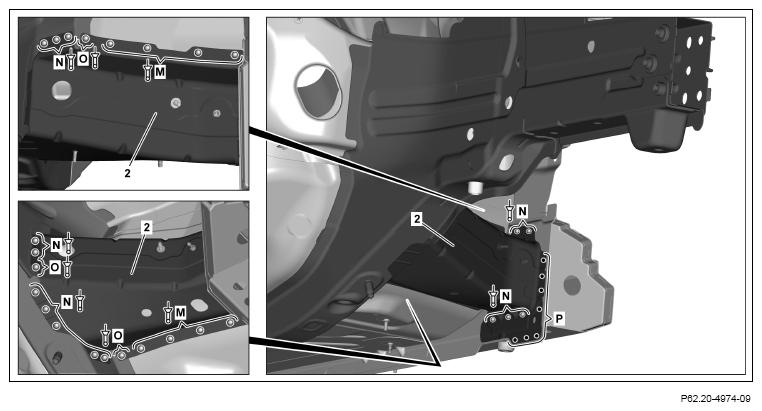

21. Rivet crossmember (2) with rivets with a diameter of 6.4 x 12 (area M).
22. Rivet crossmember (2) with rivets with a diameter of 6.5 x 12.5 (area N).
23. Rivet crossmember (2) with rivets with a diameter of 6.5 x 14.5 (area O).
24. Crossmember (2) (area P).

    Courtesy of MERCEDES-BENZ USA

    Model 213, 238

25. Model 213, 238

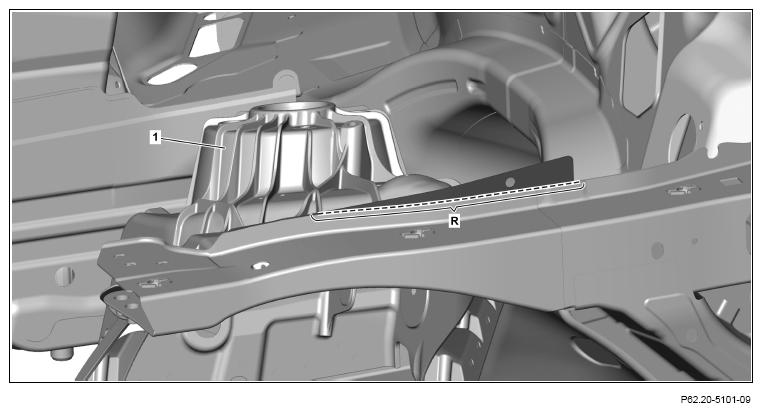

    Separate protrusion of wheel well (1) (area R).

    After installing upper front longitudinal member.
