Carry Out Visual Inspection Of Structural Components - Ar62.10-P-1101-01LWE
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
Model 213
Model 238
The following operation steps are shown on model 213.0.
 Courtesy of MERCEDES-BENZ USA
|

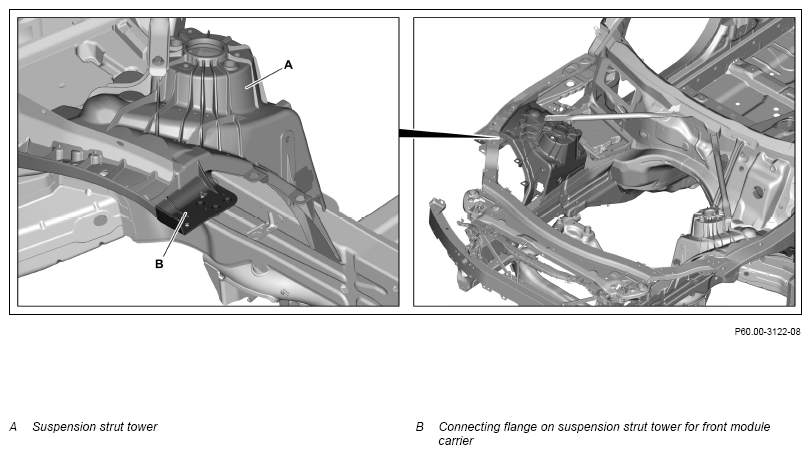

Survey pattern for structural components of front end, shown on right side of vehicle

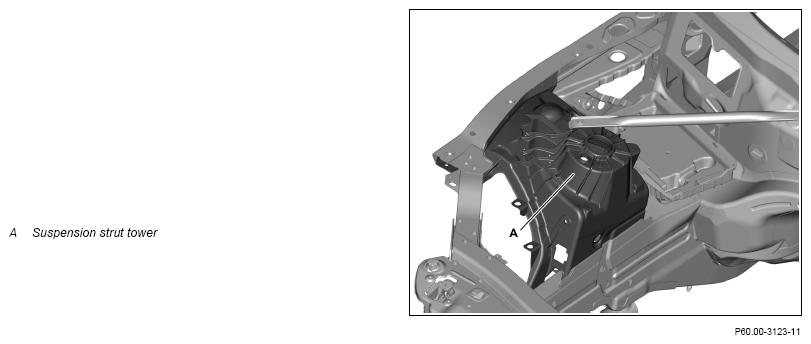

- Check status of suspension strut tower (A) and bolt holes on cross strut connection for.
Always
replace spring strut dome (A) in event of cracks, folds or deformation.
Otherwise the required minimum strength of the structural components is not ensured.
Reshaping or repairing not
permissible.
Shown on right side of vehicle
 Courtesy of MERCEDES-BENZ USA
|

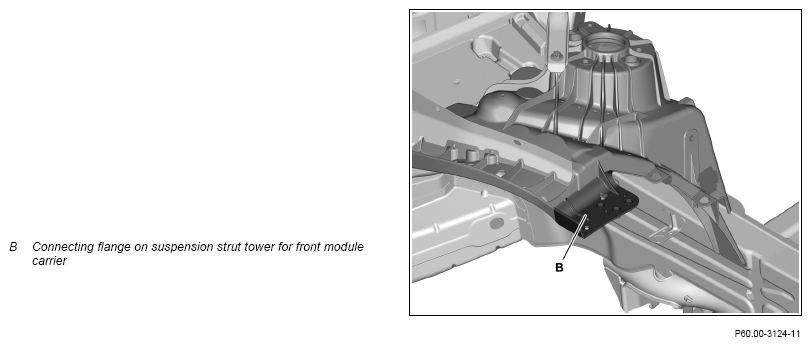

- Check status of connecting flange on suspension strut tower for front module carrier (B).
In event of cracks or folds on the connecting flange on the suspension strut tower for the front module carrier (B) always
suspension strut tower.
Otherwise the required minimum strength of the structural components is not ensured.
Reshaping or repairing always
permissible.
Shown on right side of vehicle
 Courtesy of MERCEDES-BENZ USA
|

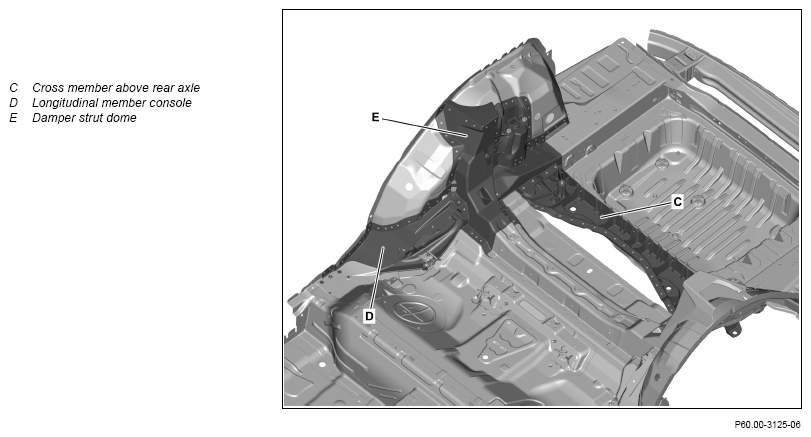

Survey pattern of structural components of rear end, shown on right side of vehicle
 Courtesy of MERCEDES-BENZ USA
|

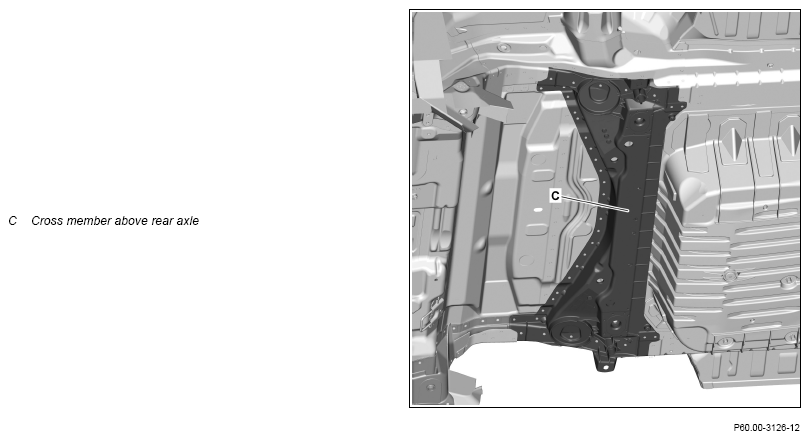

- Check status of crossmember above rear axle (C).
Always
replace crossmember above rear axle (C) in event of cracks, folds or deformation.
Otherwise the required minimum strength of the structural components is not ensured.
Reshaping or repairing not
permissible.
 Courtesy of MERCEDES-BENZ USA
|

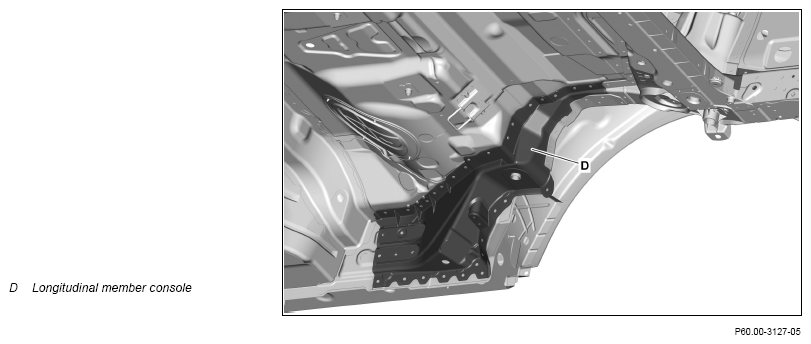

- Check status of longitudinal member console (D).
Always
longitudinal member console (D) in event of cracks, folds or deformation.
Otherwise the required minimum strength of the structural components is not ensured.
Reshaping or repairing not
permissible.
Shown on right side of vehicle
 Courtesy of MERCEDES-BENZ USA
|

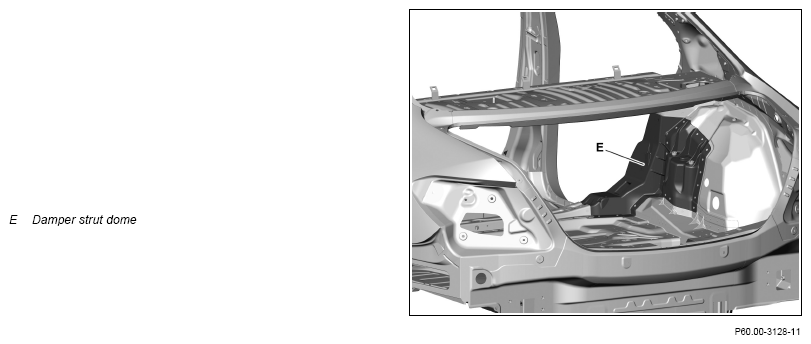

- Check status of damper strut dome (E).
Always
replace damper strut dome (E) in event of cracks, folds or deformation.
Otherwise the required minimum strength of the structural components is not ensured.
Reshaping or repairing not
permissible.
Shown on right side of vehicle
 Courtesy of MERCEDES-BENZ USA
|
