Remove/Install Rear Seat Cushion - AR91.12-P-1020LW
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
except code 248 (Rear seat with integrated child seat)
except code P10 (Taxi package Germany)
Model 213
except code 248 (Rear seat with integrated child seat)
Model 238
Model 253
Model 293

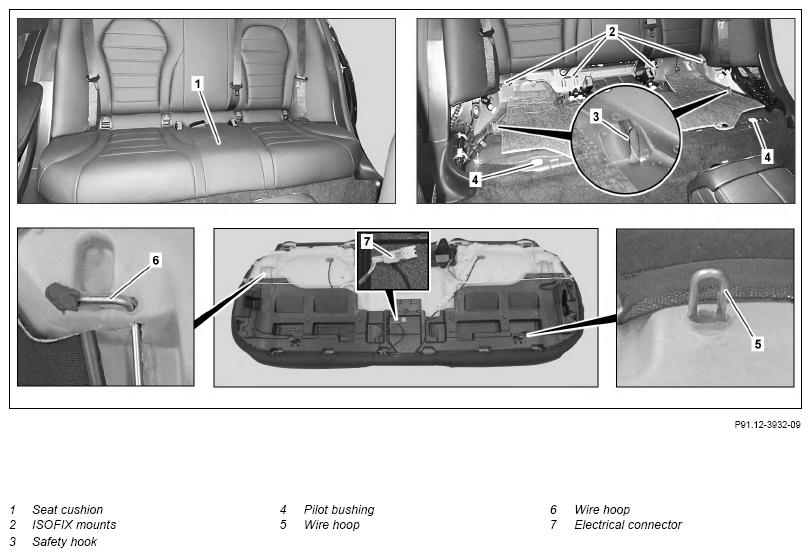

Shown on MODEL 205.2
| Remove/install | |||
| 1 | Move driver's and front passenger seat forward. | ||
| 2 | Remove rubber insert in cup holder. | Model 205.3/4 except code 248 (Rear seat with integrated child seat) except code P10 (Taxi package Germany) Model 238 |
|
| 3 | Remove nut in cup holder. | Model 205.3/4 except code 248 (Rear seat with integrated child seat) except code P10 (Taxi package Germany) Model 238 |
|
| 4 | Pull seat cushion (1) at left and right upward out of pilot bushings (4). | ||
| 5 | Disconnect and unclip electrical connector (7). | Model 205.1 with code 872 (Heated rear seats) except code 248 (Rear seat with integrated child seat) except code P10 (Taxi package Germany) Model 213 with code 872 (Heated rear seats) except code 248 (Rear seat with integrated child seat) Model 238 with code 872 (Heated rear seats) Model 253 with code 872 (Heated rear seats) Model 293 with code 872 (Heated rear seats) |
|
| 6 | Press seat cushion (1) on left and right towards rear and unhook upwards from safety hooks (3). | ||
| 7 | Detach seat cushion (1) from ISOFIX mounts (2) and remove from vehicle. | Carefully remove the seat cushion (1) from vehicle. Otherwise components of the vehicle may be damaged. |
|
| 8 | Install in the reverse order |
