(4MATIC Transfer Case, Function - GF28.10-P-1000AVF)
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 205 with TRANSMISSION 722.961/965

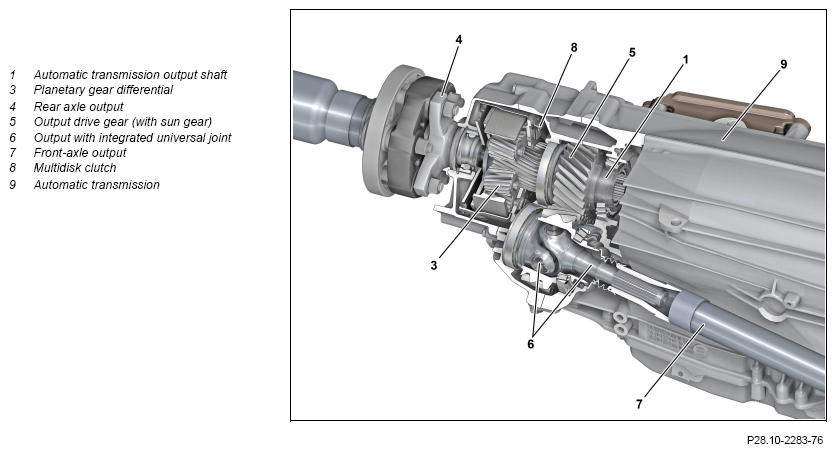

Sectional view of transfer case
4MATIC transfer case, general
The transfer case is integrated in the rear section of the automatic transmission. What makes it so special is its single-stage output with integrated universal joint (6). The single-stage version, in contrast to the dual-stage output of previous transfer cases, no longer requires a spur gear set including the bearing. This has a positive effect on efficiency, weight and the noise characteristics of the drivetrain.
In case of repair, certain components (e.g. the transfer case) can be replaced separately. It is not essential to replace the complete transfer case together with the automatic transmission.
| Overview of system components, automatically controlled all-wheel drive (4MATIC) | GF28.00-P-9998AVF |
