Wiring Diagram Of Rear Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-P-2103-97FBB
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 as of model year 2019 Control unit N10/8
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 234L |

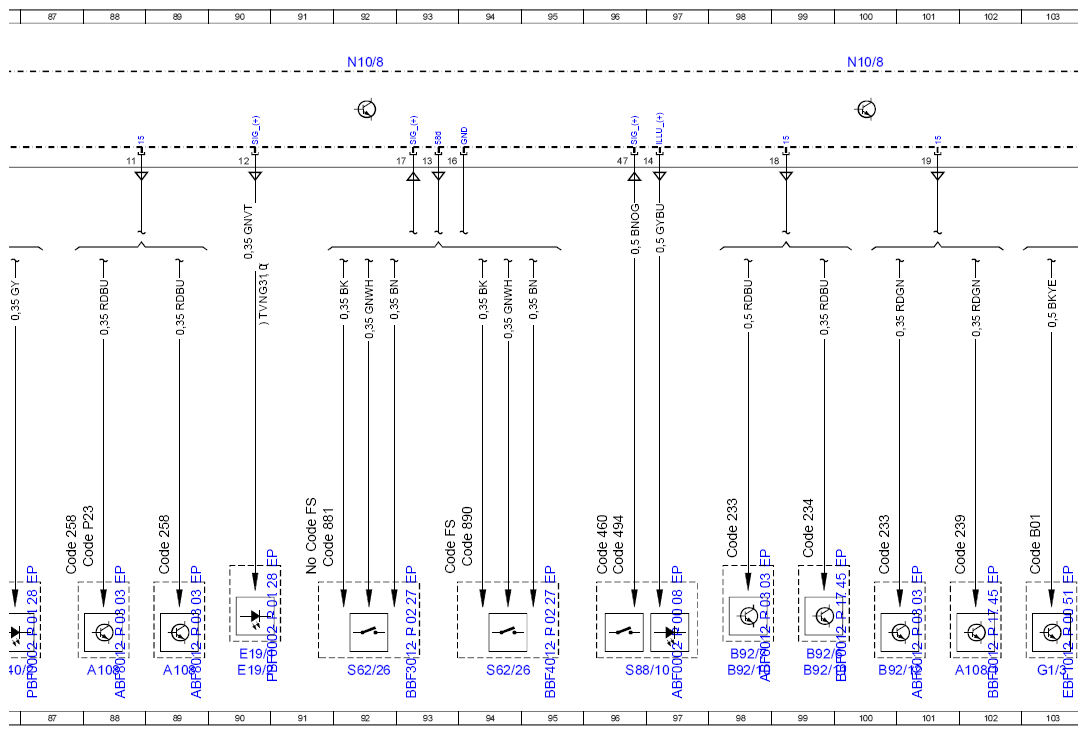

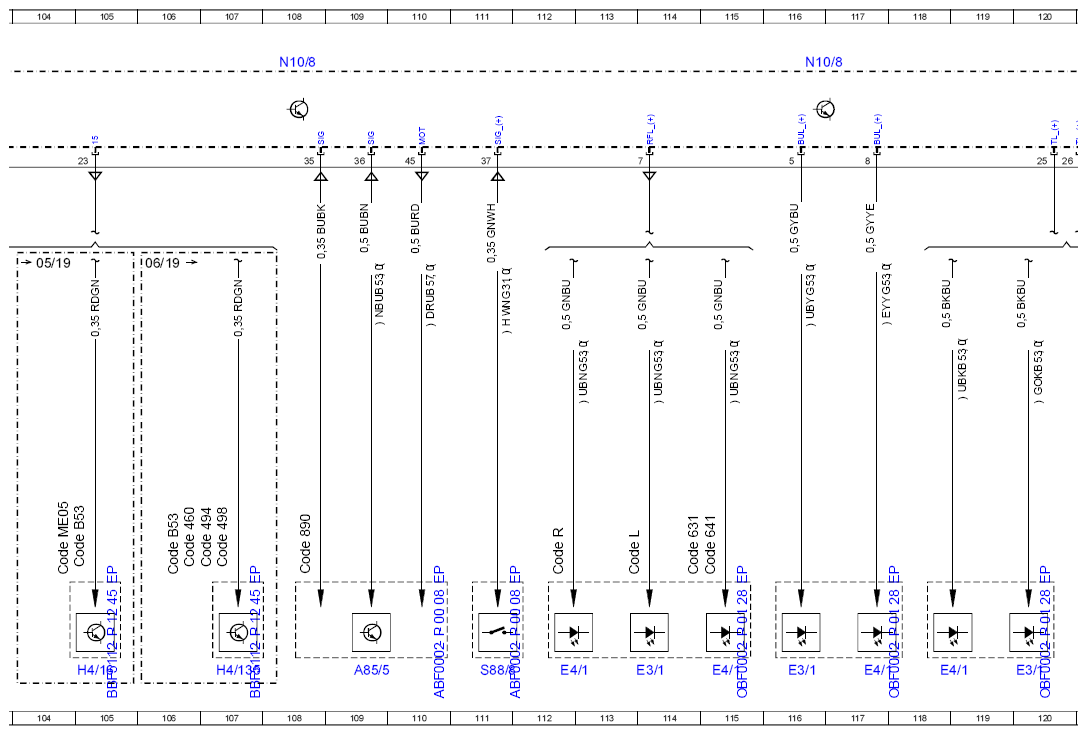

| A108 | Active Brake Assist controller unit | 88L |
| A108 | Active Brake Assist controller unit | 89L |
| A108/1 | DISTRONIC Distance-Pilot controller unit | 102L |
| A85/5 | Trunk lid/liftgate lock | 109L |
| B92/10 | Left outer rear bumper radar sensor | 98L |
| B92/11 | Left outer rear bumper integrated radar sensor | 99L |
| B92/12 | Short and long-range radar sensor | 100L |
| B92/6 | Right outer rear bumper integrated radar sensor | 99L |
| B92/7 | Right outer rear bumper radar sensor | 98L |
| CAN B | Interior CAN | 18K |
| CAN B | Interior CAN | 209K |
| Code 218 | Backup camera | 60J |
| Code 218 | Backup camera | 79J |
| Code 233 | AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS | 98J |
| Code 233 | AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS | 100J |
| Code 234 | Blind Spot Assist (BSM) | 99J |
| Code 235 | Active Park Assist | 61J |
| Code 235 | Active Park Assist | 62J |
| Code 235 | Active Park Assist | 81J |
| Code 235 | Active Park Assist | 81J |
| Code 239 | Active Distance Assist DISTRONIC | 102J |
| Code 258 | Collision Prevention Assist PLUS (CPA+) | 87J |
| Code 258 | Collision Prevention Assist PLUS (CPA+) | 89J |
| Code 275 | Memory package | 20J |
| Code 287 | Through-loading feature | 30J |
| Code 401 | Seat climate control for driver and front passenger | 19J |
| Code 403 | AIRSCARF system | 23G |
| Code 413 | Panoramic sliding sunroof | 185J |
| Code 460 | Canada version | 96J |
| Code 460 | Canada version | 106J |
| Code 460 | Canada version | 141J |
| Code 460 | Canada version | 122J |
| Code 460 | Canada version | 143J |
| Code 460 | Canada version | 172J |
| Code 460 | Canada version | 169J |
| Code 460 | Canada version | 170J |
| Code 460 | Canada version | 174D |
| Code 466 | Active engine mount | 197J |
| Code 467 | Electronic locking differential | 191J |
| Code 494 | USA version | 96J |
| Code 494 | USA version | 107J |
| Code 494 | USA version | 141J |
| Code 494 | USA version | 122J |
| Code 494 | USA version | 143J |
| Code 494 | USA version | 172J |
| Code 494 | USA version | 169J |
| Code 494 | USA version | 170J |
| Code 494 | USA version | 174E |
| Code 498 | Japan version | 107J |
| Code 501 | 360 degree camera | 60J |
| Code 501 | 360 degree camera | 80J |
| Code 540 | Electric roller sun blind for rear window | 69G |
| Code 540 | Electric roller sun blind for rear window | 125J |
| Code 550 | Trailer hitch | 209J |
| Code 631 | Static LED headlamp, left-hand traffic | 114J |
| Code 631 | Static LED headlamp, left-hand traffic | 177J |
| Code 631 | Static LED headlamp, left-hand traffic | 179J |
| Code 631 | Static LED headlamp, left-hand traffic | 182J |
| Code 632 | Static LED headlamp, right-hand traffic | 177J |
| Code 632 | Static LED headlamp, right-hand traffic | 179J |
| Code 632 | Static LED headlamp, right-hand traffic | 182J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 115J |
| Code 830 | Additional parts for China vehicles | 185J |
| Code 830 | Additional parts for China vehicles | 125J |
| Code 830 | Additional parts for China vehicles | 148E |
| Code 872 | Seat heater in rear passenger compartment | 21G |
| Code 873 | Seat heater for driver and front passenger | 19J |
| Code 876 | Interior lights package | 148E |
| Code 877 | Ambiance illumination | 147J |
| Code 877 | Ambiance illumination | 146J |
| Code 881 | Remote trunk closing | 92J |
| Code 881 | Remote trunk closing | 82J |
| Code 890 | EASY-PACK liftgate | 28J |
| Code 890 | EASY-PACK liftgate | 73J |
| Code 890 | EASY-PACK liftgate | 71J |
| Code 890 | EASY-PACK liftgate | 57G |
| Code 890 | EASY-PACK liftgate | 52G |
| Code 890 | EASY-PACK liftgate | 94J |
| Code 890 | EASY-PACK liftgate | 83J |
| Code 890 | EASY-PACK liftgate | 108J |
| Code B01 | 48V technology | 103J |
| Code B53 | Acoustic ambient protection | 106J |
| Code B53 | Acoustic ambient protection | 105J |
| Code B53 | Acoustic ambient protection | 199J |
| Code FA | CABRIOLET | 23J |
| Code FA | CABRIOLET | 39J |
| Code FA | CABRIOLET | 35J |
| Code FA | CABRIOLET | 55J |
| Code FA | CABRIOLET | 44J |
| Code FA | CABRIOLET | 49J |
| Code FA | CABRIOLET | 48J |
| Code FA | CABRIOLET | 181J |
| Code FC | COUPE | 38J |
| Code FC | COUPE | 33J |
| Code FC | COUPE | 54J |
| Code FC | COUPE | 44J |
| Code FC | COUPE | 69J |
| Code FC | COUPE | 181J |
| Code FS | STATION WAGON | 42J |
| Code FS | STATION WAGON | 39J |
| Code FS | STATION WAGON | 35J |
| Code FS | STATION WAGON | 57J |
| Code FS | STATION WAGON | 52J |
| Code FS | STATION WAGON | 49J |
| Code FS | STATION WAGON | 72J |
| Code FS | STATION WAGON | 70J |
| Code FS | STATION WAGON | 93J |
| Code FS | STATION WAGON | 91J |
| Code FS | STATION WAGON | 85J |
| Code FS | STATION WAGON | 123J |
| Code FS | STATION WAGON | 156J |
| Code FS | STATION WAGON | 178J |
| Code FS | STATION WAGON | 180J |
| Code FV | LONG SEDAN | 21J |
| Code FV | LONG SEDAN | 42J |
| Code FV | LONG SEDAN | 37J |
| Code FV | LONG SEDAN | 33J |
| Code FV | LONG SEDAN | 69J |
| Code FV | LONG SEDAN | 125J |
| Code FV | LONG SEDAN | 147J |
| Code FV | LONG SEDAN | 185J |
| Code FV | LONG SEDAN | 176J |
| Code FV | LONG SEDAN | 148E |
| Code FW | SEDAN | 41J |
| Code FW | SEDAN | 37J |
| Code FW | SEDAN | 33J |
| Code FW | SEDAN | 68J |
| Code FW | SEDAN | 175J |
| Code FW | SEDAN | 177J |
| Code FW | SEDAN | 148D |
| Code L | LEFT-HAND DRIVE | 114J |
| Code L | LEFT-HAND DRIVE | 136J |
| Code M016 | Uprated high-performance engine | 195J |
| Code M177 | SPARK-IGNITION ENGINE M177 | 195J |
| Code M177 | SPARK-IGNITION ENGINE M177 | 191J |
| Code M276 | SPARK-IGNITION ENGINE M276 | 195J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 104J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 194J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 192J |
| Code P23 | EXCLUSIVE Exterior | 88J |
| Code R | RIGHT-HAND DRIVE | 112J |
| Code R | RIGHT-HAND DRIVE | 138J |
| Code U01 | Rear seat belt status indicator in instrument cluster | 46J |
| Code U01 | Rear seat belt status indicator in instrument cluster | 44G |
| Code U79 | BLUETEC (SCR) diesel exhaust treatment Generation 3 | 190J |
| E17/17 | Left rear footwell lamp | 147L |
| E17/18 | Right rear footwell lamp | 147L |
| E18/4 | Right luggage compartment lamp | 184L |

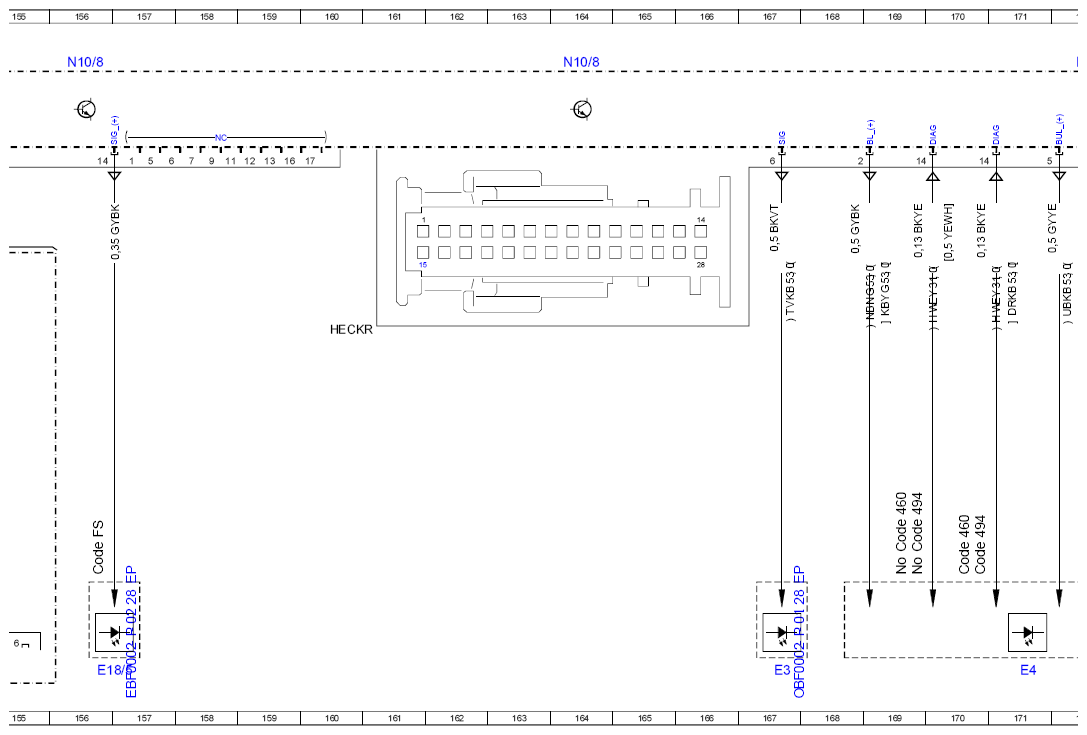

| E18/5 | Left luggage compartment lamp | 156L |
| E19/1 | Left license plate lamp | 90L |
| E19/2 | Right license plate lamp | 90L |
| E21 | Center stop lamp | 26L |

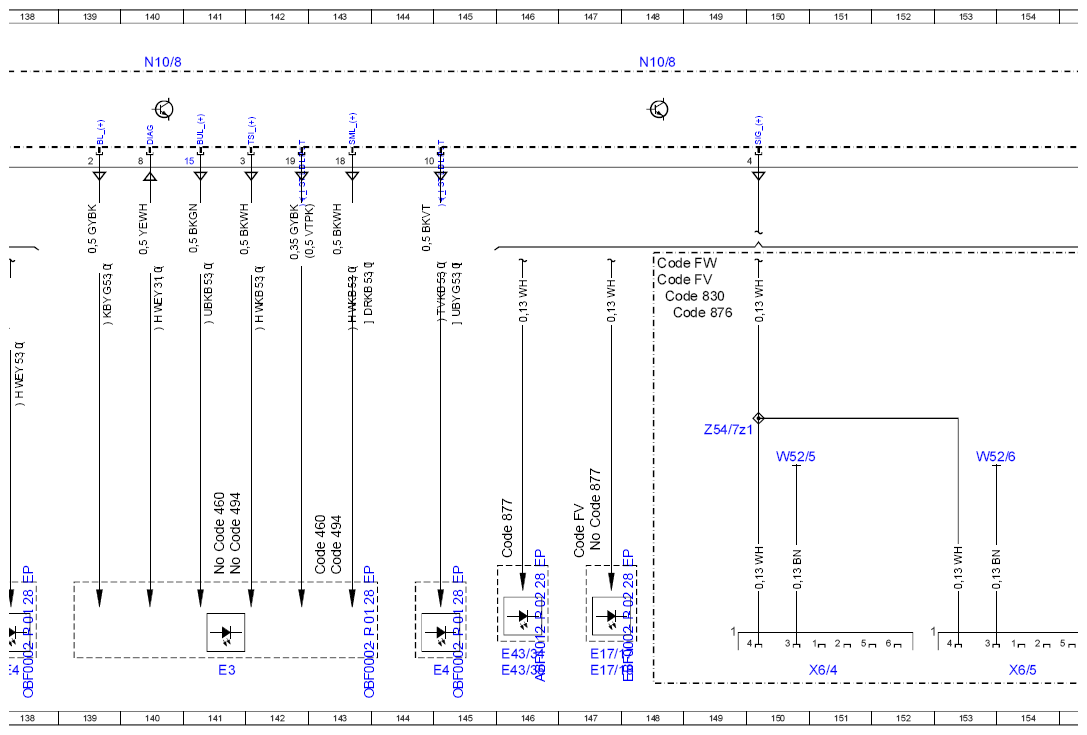

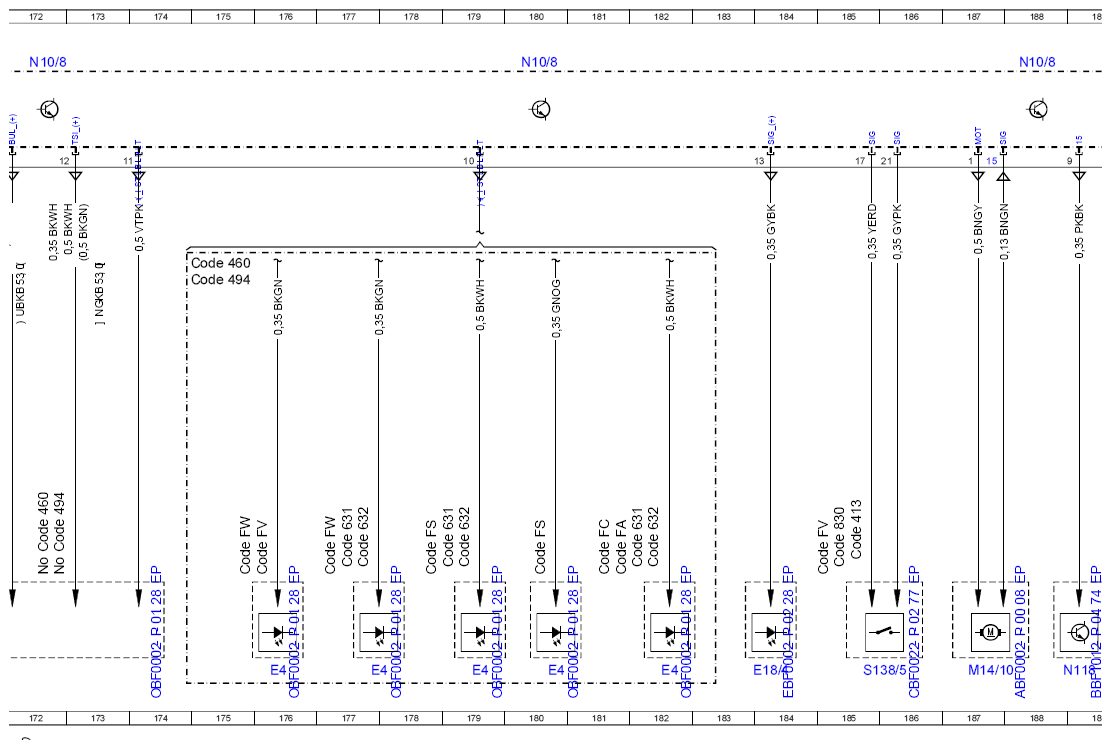

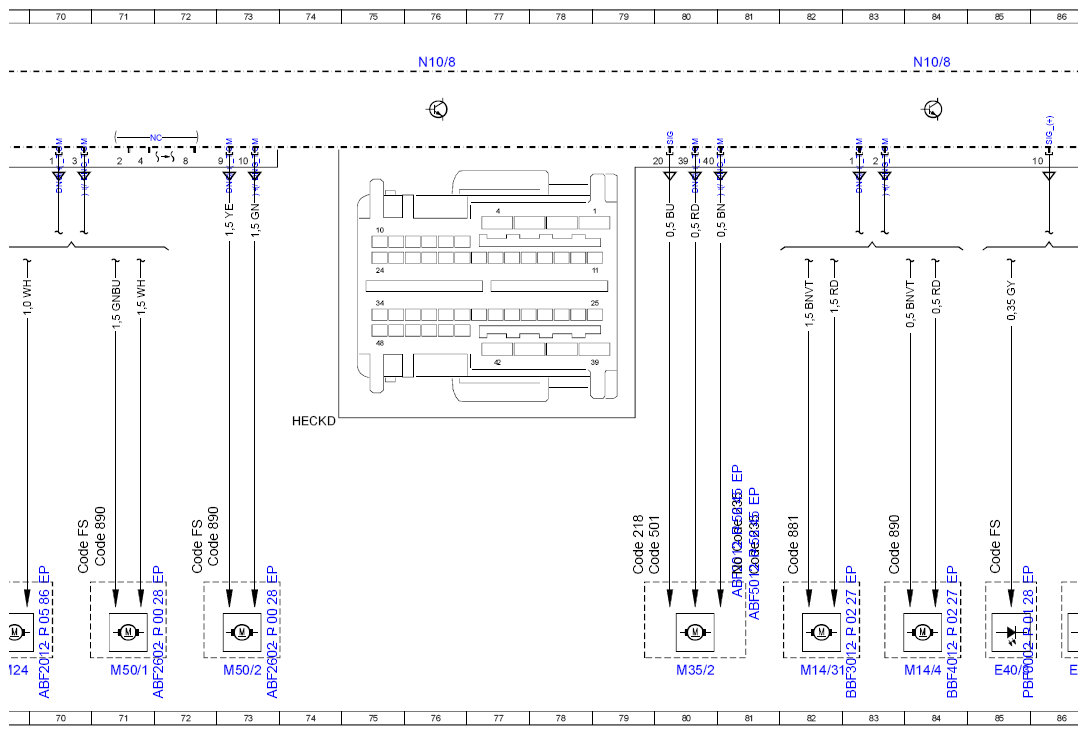

| E3 | Left rear lamp unit | 122L |
| E3 | Left rear lamp unit | 136L |
| E3 | Left rear lamp unit | 141L |
| E3 | Left rear lamp unit | 167L |
| E3/1 | Inner left rear lamp unit | 114L |
| E3/1 | Inner left rear lamp unit | 116L |
| E3/1 | Inner left rear lamp unit | 120L |
| E4 | Right rear lamp unit | 121L |
| E4 | Right rear lamp unit | 138L |
| E4 | Right rear lamp unit | 145L |
| E4 | Right rear lamp unit | 176L |
| E4 | Right rear lamp unit | 177L |
| E4 | Right rear lamp unit | 179L |
| E4 | Right rear lamp unit | 180L |
| E4 | Right rear lamp unit | 182L |
| E4 | Right rear lamp unit | 171L |
| E4/1 | Inner right rear lamp unit | 112L |
| E4/1 | Inner right rear lamp unit | 115L |
| E4/1 | Inner right rear lamp unit | 118L |
| E4/1 | Inner right rear lamp unit | 117L |
| E40/2 | Left trunk lid/liftgate ambient lamp and warning lamp | 86L |
| E40/3 | Right trunk lid/liftgate ambient lamp and warning lamp | 85L |
| E43/34 | Left rear footwell illumination ambiance illumination (LED) | 146L |
| E43/35 | Right rear footwell illumination ambiance illumination (LED) | 146L |
| G1/3 | 48 V on-board electrical system battery | 103L |
| H4/134 | Sound generator 2 | 199L |
| H4/135 | Rear end sound generator | 107L |
| H4/16 | Sound generator | 105L |
| K40/5 | Rear fuse and relay module | 6L |
| K40/5 | Rear fuse and relay module | 205L |
| K40/5f476 | Fuse 476 | 9L |
| K40/5f477 | Fuse 477 | 4L |
| K40/5kT | Heated rear window relay | 203L |
| K40/5kU | 2nd seat row cup holder and power outlet relay | 204L |
| K40/5kX | 1st seat row/trunk refrigerator box and power outlet relay | 201L |
| LIN B28 | Heater LIN | 20K |
| LIN B28 | Heater LIN | 21K |
| LIN B28 | Heater LIN | 23K |
| M14/10 | Tank cap central locking actuator | 187L |
| M14/19 | Stowage compartment central locking actuator motor | 48L |
| M14/31 | Trunk lid locking element | 82L |
| M14/4 | Tailgate locking element | 84L |
| M24 | Rear window roller sun blind motor | 69L |
| M35/2 | Rear camera cover motor | 61L |
| M35/2 | Rear camera cover motor | 80L |
| M50/1 | Left cargo area cover actuator motor | 28L |
| M50/1 | Left cargo area cover actuator motor | 71L |

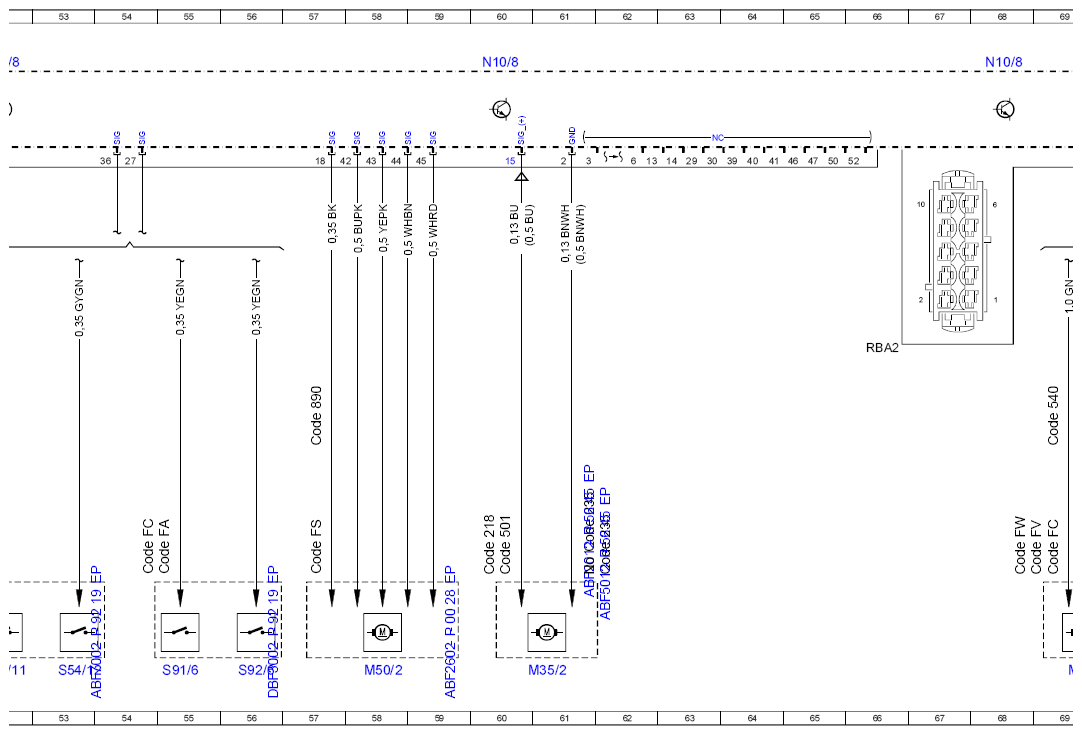

| M50/2 | Right cargo area cover actuator motor | 58L |
| M50/2 | Right cargo area cover actuator motor | 73L |
| M53/15 | Left rear backrest release actuator | 40L |
| M53/16 | Right rear backrest release actuator | 35L |

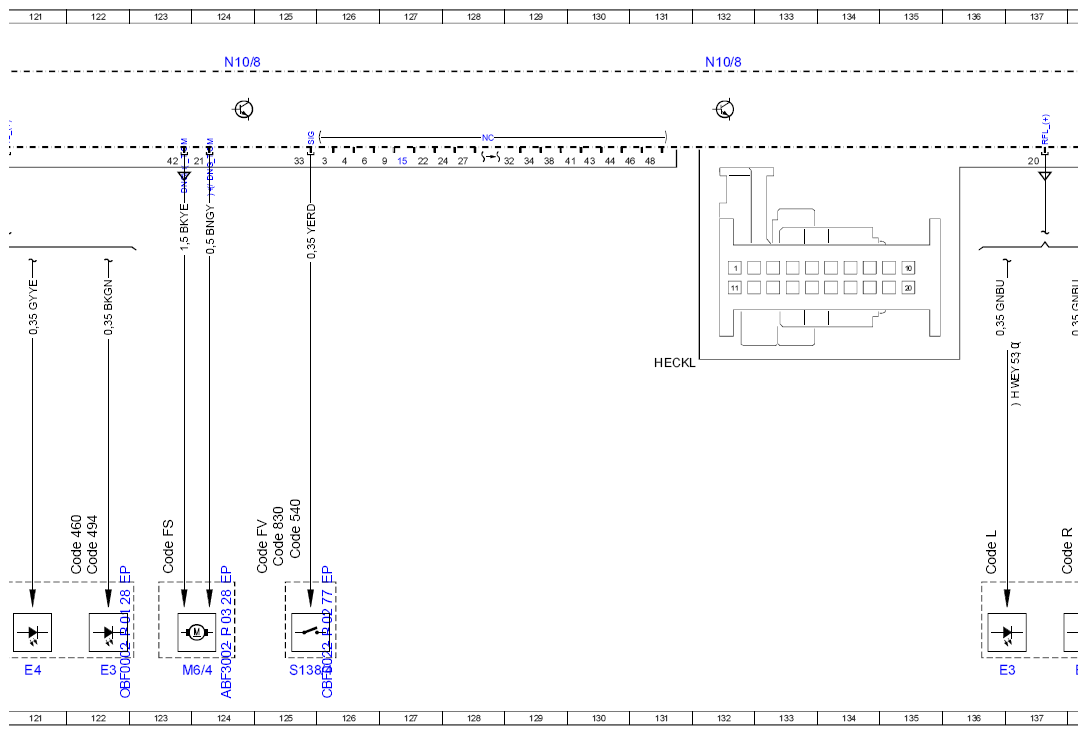

| M6/4 | Tailgate wiper motor | 123L |
| N10/6 | Front SAM control unit | 15L |

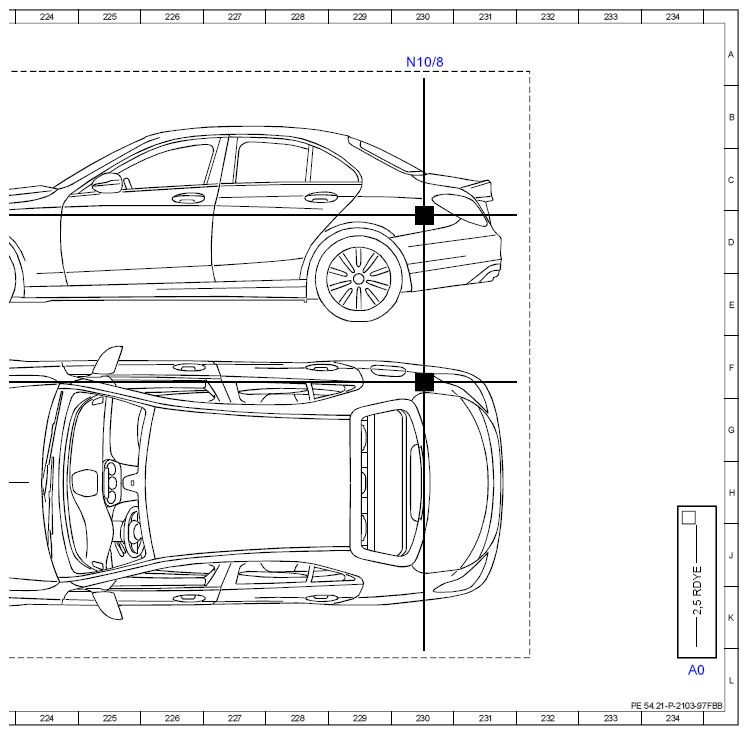

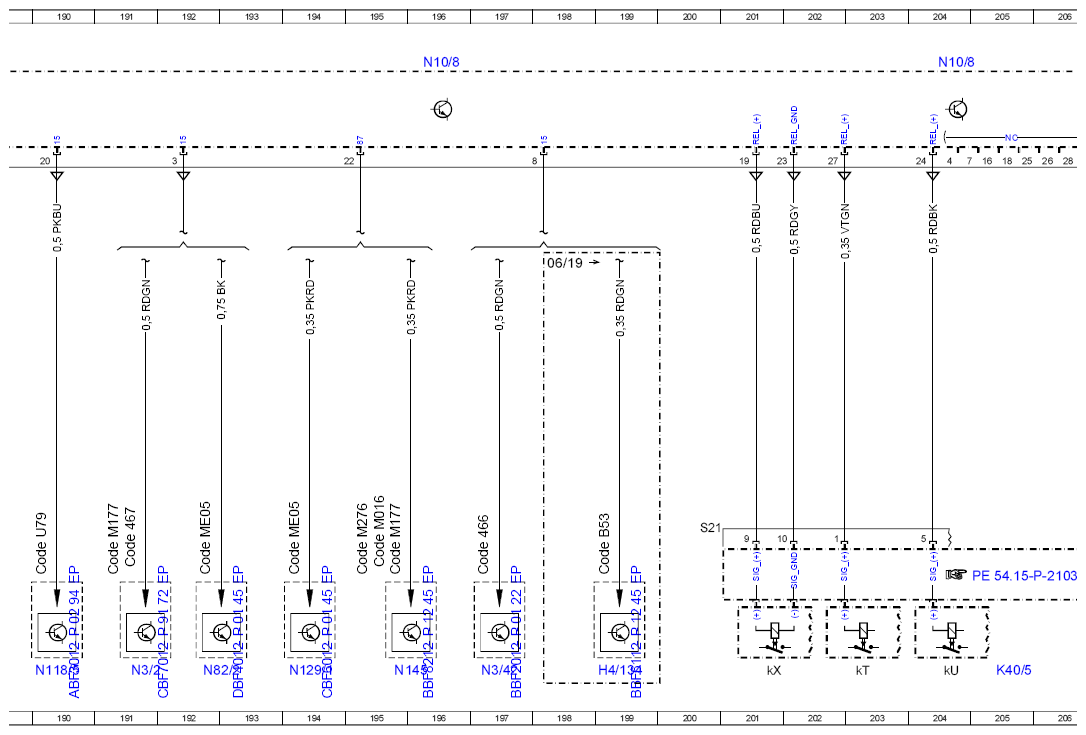

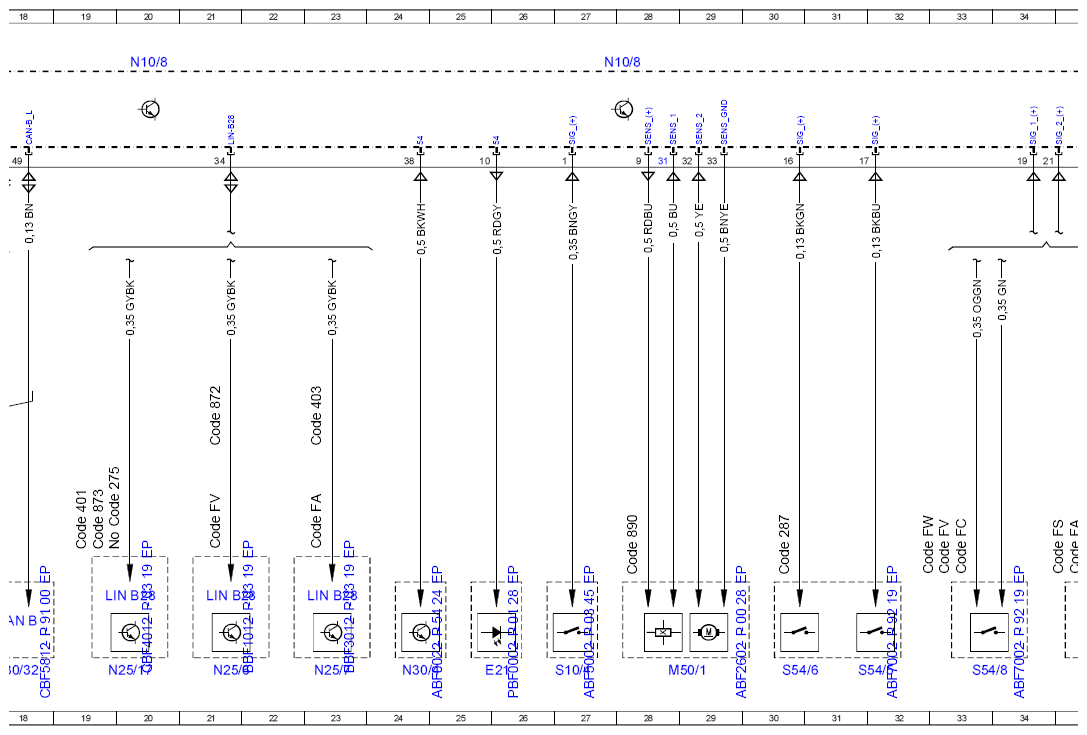

| N10/8 | Rear SAM control unit | 4A |
| N10/8 | Rear SAM control unit | 12A |
| N10/8 | Rear SAM control unit | 20A |
| N10/8 | Rear SAM control unit | 27A |
| N10/8 | Rear SAM control unit | 36A |
| N10/8 | Rear SAM control unit | 44A |
| N10/8 | Rear SAM control unit | 52A |
| N10/8 | Rear SAM control unit | 60A |
| N10/8 | Rear SAM control unit | 68A |
| N10/8 | Rear SAM control unit | 76A |
| N10/8 | Rear SAM control unit | 84A |
| N10/8 | Rear SAM control unit | 92A |
| N10/8 | Rear SAM control unit | 100A |
| N10/8 | Rear SAM control unit | 108A |
| N10/8 | Rear SAM control unit | 116A |
| N10/8 | Rear SAM control unit | 124A |
| N10/8 | Rear SAM control unit | 140A |
| N10/8 | Rear SAM control unit | 132A |
| N10/8 | Rear SAM control unit | 148A |
| N10/8 | Rear SAM control unit | 156A |
| N10/8 | Rear SAM control unit | 164A |
| N10/8 | Rear SAM control unit | 172A |
| N10/8 | Rear SAM control unit | 180A |
| N10/8 | Rear SAM control unit | 188A |
| N10/8 | Rear SAM control unit | 196A |
| N10/8 | Rear SAM control unit | 204A |
| N10/8 | Rear SAM control unit | 216A |
| N10/8 | Rear SAM control unit | 230A |
| N118 | Fuel pump control unit | 189L |
| N118/5 | AdBlue® control unit | 190L |
| N129/1 | Power electronics control unit | 194L |
| N145 | Transmission mode control unit | 195L |
| N25/17 | Front seat heater control unit | 20L |
| N25/6 | Rear seat heaters control unit | 21L |
| N25/7 | AIRSCARF control unit | 23L |

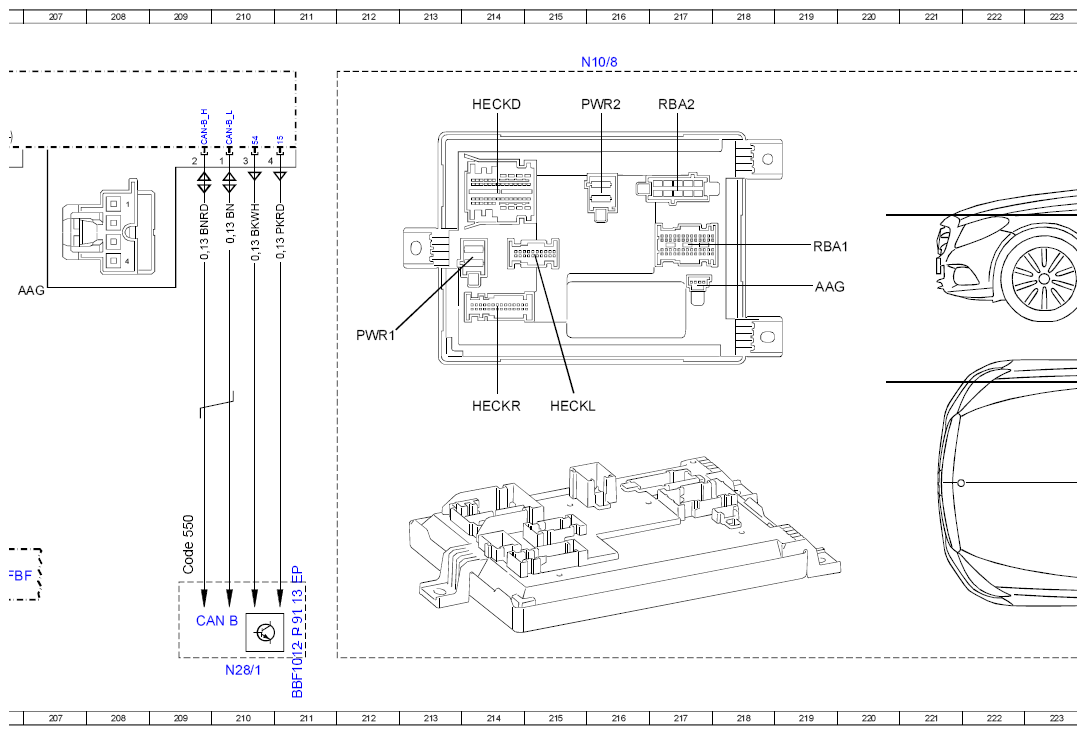

| N28/1 | Trailer recognition control unit | 210L |
| N3/2 | Electronic differential control unit | 191L |
| N3/42 | Active engine mounts control unit | 197L |
| N30/4 | Electronic Stability Program control unit | 24L |
| N82/2 | Battery management system control unit | 192L |
| S10/4 | Right rear brake wear sensor | 27L |
| S138/4 | Rear window roller sun blind button | 125L |
| S138/5 | Panoramic sliding sunroof roller sun blind button | 185L |
| S54/10 | Right luggage compartment rear backrest release button | 51L |

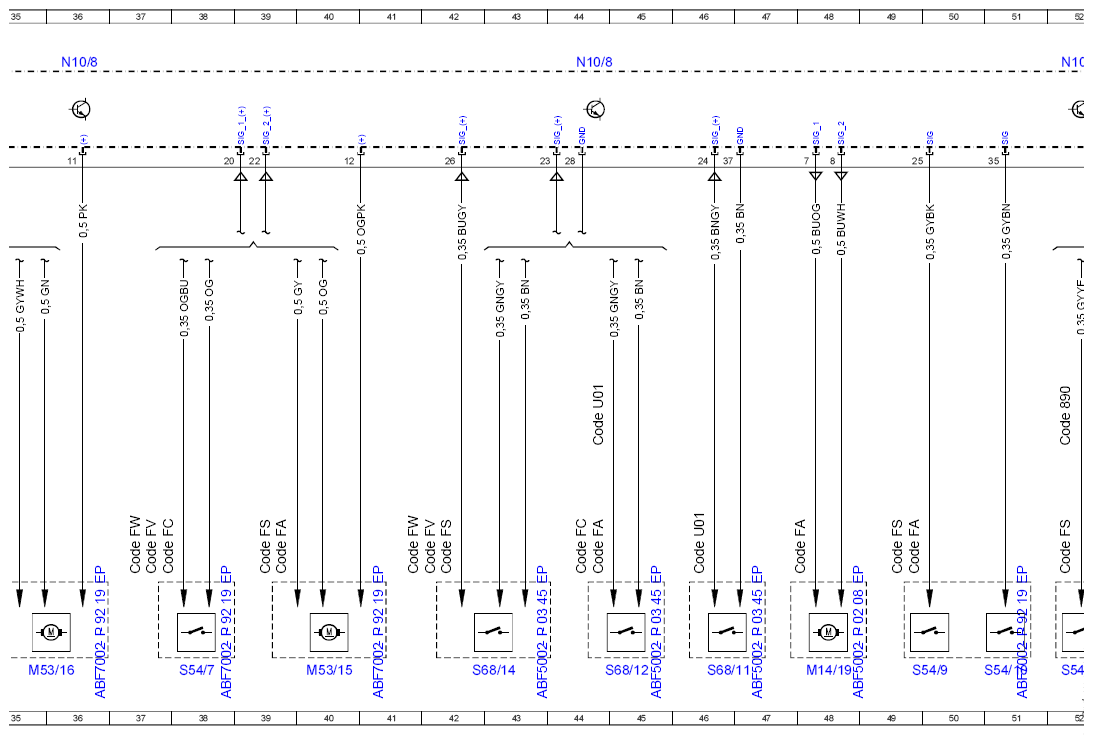

| S54/11 | Left rear backrest release button | 52L |
| S54/12 | Right rear backrest release button | 53L |
| S54/5 | Left rear backrest inclination switch | 32L |
| S54/6 | Right rear backrest inclination switch | 30L |
| S54/7 | Left rear backrest lock switch | 38L |
| S54/8 | Right rear backrest lock switch | 33L |
| S54/9 | Left luggage compartment rear backrest release button | 49L |
| S62/26 | Trunk lid/liftgate control button | 92L |
| S62/26 | Trunk lid/liftgate control button | 94L |
| S68/11 | Left rear seat belt buckle switch | 46L |
| S68/12 | Right rear seat belt buckle switch | 45L |
| S68/14 | Center rear seat belt buckle switch | 42L |
| S88/10 | Trunk lid emergency opening switch | 96L |
| S88/8 | Trunk lid/liftgate external operation switch | 111L |
| S91/6 | Left backrest release/inclination microswitch | 55L |
| S92/6 | Right backrest release/inclination microswitch | 56L |

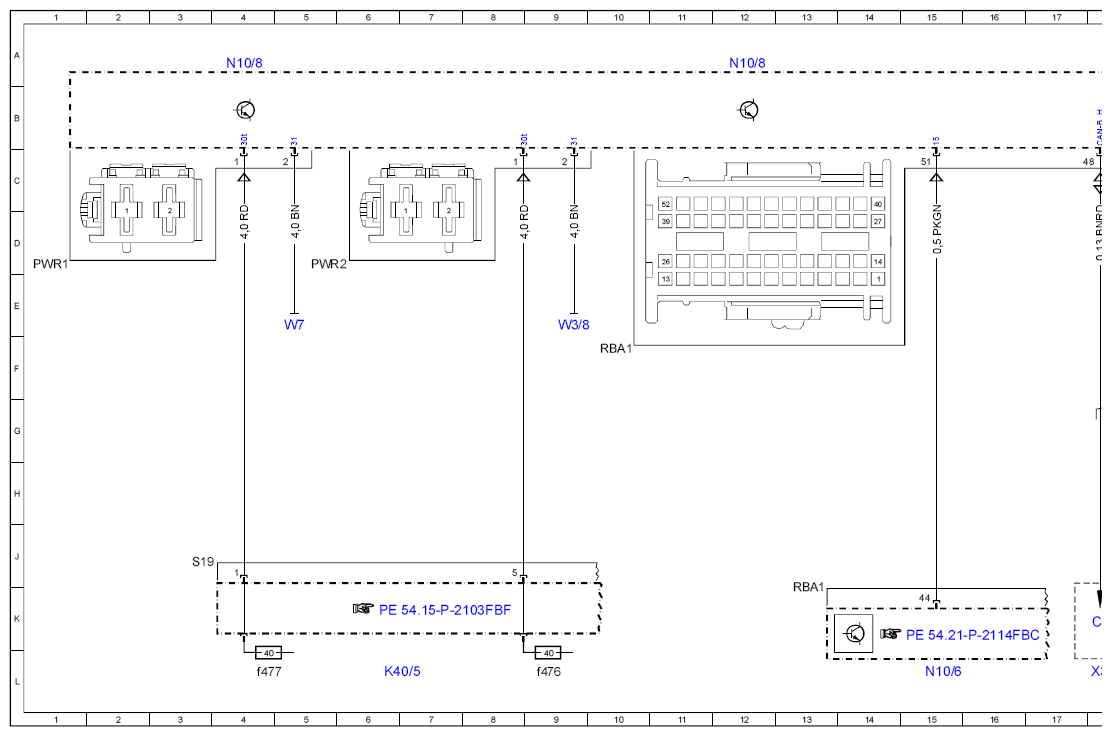

| W3/8 | Right rear wheel well ground point | 9E |
| W52/5 | Left center longitudinal member ground point | 150H |
| W52/6 | Right center longitudinal member ground point | 153H |
| W7 | Right wheelhouse trunk ground point | 5E |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 18L |
| X6/4 | Driver footwell lamp electrical connector | 151L |
| X6/5 | Front passenger footwell lamp electrical connector | 154L |
| Z54/7z1 | Footwell illumination connector sleeve | 149G |
