(4MATIC Front Axle Transmission, Function - GF33.10-P-3000AVF)

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 205 with TRANSMISSION 722.961/965

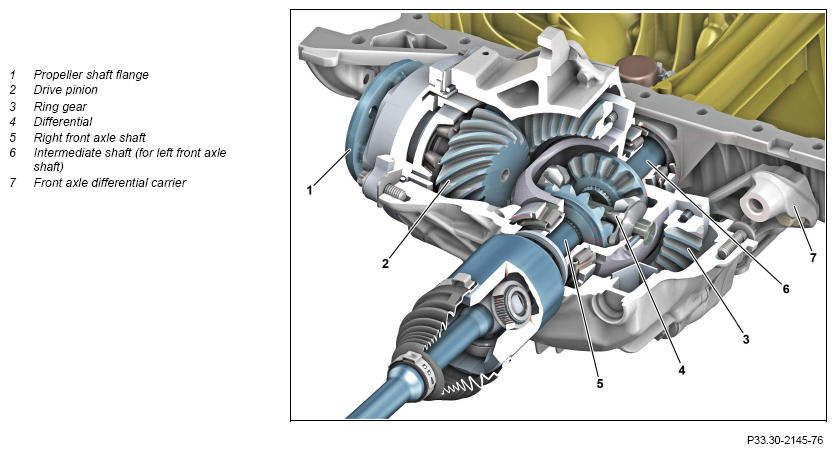

Sectional view of front axle transmission

Courtesy of MERCEDES-BENZ USA

Front axle transmission 4MATIC, general

The front axle transmission is designed as a single-speed differential with fuel-efficient technology (fuel economy). The housing of the front axle transmission is made of aluminum and bolted to the oil pan by means of a carrier (7). The drive pinion (2) is at an angle of 83° to the ring gear (3) so as to adjust the angular course of the propeller shaft relative to the front axle transmission. The ring gear (3) is attached on the engine side and bolted to the differential cage of the differential (4). This location of components of the front axle transmission causes the change in direction of rotation, which occurs due to the single-speed output in the transfer case, to reverse again.

Overview of system components, automatically controlled all-wheel drive (4MATIC)

GF28.00-P-9998AVF
