Test Brake System With Pressure Tester For Leaks - AR42.10-P-0015LW
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
Model 213
Model 253

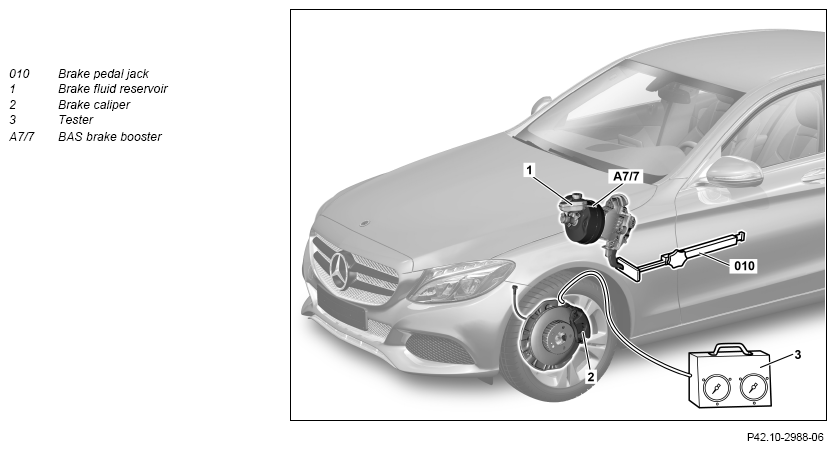

Shown on model 205
| Risk of accident
from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| Risk of poisoning
from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid |
Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Notes on externally invisible brake fluid loss | AH42.10-P-9406-02A | ||
| Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | ||
| Notes on handling, transport and storage of ceramic brake disks | AH42.10-P-9406-13A | ||
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Check | |||
| 1 | Remove cover over brake fluid reservoir (1) | ||
| 2 | Clean area around cap of brake fluid reservoir (1) | Assembly cleaner | *BR00.45-Z-1028-04A |
| 3 | Unscrew cap of brake fluid reservoir (1) | ||
| 4 | Connect filling unit to brake fluid reservoir (1) | ||
| 000 588 01 82 00 Filling unit | WS25.00-P-0016B | ||
| Brake fluids (DOT 4 plus) | BB00.40-P-0331-00A | ||
| General brake fluid | BB00.40-P-0330-01A | ||
| 5 | Raise vehicle | AR00.60-P-1002LWG | |
| 6 | Remove bleed screw from left front brake caliper (2) and connect test equipment (3) | ||
| 000 588 07 21 00 Test equipment | WS42.00-P-0014B | ||
Otherwise, the brake fluid will be mixed with mineral oil, which can cause brake failure. |
|||
| 7 | Vent test equipment (3) | ||
| 8 | Start engine and run | ||
| 9 | Cover up brake pedal and driver's seat in brake pedal jack (010) system area | ||
| 10 | Depress brake pedal and insert brake pedal jack (010) with adapter between brake pedal and driver's seat | Fig 1 | |
| Fig 2 | |||
| 11 | Read off and note brake pressure on high-pressure gauge of test equipment (3) | ||
| 12 | Read off brake pressure again after the specified test period on the test equipment's (3) high-pressure manometer and compare against previously-noted value | Check values for leak test If brake-pressure loss is too high ↓ Determine leakage in brake system and repair brake system. |
*BE42.10-P-1001-19A |
| 13 | Switch off engine and remove brake pedal jack (010) with adapter | ||
| 14 | Reduce vacuum in BAS brake booster (A7/7) by depressing brake pedal several times | ||
| 15 | Depress brake pedal and insert brake pedal jack (010) with adapter between brake pedal and driver's seat | Fig 1 | |
| Fig 2 | |||
| 16 | Slowly move brake pedal jack (010) back until low-pressure manometer on test equipment (3) shows specified brake pressure | Check values for leak test | *BE42.10-P-1001-19A |
| 17 | Read off brake pressure after specified test period on test equipments (3) low-pressure manometer | Check values for leak test In event of brake pressure loss ↓ Determine leakage in brake system and repair brake system. |
*BE42.10-P-1001-19A |
| 18 | Remove brake pedal jack (010) and adapter | ||
| 19 | Disconnect test equipment (3) from brake caliper (2) and screw vent screw all the way into brake caliper (2) | ||
| 20 | Vent left, front brake caliper (2) | Model 205 Model 253 |
AR42.10-P-0010-02LW |
| Model 213 | AR42.10-P-0010-02LWE | ||
Model 253 Bleed screw at brake caliper |
*BA42.10-P-1003-10W | ||
| BA42.10-P-1003-10X | |||
| 21 | Disconnect filling unit from brake fluid reservoir (1) | ||
| 22 | Correct fluid level in brake fluid reservoir (1) | ||
| Model 205 | AP42.10-P-4210CAA | ||
| Model 213, 253 | AP42.10-P-4210B | ||
| 23 | Screw cap onto brake fluid reservoir (1) | ||
| 24 | Install cover over brake fluid reservoir (1) |
HYDRAULIC BRAKE SYSTEM
| Number | Designation | Model 205 | Model 213 | |||
|---|---|---|---|---|---|---|
| BE42.10-P-1001-19A | Check values for leak test | High-pressure test | Test period | min | 5 | 5 |
| Brake pressure loss | % | 5 | 5 | |||
| Low-pressure test | Brake pressure | bar | 3 | 3 | ||
| Test period | min | 2 | 2 | |||
| Brake pressure loss | bar | 0 | 0 | |||
HYDRAULIC BRAKE SYSTEM
| Number | Designation | Model 253 | |||
|---|---|---|---|---|---|
| BE42.10-P-1001-19A | Check values for leak test | High-pressure test | Test period | min | 5 |
| Brake pressure loss | % | 5 | |||
| Low-pressure test | Brake pressure | bar | 3 | ||
| Test period | min | 2 | |||
| Brake pressure loss | bar | 0 | |||
FRONT AXLE BRAKE CALIPER
| Number | Designation | Model 205 | Model 253 | |
|---|---|---|---|---|
| BA42.10-P-1003-10W | Bleed screw at brake caliper | Nm | 18 | 14 |
FRONT AXLE BRAKE CALIPER
| Number | Designation | Model 213 (except 213.061/261) | Model 213.061/261 | |
|---|---|---|---|---|
| BA42.10-P-1003-10X | Bleed screw at brake caliper | Nm | 14 | 14 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | Adolf Wurth GmbH & Co. KG |
