Traction System Hydraulic Unit, Basic Function - GF42.50-P-2000A

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model all (CAR)

Shown on model 177.0

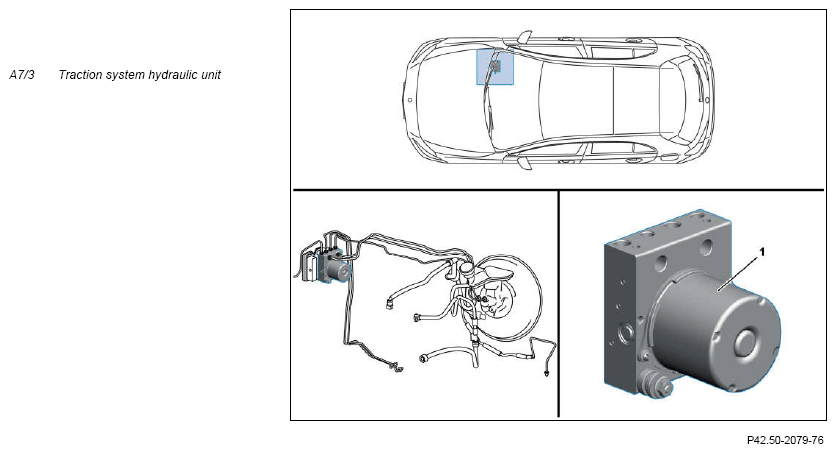

Fig 1: Traction System Hydraulic Unit Components Location - Model 205; Shown on model 177.0
G12939337Courtesy of MERCEDES-BENZ USA

Overview

This document contains information on:

Location

The traction system hydraulic unit is located in the right front of the engine compartment between the firewall and a heat shield.

Task

The shifting components for the following vehicle dynamics control systems are integrated into the traction system hydraulic unit:

Traction system hydraulic unit

The functions of the following components in the hydraulic unit traction system are individually described:

High pressure and return pump

The self-priming high-pressure and return flow pump integrated into the traction system hydraulic unit has the following tasks:

Front axle and rear axle switchover valves

The switchover valves block the active high-pressure circuit in each case during ASR and ESP® control interventions against the master brake cylinder. They are designed simultaneously as pressure limiting valves and open at pressures above 150 bar. The brake fluid flowing away via the switchover valves is routed back to the master brake cylinder.

Suction ball valves for front axle and rear axle

The suction ball valves are opened during an ASR or ESP® pressure buildup phase. They allow brake fluid to flow from the hydraulic fluid reservoir through the high-pressure and return flow pump into the corresponding brake calipers.

Pressure regulating valve, hold pressure

For pressure control, one 2/2-way valve is used for each wheel for the functions of pressure buildup and holding pressure in the ABS, ASR and ESP® control mode.

The pressure regulating valves are open deenergized. If the ABS function fails, the driver can build up brake pressure in the system using pedal force which affects the master brake cylinder via the brake pedal.

Pressure regulating valve, reduce pressure  For pressure control, one 2/2-way valve is used for each wheel for the functions of pressure holding and pressure reduction in the ABS, ASR and ESP® control mode.

The pressure regulating valves are closed deenergized. This occurs, for example, during an ABS braking procedure, when a wheel shows a tendency to lock.

IMPORTANT The pressure regulating valves, reduce pressure are not actuated in closed condition.

Front axle brake pressure sensor

The front axle brake pressure sensor measures the set brake pressure (master brake cylinder pressure) as required by the driver.

Front and rear pressure sensor

The pressure sensors have the following tasks:

Diaphragm pulsation damper

In order to reduce the movement noise and dampen a pulsing brake pedal, diaphragm pulsation dampers are installed for each brake circuit.

Low pressure reservoir

The low pressure reservoirs take up the brake fluid during the ABS/ASR or ESP® depressurization phase and supply it to the high pressure/return flow pump.
