Overview Of System Components For Electric Parking Brake - GF42.20-P-9998RF
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205, 253

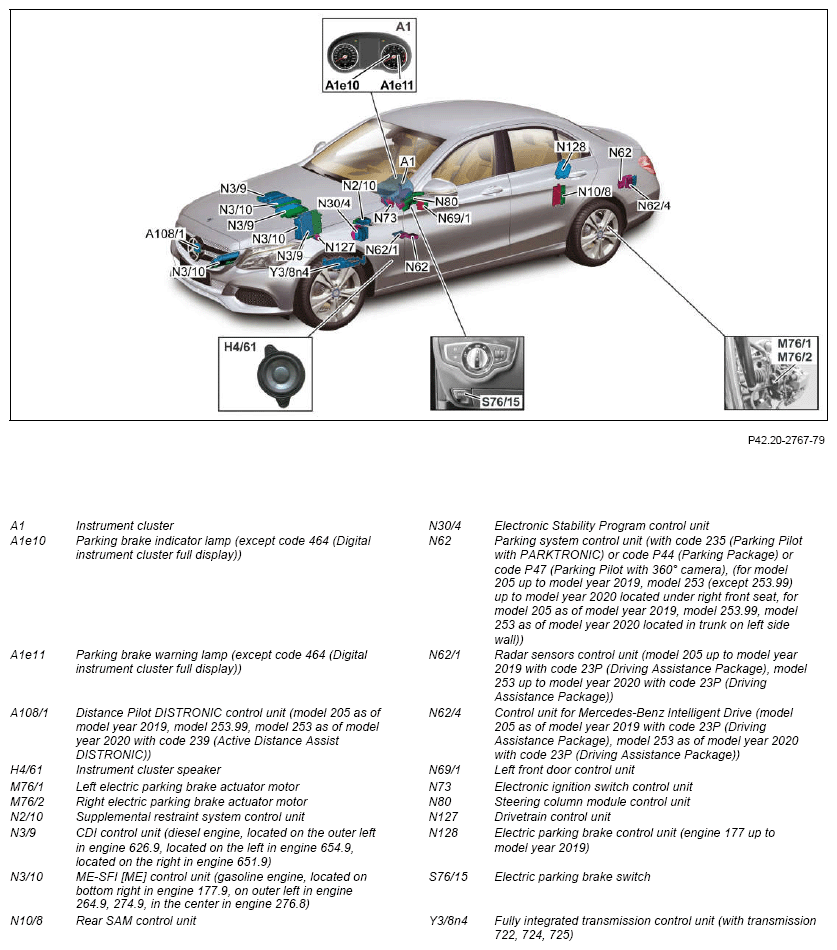

Shown on model 205.0
Model 205, 253
with code 464 (Full display digital instrument cluster)
The indicator and warning lamps are shown as pictograms in the display.
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| DISTRONIC Distance-Pilot controller unit, component description | Model 205 as of model year 2019 with code 239 (Active Distance Assist DISTRONIC) Model 253.99 with code 239 (Active Distance Assist DISTRONIC) A108/1 |
GF30.30-P-3218RFM | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF | |
| Component description for CDI control unit | Model 205.012/212 with engine 651.9 N3/9 |
GF07.16-P-6000OLC | |
| Model 205 (except 205.012/212) with engine 651.9 with code 494 (US version) Model 253 with engine 651.9 N3/9 |
GF07.16-P-6000OLD | ||
| Model 205 (except 205.012/212) with engine 651 except code 494 (US version) N3/9 |
GF07.16-P-6000OLE | ||
| Model 205 with engine 626 N3/9 |
GF07.16-P-6000ORB | ||
| Model 253 with engine 642.8 N3/9 |
GF07.16-P-6000OGY | ||
| Model 205 (except 205.013/213), 253 (except 253.311/911) with engine 654.9 Model 253 with engine 656.9 N3/9 |
GF07.16-P-6000ORF | ||
| Model 205.013/213, 253.311/911 with engine 654.9 N3/9 |
GF07.16-P-6000ORH | ||
| Component description for ME-SFI (ME) control unit | Model 205, 253 with engine 177.9 N3/10 |
GF07.61-P-6000MNA | |
| Model 205 (except 205.047/053/054/147/247/253), 253 (except 253.354/954) with engine 274.9 N3/10 |
GF07.61-P-6000MRA | ||
| Model 205.047/053/054/147/247/253 with engine 274.9 Model 253.354/954 with engine 274.9 N3/10 |
GF07.61-P-6000MRH | ||
| Model 205, 253 with engine 264.9 N3/10 |
GF07.61-P-6000MRS | ||
| Model 205, 253 with engine 276.8 N3/10 |
GF07.61-P-6000MMV | ||
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030RF | |
| Component description for Electronic Stability Program control unit | Model 205 (except 205.012/013/047/053/054/147/212/213/247/253), 253 (except 253.354/954/99) | GF42.45-P-5119RF | |
| Model 205.012/013/047/053/054/147/212/213/247/253, 253.354/954/99 N30/4 |
GF42.45-P-5119RFH | ||
| Parking system control unit component description | Model 205 up to model year 2019 with code 235 (Parking Pilot with PARKTRONIC) Model 253 (except 253.99) up to model year 2020 with code 235 (Parking Pilot with PARKTRONIC) N62 |
GF54.65-P-5002RF | |
| Parking system control unit, component description | Model 205 as of model year 2019 with code P44 (Parking package) Model 205 as of model year 2019 with code P47 (Parking Pilot with 360° camera) Model 253 (except 253.99) as of model year 2020 with code P44 (Parking package) Model 253 (except 253.99) as of model year 2020 with code P47 (Parking Pilot with 360° camera) Model 253.99 with code P47 (Parking Pilot with 360° camera) N62 |
GF54.65-P-5004RFM | |
| Component description for radar sensors control unit | Model 205 up to model year 2019 with code 23P (Driving Assistance package) Model 253 up to model year 2020 with code 23P (Driving Assistance package) N62/1 |
GF30.30-P-3301RF | |
| Mercedes-Benz Intelligent Drive control unit, component description | Model 205 as of model year 2019 with code 23P (Driving Assistance package) Model 253 (except 253.99) as of model year 2020 with code 23P (Driving Assistance package) N62/4 |
GF30.30-P-3312RFM | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |
| Component description for the electronic ignition lock control unit | Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020 N73 |
GF80.57-P-6001RF | |
| Model 205 as of model year 2019 Model 253 (except 253.99) as of model year 2020 Model 253.99 N73 |
GF80.57-P-6001RFM | ||
| Component description for steering column tube module control unit | Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020 N80 |
GF54.21-P-6051RF | |
| Model 205 as of model year 2019 Model 253 (except 253.99) as of model year 2020 Model 253.99 N80 |
GF54.21-P-6051RFM | ||
| Drivetrain control unit, component description | Model 205, 253 with engine 177.9 N127 |
GF54.21-P-2141MNA | |
| Model 205, 253 with engine 264.9 N127 |
GF54.21-P-2141MRS | ||
| Model 205 (except 205.047/053/054/147/247/253), 253 (except 253.354/954) with engine 274.9 N127 |
GF54.21-P-2141MRA | ||
| Model 205.047/053/054/147/247/253, 253.354/954 with engine 274.9 N127 |
GF54.21-P-2141MRH | ||
| Model 205, 253 with engine 276.8 N127 |
GF54.21-P-2141RF | ||
| Model 205 with engine 626 N127 |
GF54.21-P-2141ORB | ||
| Model 205.012/212 with engine 651.9 N127 |
GF54.21-P-2141OLC | ||
| Model 205 (except 205.012/212) with engine 651.9 Model 253 with engine 642.8, 651.9 N127 |
GF54.21-P-2141OLD | ||
| Model 205, 253 with engine 654.9 Model 253 with engine 656.9 N127 |
GF54.21-P-2141ORH | ||
| Electric parking brake control unit, component description | Model 205, 253 with engine 177 up to model year 2019 N128 |
GF42.20-P-5005RF | |
| Component description for fully integrated transmission control unit | Model 205 with transmission 722.9 (except 722.930) Y38n4 |
GF27.60-P-5165AHE | |
| Model 205 with transmission 722.930 Y38n4 |
GF27.60-P-5165AIA | ||
| Model 205, 253 with transmission 724.2 Y38n4 |
GF27.60-P-5165RFH | ||
| Model 205 with transmission 725.0 (except 725.017) Y38n4 |
GF27.60-P-5165ANG | ||
| Model 205 with transmission 725.017 Y38n4 |
GF27.60-P-5165AHH | ||
| Model 253 with transmission 725.0 Y38n4 |
GF27.60-P-5165ANI | ||
| Table of contents for function description, electric parking brake | GF42.20-P-0999RF |
