Brake Light Switch, Basic Function - GF42.10-P-2001A
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model all (CAR)
Shown on model 177.0
Overview
This document contains information on:
- Location
- Function
Location

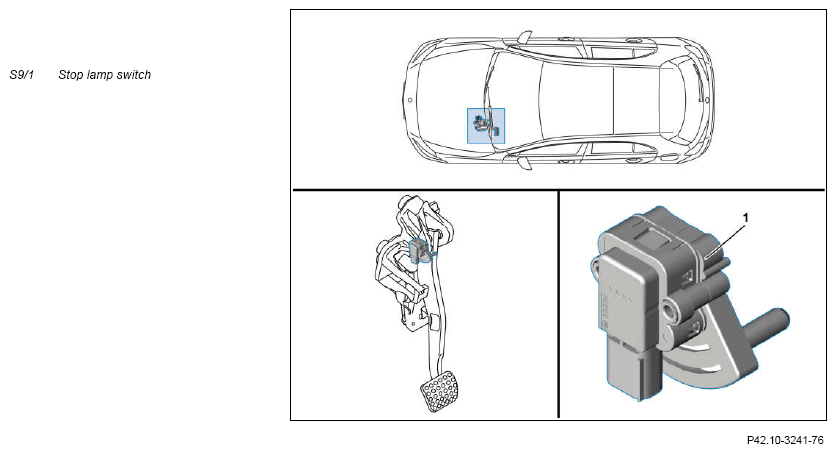

The brake light switch is located to the left of the brake pedal.
Function
The brake light switch consists of a shaft with ring magnet. The ring magnet rotates in a printed circuit board with stator in two fixed Hall elements. This produces a change in the voltage. The information about the brake pedal position is routed to the Electronic Stability Program control unit in the form of two signal voltages.
